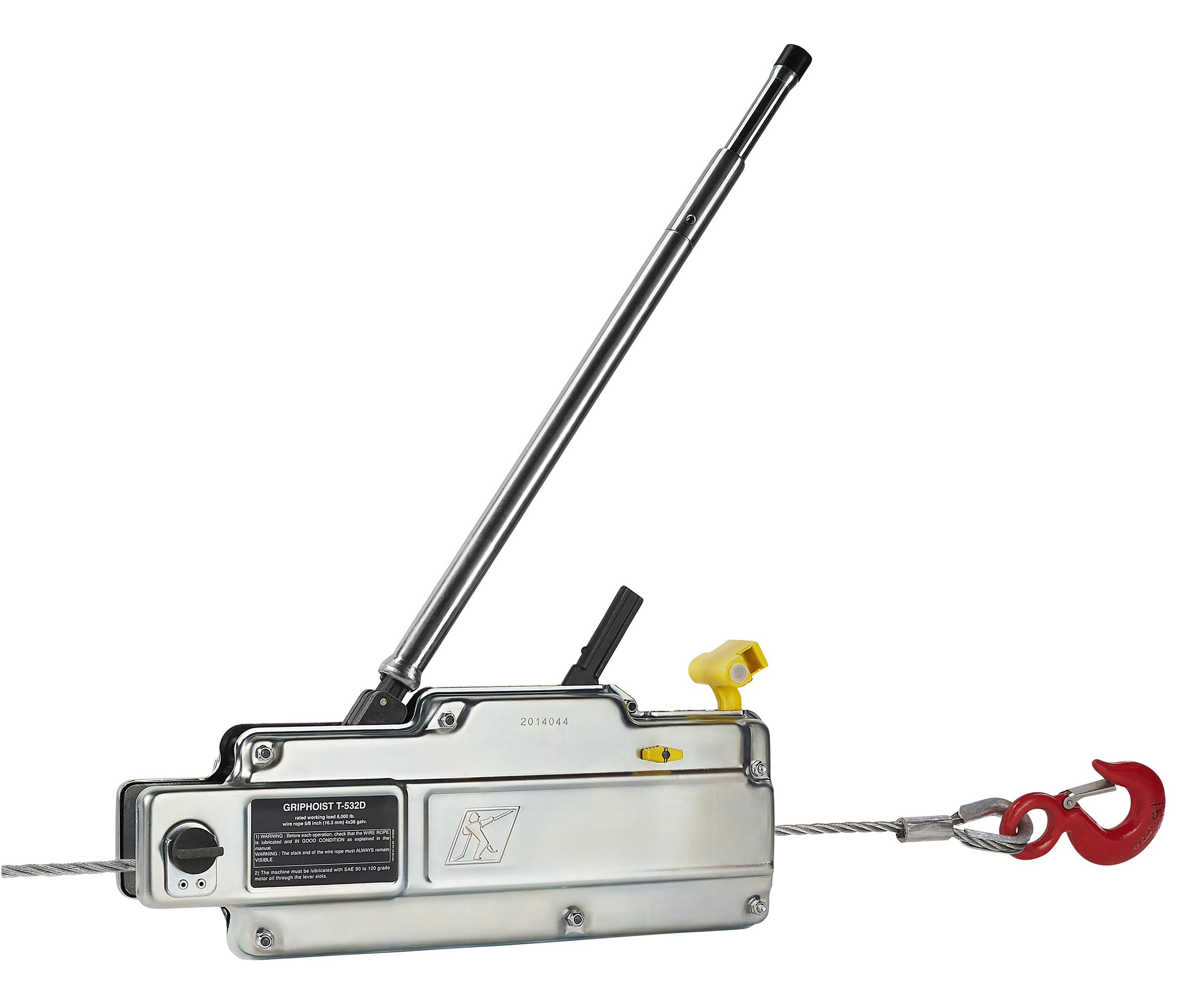

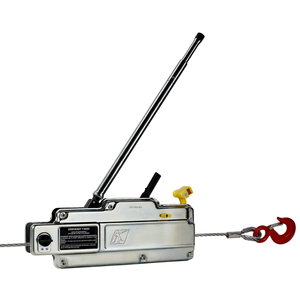

Tractel Griphoist / Tirfor T532D Manual Wire Rope Hoist – 8,000 lb Capacity, 150 ft (45 m) Assembly

Product Description

The Tractel Griphoist / Tirfor T532D, equipped with a 150 ft (45 m) wire rope assembly, is the powerhouse of the Griphoist line, designed for the toughest lifting, pulling, and tensioning applications. With a nominal capacity of 8,000 lb, this unit provides exceptional performance for heavy construction, structural steel erection, industrial rigging, utilities, and emergency response operations.

The T532D uses a continuous pass-through wire rope system, allowing unlimited working distances beyond the included 150 ft assembly. Operators can use it horizontally, vertically, or at an angle, depending on the application. Its self-gripping dual-jaw mechanism secures the rope automatically at every pause, ensuring safe and precise load control.

A telescopic operating lever provides users with a high mechanical advantage, enabling one person to move or lift significant loads safely. Built-in shear pins that act as overload protection, safeguarding both the operator and the hoist. Despite its high capacity, the hoist is compact and portable, making it the best choice for demanding job sites where heavy-duty manual power is required.

Engineered for strength, durability, and a long service life, the Griphoist / Tirfor T532D–150 ft assembly is the trusted solution when nothing less than maximum manual lifting power is required.

Key Specifications

• Model / SKU: 03309912430K
• Type: Griphoist / Tirfor T532D
• Nominal Capacity: 8,000 lb (3.6 t)
• Wire Rope Diameter: 5/8 in (16.3 mm)
• Wire Rope Length: 150 ft (45 m) assembly included
• Unit Weight (hoist body): 51 lb (24 kg)
• Wire Rope Weight (30 ft): 8 lb (3.5 kg)
• Effort on Lever (Forward): 105.8 lb (48 kg)
• Effort on Lever (Reverse): 7.5 lb (3.4 kg)
• Rope Travel per Forward Stroke: 11/16 in (18 mm)
• Rope Travel per Reverse Stroke: 1-3/8 in (36 mm)
• Minimum Wire Rope Breaking Strength: 40,000 lb (18,000 kg)
• Safety Factor: 4:1 (material handling applications)
• Operation: Horizontal, vertical, or angled pulling and lifting
• Safety Features: Dual jaw load-holding system; overload shear pins
• Compliance: Meets ASME B30.21 standards
