Product Overview
The Tractel Derope w/Ladder Bracket is a safe, reliable kit for rescue and descent operations. It includes a rescue wheel, carrying bag, ladder bracket, two carabiners, an anchor sling, a tbar, and edge roller. Perfectly suited for professional rescue workers or climbers, this kit allows safe, efficient operations at height.

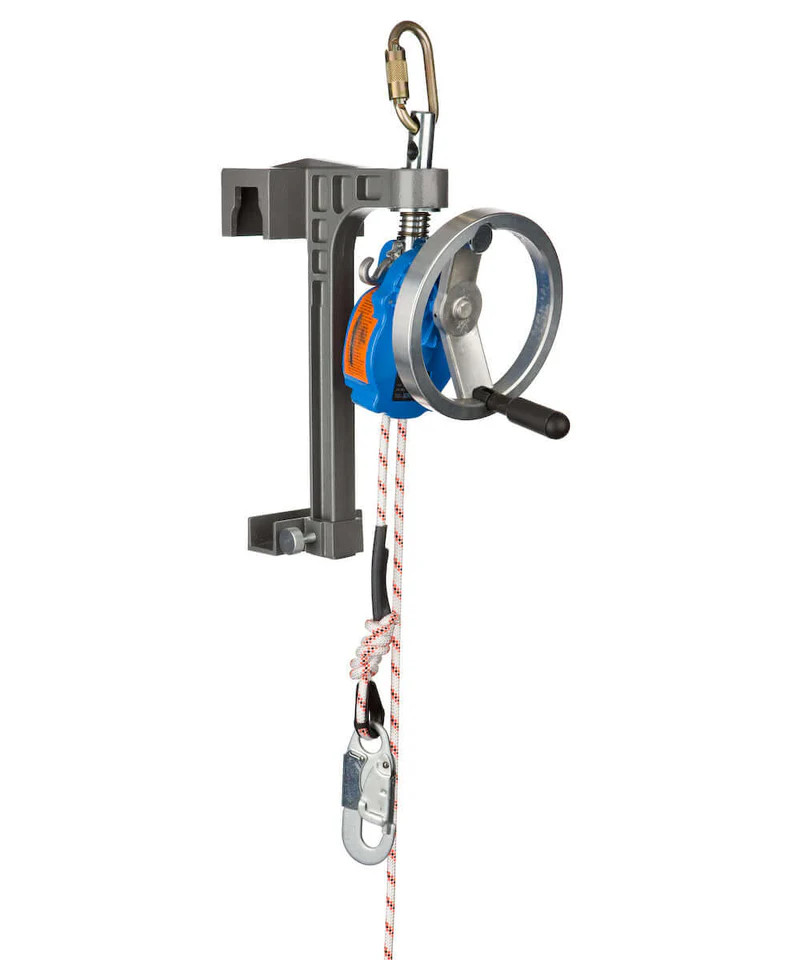

- Derope® descent device unit with mounted ladder adapter
- Bracket enables the user to secure the Derope® on ladder rungs
- Gives ability to winch a person
- Includes: Adjustable anchor lanyard w/2 carabiners, Edge roller, T-bar, Rescue bag
Features:
- Easy to use
- Constant decent speed one person
- 235 feet per minute
- Constant decent speed two people
- 295 feet per minute
- Complies with:
- ANSI Z359.4-07
- CSA Z259.2.3, type 1E
Kit Includes:
- 6 Foot Vinyl-covered wire rope sling
- 3/4 inch autolocking carabiner
- J-knife
- Choice of Length
- Choice of Ladder Bracket
- Rescue/rope bag
The Tractel Derope emergency escape/controlled descent device enables the evacuation of one or two persons from an elevated position to a lower level or the ground at a controlled speed of 235 ft./min. (72 m/min.).
The Tractel Derope descent device can also be used for one man or two-man rescue operations. Victims can be lowered alone or accompanied by the rescuer following the standard procedures for rescue applications. If obstructions or obstacles prevent a vertical evacuation, the operation can be carried out down a cableway or tagline positioned at an angle between 30º and 60º.
The model incorporates a hand wheel winch mounted on to the base unit which allows the Tractel Derope descent device to be used as a lifting device. With a lift ratio of roughly 2:1, the winch is capable of lifting a victim in order to release it from its fall protection sub-system.
Category | Specifications |
---|---|
Standards | ANSI Z359.4-07 and CSA Z259.2.3, type 1E |
Max Height for Single Descent | 1 person - 1,300 ft (400 m), 2 people - 650 ft (200 m) |
Speed of Descent | 1 person - 235 ft/min (72 m/min), 2 people - 295 ft/min (90 m/min) |
Temperature | -31 to 122° F (-35 to 50° C) |
Construction | Housing: aluminum casting, Internal Parts: heat-treated steel |
Max. Number of Persons | 2 |
Rope Size | 3/8" (9.5mm) Tractel Ltd Super Dry Kernmantle |
Temperature | -35 °C - +60 °C |
Available Options:
- 200 feet, no ladder bracket (TR-KT7200/AK)
- 300 feet, no ladder bracket (TR-KT7300/AK)
- 300 feet, ladder bracket (TR-KT7300/WKE)
- 330 feet, ladder bracket (TR-KT7330/WKE)
