Product Overview

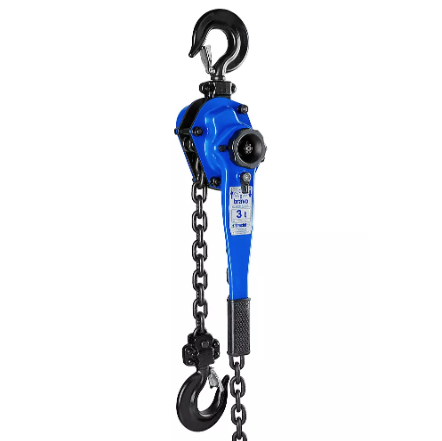

The bravo™ lever hoist is ideal for industrial and building/civil engineering applications. It is designed for pulling, lifting, positioning and adjusting loads in workshops and/or building sites.
Suitable for a wide variety of lifting, pulling and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor.
The bravo™ is a rugged, quality built hoist designed for reliable operations even in the toughest conditions.
BENEFITS
- Easy operation with simple controls
- Compact and lightweight
- Excellent weight / capacity / size ratio
- Minimum effort to lift maximum load
FEATURES
- Working Load Limit: 6,000 lbs. / 3 Ton
- Lengths Available: 5, 10, 15, 20, 30 Feet Lift
- Load Chain Size : 10 x 30 mm
- Number of Falls: 1
- Effort on lever at capacity: 73 lbs. / 33 kg
- 360° swivel hook with overload opening indicators
- Removable large-opening swivel hook with large latch marked with working load limit of the hoist
- Five sprocket load wheel with closed bearings
- Free wheel safety device activates braking mechanism when load applied in neutral position
- The hoist and its components are made of high tensile alloy steel
- Anti-corrosion treated lifting and handling line
- Operates in temperatures between -40 and 140°F (-40 and 60°C)
- Wind-through chain system for fast hook positioning
- Automatic brake with double ratchet
STANDARDS
- Meets or exceeds ANSI/ASME B30.21C, Manually Lever-Operated Hoist code.
- Load chain manufactured in accordance with ISO T
