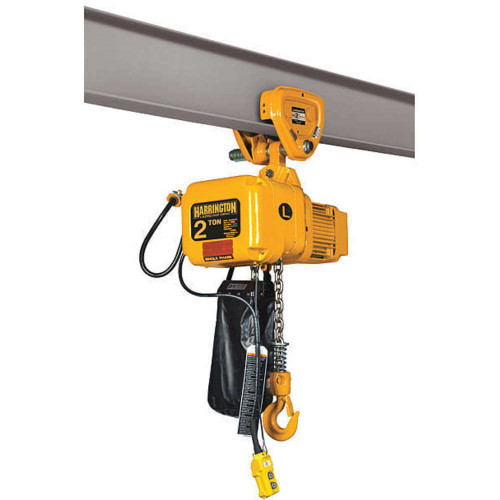

SNERP Electric Chain Hoist with Push Trolley Lift-Capacity 2 Tons SNERP020L Electric Chain Hoist with Push Trolley HARRINGTON

Write a Review
$4,940.40 - $5,322.62
SKU: SNERP020L-10
Condition: New
Availability: In stock
Weight: 209.00 LBS
Shipping: Free Shipping
Hoist Lift: 10, 15, 20
Product: Electric Chain Hoist, 4,000 lb, Push Trolley Hoist Mount Push Trolley
Includes: Chain Container,, Push Trolley
Lift Speed: 7 fpm
Housing Width: 16 1/2 in
Manufacturers Warranty Length: 1 yr
Housing Depth: 8 5/16 in
Housing Length: 26 7/8 in
For Minimum Beam Flange Width: 3 1/4 in
For Maximum Beam Flange Width: 6 1/32 in
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 16 1/2 in
Body Depth: 8 5/16 in
For Minimum Beam Height: 6 in
Body Length: 26 7/8 in
Minimum Radius Curve: 59 3/32 in
Maximum Lifting Length: 10 ft
Controller Cord Length: 6 ft
Trolley Wheel Diameter: 5 in
Lifting Hook Opening Width: 1 1/2 in
Minimum Retracted Length: 24 19/32 in
Load Capacity: 4,000 lb
Minimum Between Hooks: 22 1/4 in
Motor HP: 1.2 hp
Phase: 1
Standards: ANSI/ASME B30.16, ASME HST-1M
Voltage: 115/230V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Item: Electric Chain Hoist
Reeving: 1
Thermal Protection: Option
Control Cord: 6 ft
Amps @ Low Volts: 23.9 A
Number of Speeds: 1
Trolley Configuration: Push Trolley
Trolley Speed: Not Applicable
Features: Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Material: Die Cast Aluminum
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: Pull Rotor
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 7 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Push Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 22 3/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 4,000 lb
Current at Minimum Voltage: 23.9 A
Trolley Wheel Material: Steel
Current at Maximum Voltage: 0
Body Finish: Enamel
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
SNERP Electric Chain Hoist with Push Trolley Lift-Capacity 2 Tons SNERP020L Electric Chain Hoist with Push Trolley HARRINGTON

SNERP Electric Chain Hoist with Push Trolley Lift-Capacity 2 Tons SNERP020L Electric Chain Hoist with Push Trolley HARRINGTON

$4,940.40 - $5,322.62

SNERP Electric Chain Hoist with Push Trolley Lift-Capacity 2 Tons SNERP020L Electric Chain Hoist with Push Trolley HARRINGTON

$4,940.40 - $5,322.62

The SNERP020L HARRINGTON SNERP Electric Chain Hoist with Push Trolley is a robust and dependable tool designed to tackle even the toughest of tasks. Capacity ranging from 2 Tons, this electric chain hoist is ideal for heavy-duty applications.One of the standout features of the SNERP020L Electric Chain Hoist with Push Trolley is its single-phase electricity powered motor. This ensures consistent performance and efficiency, enabling you to complete tasks effortlessly and with precision.In addition to its power and durability, this hoist is incredibly user-friendly. The push trolley allows for smooth movement and accurate positioning, reducing the risk of accidents or damage to your materials. This makes it an indispensable tool for industrial settings where safety and efficiency are paramount.Not only does the SNERP020L HARRINGTON SNERP Electric Chain Hoist with Push Trolley excel in functionality, but it also boasts exceptional build quality. Crafted from high-quality materials, this hoist is designed to withstand the rigors of heavy-duty use, ensuring its longevity and reliability for years to come.With its sleek design and compact size, this hoist is also highly portable, allowing you to easily transport it to different job sites or locations within your facility. This versatility makes it an invaluable asset for any industrial operation, whether it's a construction site, manufacturing plant, or warehouse.Investing in the SNERP020L HARRINGTON SNERP Electric Chain Hoist with Push Trolley means investing in heightened productivity and efficiency. So, why wait? Purchase this superior hoist today and experience the difference it can make to your heavy-duty tasks.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE
