Product Description:

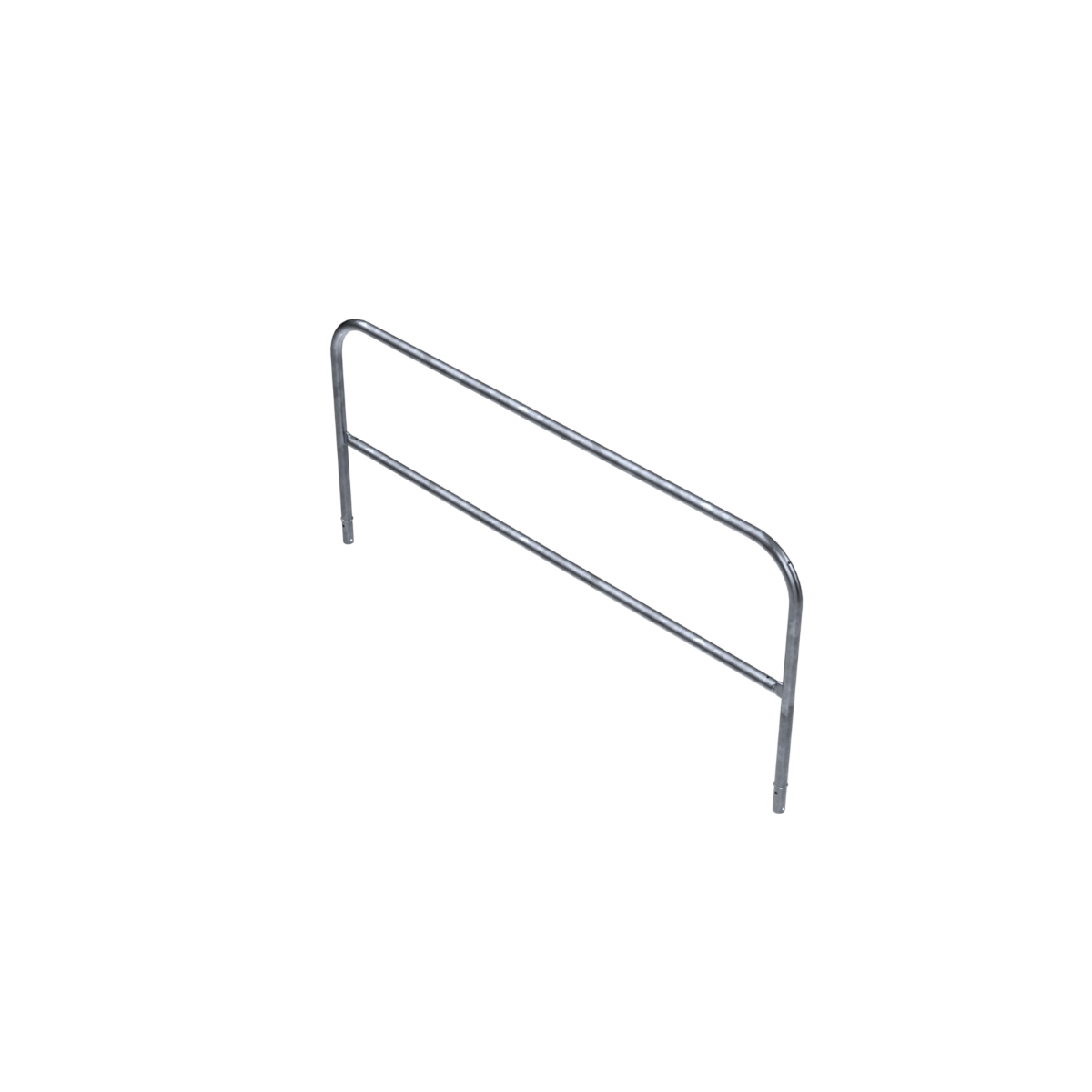

The Safety Rail Co. Mobile Safety Rail, 7 ft, Galvanized is a 7 ft guardrail section for the SRC360 Mobile Rail system, a non-penetrating, passive fall protection system for flat, membrane rooftops. The steel rail pins into SRC360 cast iron mobile bases (separate item) with a positive locking pin system, so the system installs without tools, welding, drilling, or roof membrane penetration. Once assembled, the section provides a 42 in top rail and 21 in mid rail and is tested for 200 lb of force in a downward or outward direction. It is designed for EPDM, TPO, or bitumen roofs up to a 1:12 pitch and is used in industrial, commercial, and construction settings as a permanent or temporary guardrail. This section has a galvanized finish.

Product Info:
•  Brand: Safety Rail Co.
•  SKU: 400106
•  Product Type: Mobile guardrail section (SRC360 Mobile Rail system)
•  Rail Length: 7 ft
•  Finish: Galvanized
•  Assembled Height: 42" top rail, 21" mid rail
•  Dimensions: 86 x 2 x 40"
•  Weight: 23 lb
•  Railing Tube: 1-5/8" O.D. hot rolled, pickled and oiled (HRPO) steel
•  Load Testing: Tested for 200 lb force in a downward or outward direction
•  Installation: Non-penetrating; no tools, welding, or drilling; single-person installation
•  Compatibility: SRC360 Mobile Base (cast iron, 104 lb each, EPDM pads pre-installed); positive locking pin system
•  Roof Requirements: Flat and low-sloped EPDM, TPO, or bitumen roofs up to 1:12 pitch; not for use on steel or concrete; 18" offset from leading edge with no parapet wall
•  Layout Requirement: Rail segments along a leading edge must begin and end with a 5 ft return rail with base
•  Standards/Certifications: OSHA 29 CFR 1910.29 & 29 CFR 1926.502; AWS D1.1 & D1.3 (American Welding Society certified)
•  Country of Origin: USA
