Product Description:

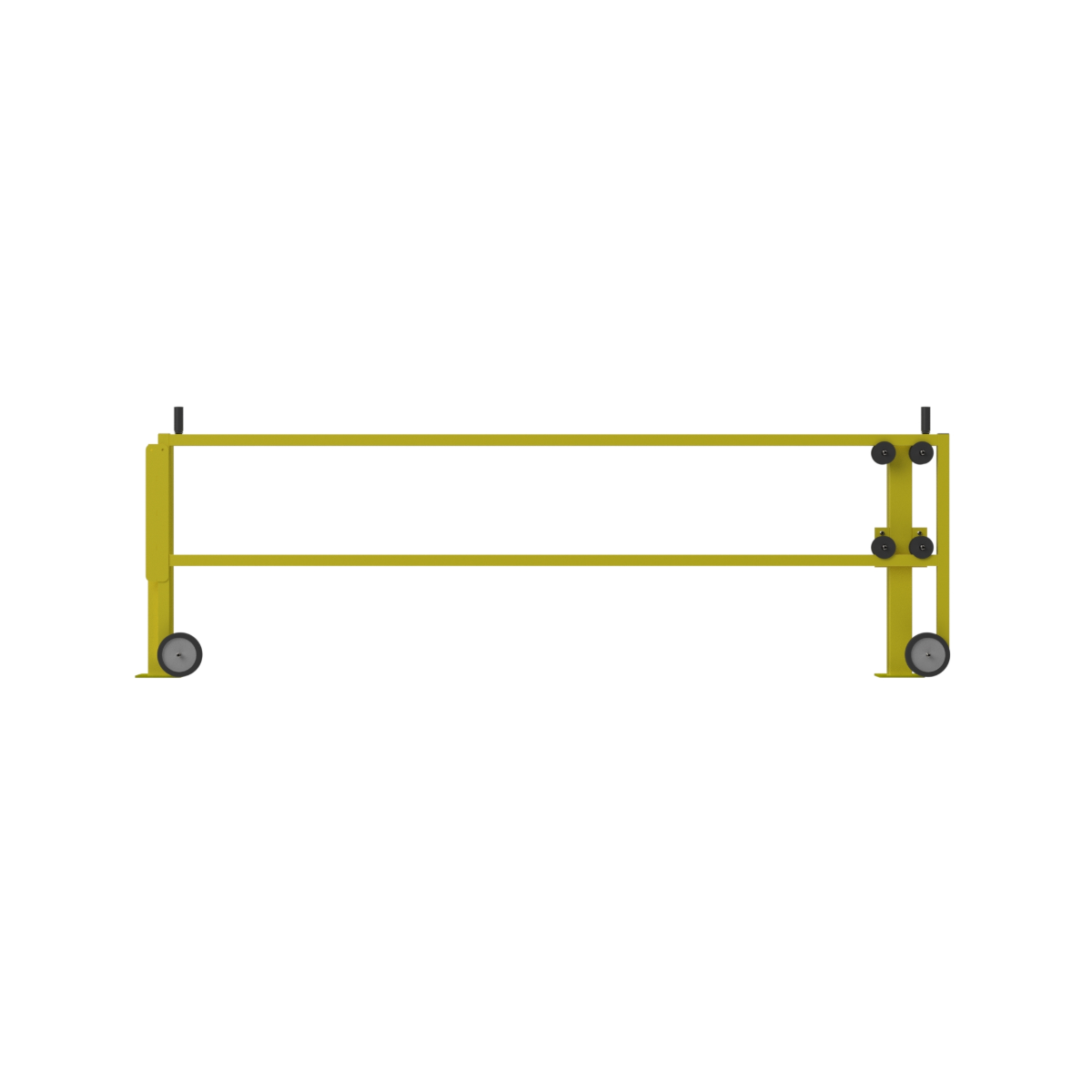

The Safety Rail Co. 4' Dock Roller Gate, Yellow is a sliding barrier gate that extends and retracts on rollers mounted to a stanchion. It guards openings in front of elevated loading dock doors, shipping bays, mezzanines, machine centers, and other restricted access areas, and lets dock doors stay open while keeping workers protected. This nominal 4 ft model provides a 48.5 in clear opening, with a total length of 70 in closed and 120.5 in open, and it can be mounted to slide right or left. Integrated handles aid operation, and the closed gate provides a 42.5 in top rail and 21 in mid rail. It mounts to concrete or bar grating and needs clear floor space beside the gate.

Product Info:
•  Brand: Safety Rail Co.
•  SKU: 400787
•  Product Type: Dock roller gate (sliding)
•  Nominal Length: 4 ft
•  Clear Opening: 48.5"
•  Total Length Closed: 70"
•  Total Length Open: 120.5"
•  Closed Height: 42.5" top rail, 21" mid rail
•  Dimensions: 71 x 12 x 48"
•  Finish: Powder-coated safety yellow
•  Material: Steel square tube; steel plate stanchion
•  Mounting Depth: 11"
•  Operation: Rolls to slide right or left; integrated handles
•  Mounting Requirements: Concrete or bar grating substrate; flat, level surface; clear floor space adjacent to gate
•  Included: Concrete anchors
•  Load Testing: Tested for 200 lb force in a downward or outward direction
•  Installation Time: Approx. 30 minutes
•  Standards/Certifications: OSHA 1910.29(b)(3) & (b)(4) and 1926.502(b)(3) & (b)(4); AWS D1.1 & D1.3 (American Welding Society certified)
•  Country of Origin: USA
