Product Description:

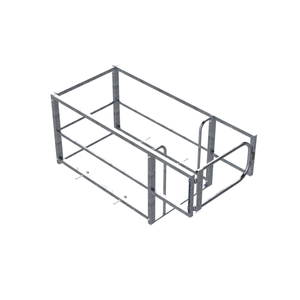

The Safety Rail Co. 36 x 76 4-Piece Hatchguard with 36" Gate, Galvanized is a non-penetrating guardrail enclosure for roof hatches with a nominal 36 x 76 in opening. The four-piece assembly bolts together on site, then secures to the raised hatch curb with four compression bolts and non-penetrating rubber swivel feet that protect the curb surface, so no welding, drilling, or roof membrane penetration is required. Built-in right- and left-hand grab bars, a 36 in self-closing gate, and a 2 ft safe landing zone aid entry and exit, and the gate maintains protection on all four sides. The all-steel guard provides a 42 in top rail and 21 in mid rail, is tested for 200 lb of force in any direction, and installs in about 15 minutes.

Product Info:
•  Brand: Safety Rail Co.
•  SKU: 401157
•  Product Type: Roof hatch guardrail, 4-piece modular, with self-closing gate
•  Hatch Size (Nominal): 36" x 76"
•  Gate: 36" self-closing gate
•  Finish: Galvanized
•  Dimensions: 107 x 44 x 42"
•  Assembled Height: 42" top rail, 21" mid rail
•  Construction: All steel; bolt-together modular design (one-piece welded design optional)
•  Mounting: Four compression bolts with non-penetrating rubber swivel feet
•  Features: Built-in R/L grab bars; 2 ft safe landing zone
•  Requirements: Raised curb typically found on roof hatch kits; flat and low-sloped roofs
•  Load Testing: Tested for 200 lb force in any direction
•  Installation Time: Approx. 15 minutes
•  Standards/Certifications: OSHA 29 CFR 1910.29 & 29 CFR 1926.502; Cal-OSHA 1620 & 3209; AWS D1.1 & D1.3 (American Welding Society certified)
•  Country of Origin: USA
