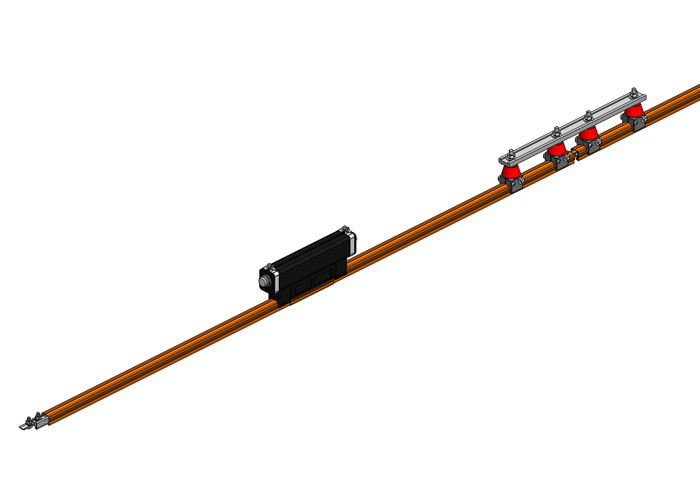

The XA_399703_J is part of Conductix-Wampfler’s Safe_Lec_2 conductor bar system, designed to create a power-free section within consecutive energized zones for enhanced safety and system segmentation. This specific unit uses copper conductors rated for 160_A / 250_A and is enclosed in a vivid orange PVC cover, making it suitable for standard indoor use in clean environments.
At a standardized length of 14.76_ft (4.5_m)—matching any other conductor bar section—the interrupting segment directly replaces one conductive bar to introduce a "dead zone." It ensures no interruption in the ground conductor, preserving safe grounding. With a lightweight 12.4_lb design, it’s easy to handle and install, conforming to Safe_Lec_2 specifications for up to 1,200_ft/min travel speed. Ideal for use in cranes, conveyors, monorails, and other material handling systems where current isolation is required.
Key Features
160_A / 250_A copper-rated conductors – supports higher AMP systems
Orange PVC cover – bright visual indication and electrical insulation
Safe interrupting section – creates a power-free gap for maintenance or zoned systems
Standard length (4.5_m) – drops into existing conductor bar runs without needing customization
Lightweight (12.4_lb) – easy to mount and retrofit
Ground continuity maintained – ground bar remains uninterrupted
System rated per Safe_Lec_2 – works in dry indoor environments at up to 1,200_ft/min travel speed
Fits overhead cranes, conveyors, monorails – ideal for material handling and maintenance safety
