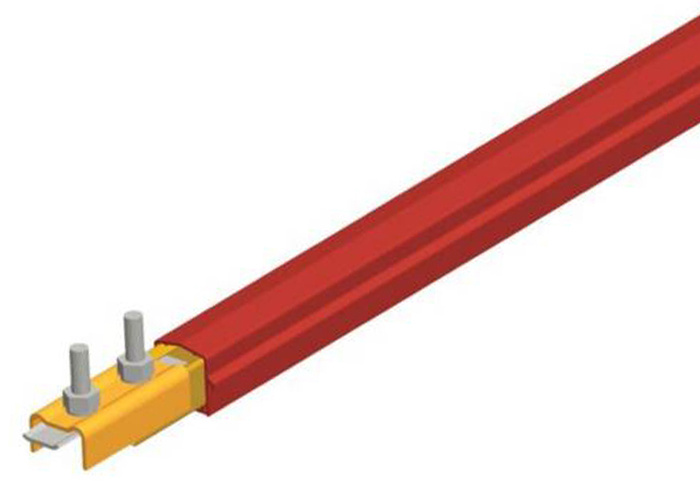

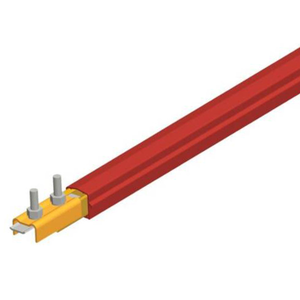

The XA-310503-J is a 4.5-meter section of Conductix-Wampfler’s Safe-Lec 2 modular conductor bar system. It features 400A copper bus conductors enclosed in a red medium heat-resistant polycarbonate cover, providing excellent mechanical strength and thermal resistance. This conductor bar includes a factory-installed bolted splice joint to ensure secure and efficient installation. The peaked housing design offers IP2X finger-safe protection while shedding debris and moisture, making it suitable for overhead cranes, conveyors, and other heavy-duty material handling applications. Rated for system voltages up to 600V and travel speeds up to 1200 ft/min.
Key Features
400A copper conductors for high current capacity
Red medium heat-resistant polycarbonate housing for enhanced durability
Factory-installed bolted splice joint for easy, secure installation
Peaked IP2X-rated housing for finger safety and debris protection
Compatible with Safe-Lec 2 snap-in multi-pole hangers
Supports voltages up to 600V and speeds up to 1200 ft/min
Length: 4.5 meters
