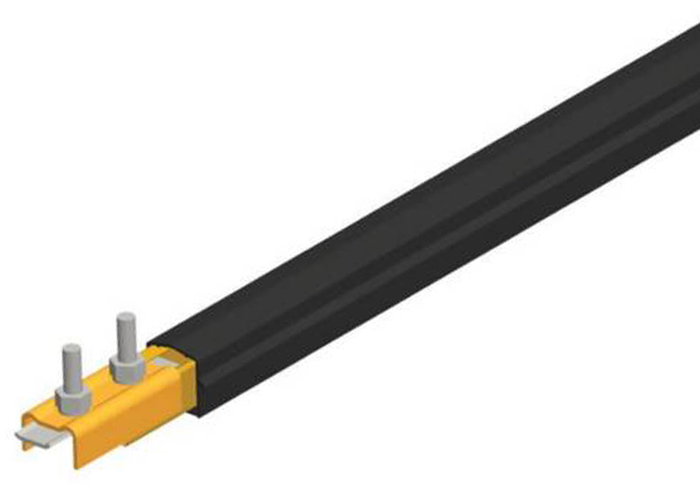

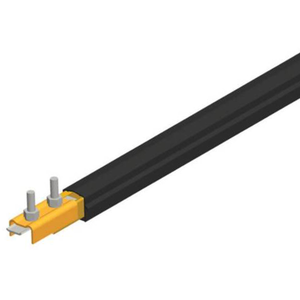

The XA-310301B-J is a Safe-Lec 2 conductor bar designed for industrial applications such as overhead cranes, monorails, and material handling systems. It delivers up to 160_A of continuous current through copper conductors housed in a black UV-resistant PVC cover, making it well-suited for outdoor installations.
This 4.5-meter section comes pre-assembled with a factory-installed splice joint for fast, secure installation. The Safe-Lec 2 system features modular snap-in designs for multi-pole hangers, allowing efficient expansion and maintenance. The PVC housing provides finger-safe IP2X protection and sheds dust and moisture thanks to its peaked profile design. It is rated for up to 600_V and travel speeds of up to 1200_ft/min, ensuring performance in demanding environments.
Key Features
160_A copper conductors – supports high-capacity industrial power distribution
Black UV-resistant PVC cover – protects against sunlight and harsh environments
Pre-installed splice joint – enables quick and secure installation
4.5_m bar length – modular format compatible with Safe-Lec 2 systems
Snap-on hanger compatibility – simplifies mounting and maintenance
Peaked profile – sheds water and debris, ideal for clean operation
Electrical rating – up to 600_V; supports travel speeds up to 1200_ft/min
Approximate weight: 6.16_lb (2.8_kg)
