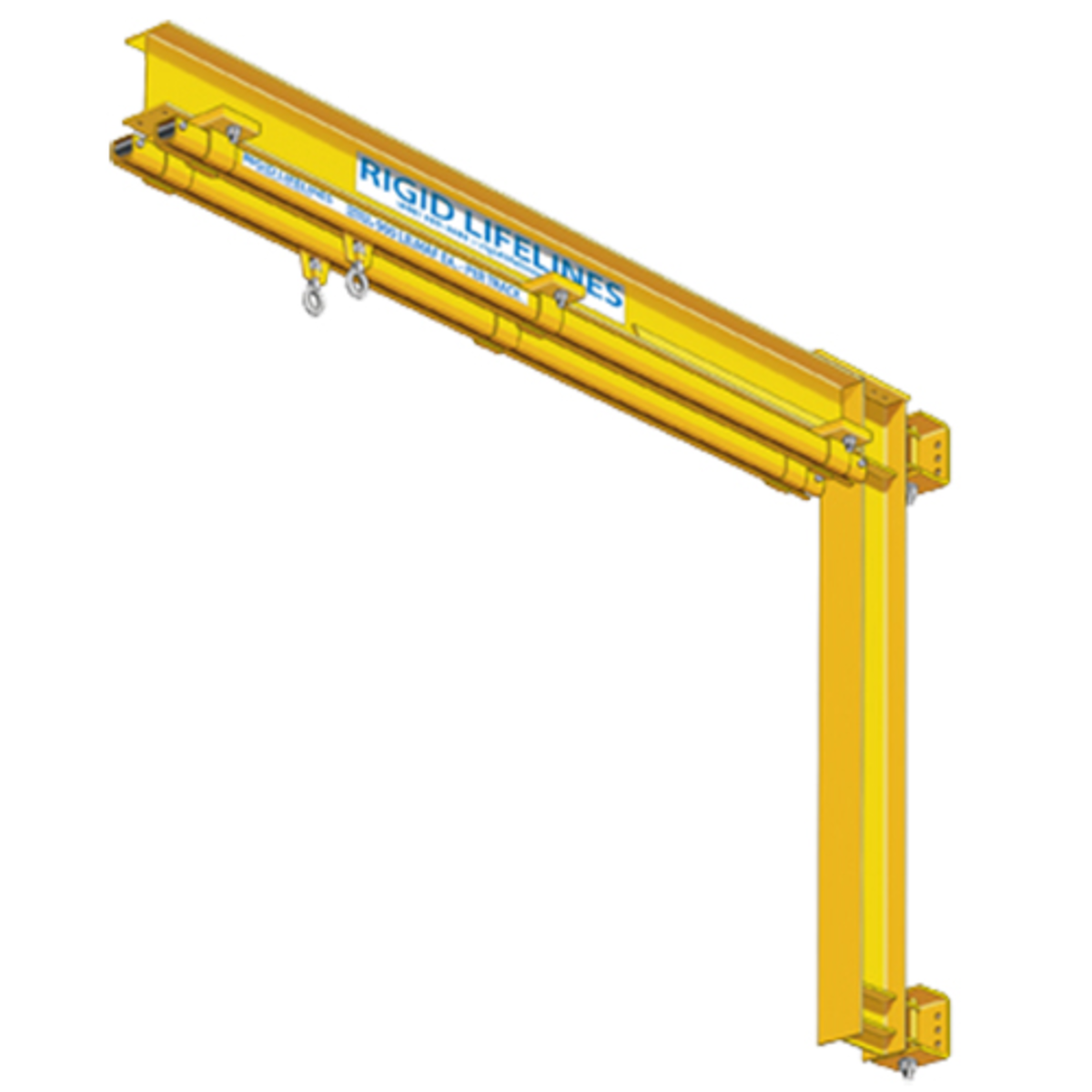

Rigid Lifelines Standard Column-Mounted Swing Arm, 2-Person, 20 ft Arm Reach

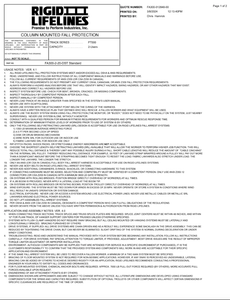

You get a compact, rotating fall protection solution with FA300-2-20-DST, ideal for work areas near overhead cranes. This unit is set up as a 2-person (dual track) configuration with a 20 foot arm reach, giving your worker a full 180 degree rotation to cover a semi-circular work area below. The column-mounted design uses wide flange steel columns and headers with fully enclosed, rigid track, and standard bracket spacing runs between 4 and 6 feet depending on your mounting points. Standard fall protection spans for this system range from 6 to 30 feet, with typical system weights between 200 and 2285 pounds depending on configuration.

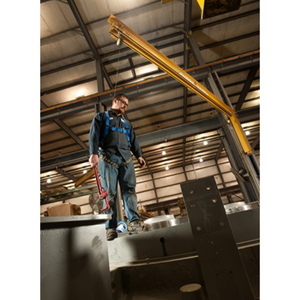

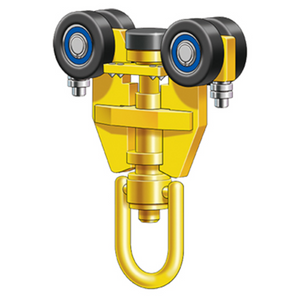

As your worker moves, the swing arm and trolley move with them, keeping the trolley positioned directly above the worker at all times to minimize swing fall hazards. The arm swings out of the way when it is not in use, so it will not interfere with overhead crane traffic in your facility. Assembly uses bolt together components with no welding required, and the system meets or exceeds current OSHA and ANSI standards.
This system is rated for a maximum person weight, including tools, of 310 pounds when used with a 1350 MAAF energy absorbing self retracting lanyard. Custom systems are available for heavier workers up to 420 pounds, so contact your Rigid Lifelines sales team if your crew needs a higher rated configuration. It is a smart option for facilities that want fall protection without permanently blocking floor or crane space.
Product Info:
• System Type: Column-Mounted Swing Arm Anchor Track System
• Worker Capacity and Track Type: 2-Person (Dual Track)
• Arm Reach: 20 ft
• Rotation: 180 degrees
• Standard Bracket Spacing: 4 to 6 ft
• Standard Span Range: 6 to 30 ft
• Standard System Weight Range: 200 to 2285 lbs
• Maximum Rated User Weight: 310 lbs with 1350 MAAF SRL, up to 420 lbs on custom systems
• Mounting: Mounts to existing wall columns
• Assembly: Bolt together field assembly, no welding required
• Compliance: Meets or exceeds OSHA and ANSI standards
• Available Options: Boom lock, foundation mounted or mobile counterweighted base, single, dual, or multi track configurations, custom paint or galvanized finishes, Mylar lip seal for heavy dust or overspray areas
