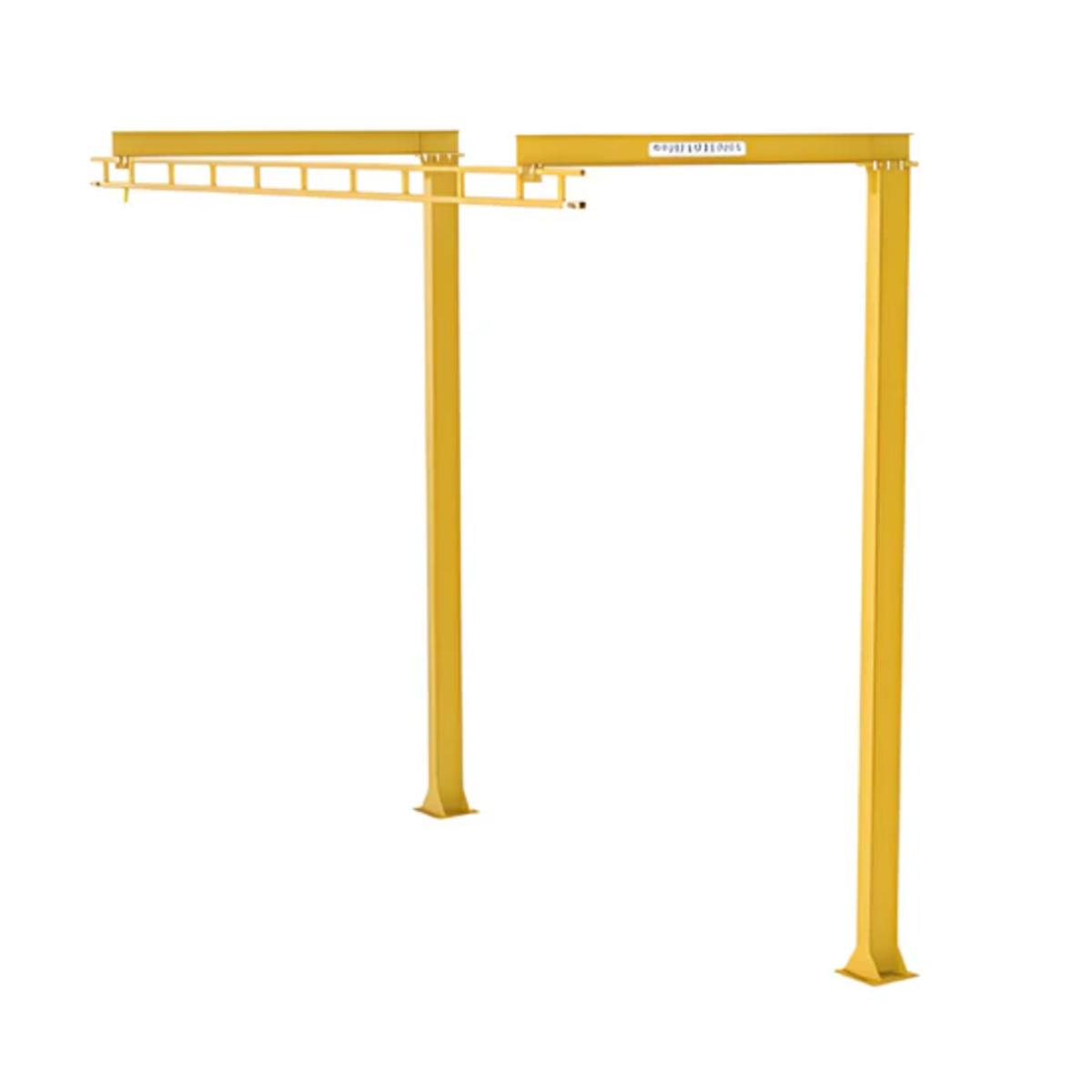

Rigid Lifelines Inverted-L Anchor Track System, 1-Person, 12 ft Arm Reach

Write a Review
$13,942.08
$12,083.13
(You save $1,858.95 )
SKU: FAFS-1-12-23-520-20
Weight: 1,999.00 LBS
Shipping: $1,713.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Rigid Lifelines Inverted-L Anchor Track System, 1-Person, 12 ft Arm Reach

Rigid Lifelines Inverted-L Anchor Track System, 1-Person, 12 ft Arm Reach

$13,942.08
$12,083.13
(You save $1,858.95 )

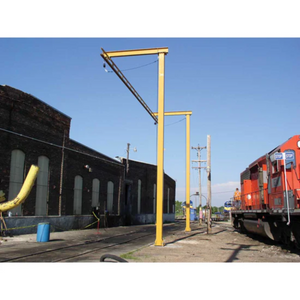

If your facility works with vehicles, railcars, or structures that require overhead access, FAFS-1-12-23-520-20 keeps your workers protected every time they climb up top. This configuration is built as a 1-user (non-passable), single track arrangement with a 23 foot track length and support columns spaced 20 feet apart, giving your crew a 12 foot arm reach to work with. Each frame pairs a freestanding column with a header to form the L shape the system is named for, and the whole assembly sits on a concrete foundation for long term stability.

Inside the track, an internally tapered profile self centers the trolley and end trucks so movement stays smooth, quiet, and comfortable for the person wearing the harness. The enclosed design also keeps dirt and dust from building up and interfering with trolley travel over time. Every unit ships with an Anchor Trolley connector included and meets or exceeds current OSHA and ANSI fall protection standards. Installation goes quickly thanks to bolt together field assembly, so your crew is not waiting on welding crews before the system goes into service.

This system is rated for a maximum person weight, including tools, of 310 pounds when used with a 1350 MAAF energy absorbing self retracting lanyard. Custom systems are available for heavier workers up to 420 pounds, so contact your Rigid Lifelines sales team if your crew needs a higher rated configuration. With custom cantilevers and support structures available, you can configure this system to match the exact footprint of your facility.


Product Info:
•  System Type: Inverted-L Anchor Track System
•  Worker Capacity and Track Type: 1-User (Non-Passable), Single Track
•  Track Length: 23 ft
•  Support Centers: 20 ft
•  Arm Reach: 12 ft
•  Trolley Hook Height: 22 ft standard
•  Maximum Rated User Weight: 310 lbs with 1350 MAAF SRL, up to 420 lbs on custom systems
•  Foundation: Concrete foundation required
•  Assembly: Bolt together field assembly, no welding required
•  Compliance: Meets or exceeds OSHA and ANSI standards
•  Available Options: Custom heights, spans, and cantilever designs, single, dual, or multi track configurations, curved track, and custom paint or galvanized finishes

Rigid Lifelines warrants its products to be free from defects in material and workmanship as follows: engineered track equipment, wearable end truck wheels, and Anchor Trolley(TM) wheels and teeth for ten years; motorized products, drive components, and paint and finishes for non-aluminum components for two years; and soft goods, devices, connectors, and accessories for one year. Specifically, manual Anchor Track(TM) systems and equipment are warranted against defects in material and workmanship for ten years or 20,000 hours from the date of shipment to the first retail purchaser, covering only nonwearable parts except that wearable wheels on end trucks and wearable Anchor Trolley wheels and teeth are also included; motorized equipment is warranted for two years or 4,000 hours from the date of shipment, and paint and finishes are warranted for two years, with coating-related claims requiring documentation of the product's application and environmental conditions from delivery through the time of claim; and fall protection soft goods, devices, connectors, and accessories are warranted for one year from the date of shipment to the first retail purchaser. All warranty claims must be approved by Rigid Lifelines before any work is performed, and its sole obligation is to repair or replace products at the factory or an approved location, with no other express, implied, or statutory warranties honored - including any warranty of merchantability or fitness for a particular purpose - and Rigid Lifelines reserves the right to reject claims due to harsh or inappropriate environmental conditions. Rigid Lifelines is not liable for indirect, incidental, or consequential damages (including lost profits, operating costs, loss of production, or travel expenses); components or accessories not manufactured by Rigid Lifelines (except soft goods components and accessories it sells and warrants, which are governed by the original manufacturer's warranty terms); defective equipment or system failure caused by misuse, negligence, or improper installation or maintenance; equipment used beyond its rated capacity or service factors; unauthorized rework or modification; freight charges and damage caused by freight carriers; loss, injury, or property damage resulting from failure or defective operation; damage to paint coatings and finishes caused by negligence or improper storage (such as storing an indoor system outdoors); or products designed to deform or absorb energy during a fall event that require replacement after such an event. Under the reimbursement disclaimer, written notice of any claimed system defect must be given within ninety (90) days of shipment, all reimbursement requests must include proper documentation, reimbursement is provided as a credit unless otherwise approved by Rigid Lifelines management, labor reimbursement is capped at $90 per hour, and all reimbursement remains subject to Rigid Lifelines management approval.
