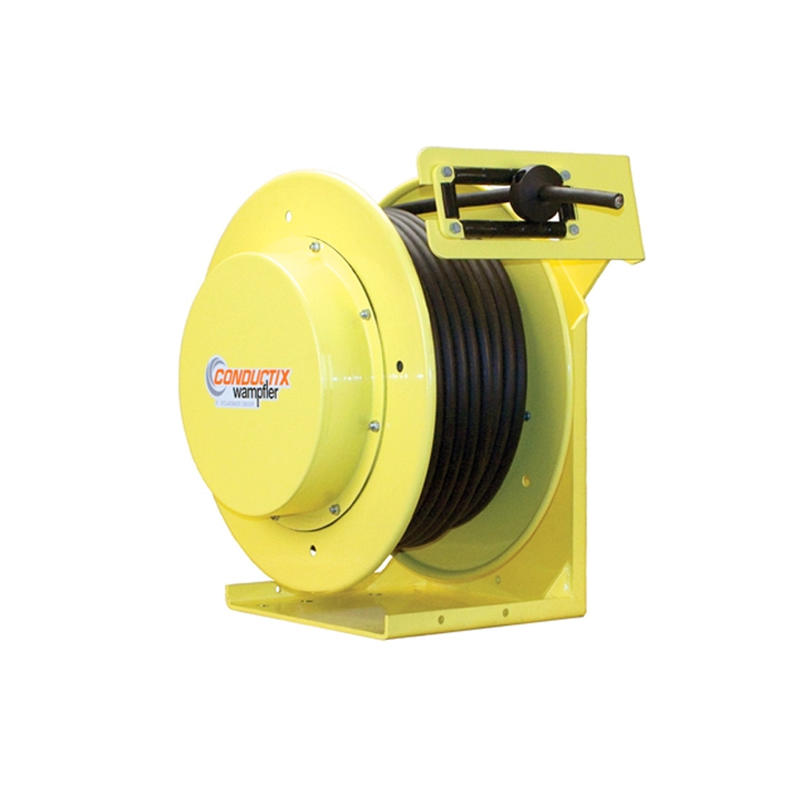

The XA_192120403011 PowerReel®, part of Conductix_Wampfler’s rugged 1900_Series, is a spring-driven cable reel specifically engineered for lift-and-drag applications that require multi-conductor power and signal delivery. This model is preloaded with 30_ft of 12_AWG, 4_conductor SOOW cable, making it ideal for cranes, hoists, festoon systems, and other mobile or portable equipment operating in industrial environments.
This unit features a sealed, maintenance-free spring-return mechanism for reliable and consistent cable retraction. A ratchet locking system enables secure cable positioning at any desired extension length. The cable is housed on a durable 19_ steel drum, protected by a NEMA 4-rated powder-coated steel enclosure, which offers strong resistance to dust, water, and environmental wear.
Engineered for dependability and ease of integration, this reel ensures efficient cable management for low- to mid-range power delivery with additional conductors for control or signaling functions.
Key Features
Feature Specification
Part Number XA_192120403011
Cable Type 12_AWG, 4_conductor SOOW
Cable Length 30_ft
Application Lift/Drag
Drum Size 19_ heavy-duty steel
Retraction System Sealed spring-return – maintenance-free
Locking Mechanism Ratchet – holds cable at set length
Enclosure Rating NEMA 4 – dust- and water-resistant
Mounting Options Wall, ceiling, or beam
Common Uses Cranes, hoists, festoon systems, and mobile machinery requiring 4-conductor power/control cables
