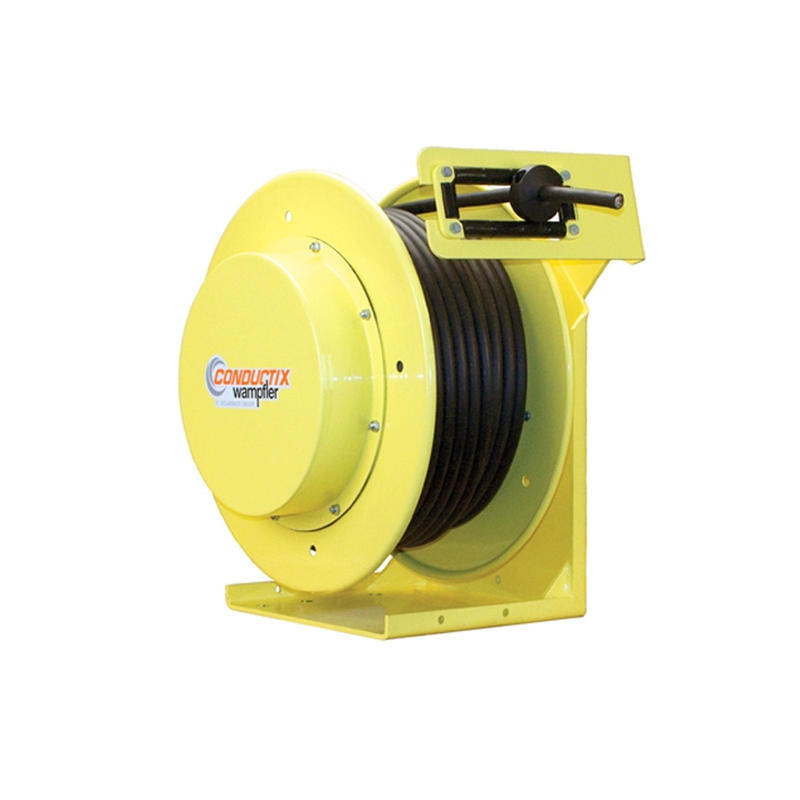

The XA_192160802011 PowerReel®, from Conductix_Wampfler’s 1900_Series, is a compact spring-driven cable reel engineered for industrial lift-and-drag operations where short cable lengths and multiple conductors are required. This model includes 20_ft of 16_AWG, 8_conductor SOOW cable, making it well-suited for delivering power and control to equipment like hoists, cranes, festoon systems, and automation tools within a confined work area.
The reel incorporates a sealed, maintenance-free spring-return system for consistent, hassle-free cable retraction. A ratchet locking mechanism allows operators to hold the cable at the desired length during operation. The cable is housed on a durable 19_ steel drum, enclosed within a NEMA 4-rated, powder-coated steel enclosure for superior protection against dust, water, and harsh industrial conditions.
Designed for high-conductor flexibility in short-range applications, this reel offers reliable performance and ease of installation in demanding environments.
Key Features
Feature Specification
Part Number XA_192160802011
Cable Type 16_AWG, 8_conductor SOOW
Cable Length 20_ft
Application Lift/Drag
Drum Size 19_ heavy-duty steel
Retraction System Sealed spring-return – maintenance-free
Locking Mechanism Ratchet – holds cable at set extension
Enclosure Rating NEMA 4 – dust- and water-resistant
Mounting Options Ceiling, wall, or beam
Common Uses Short-range applications requiring multiple conductors: cranes, hoists, festoon systems, control tools
