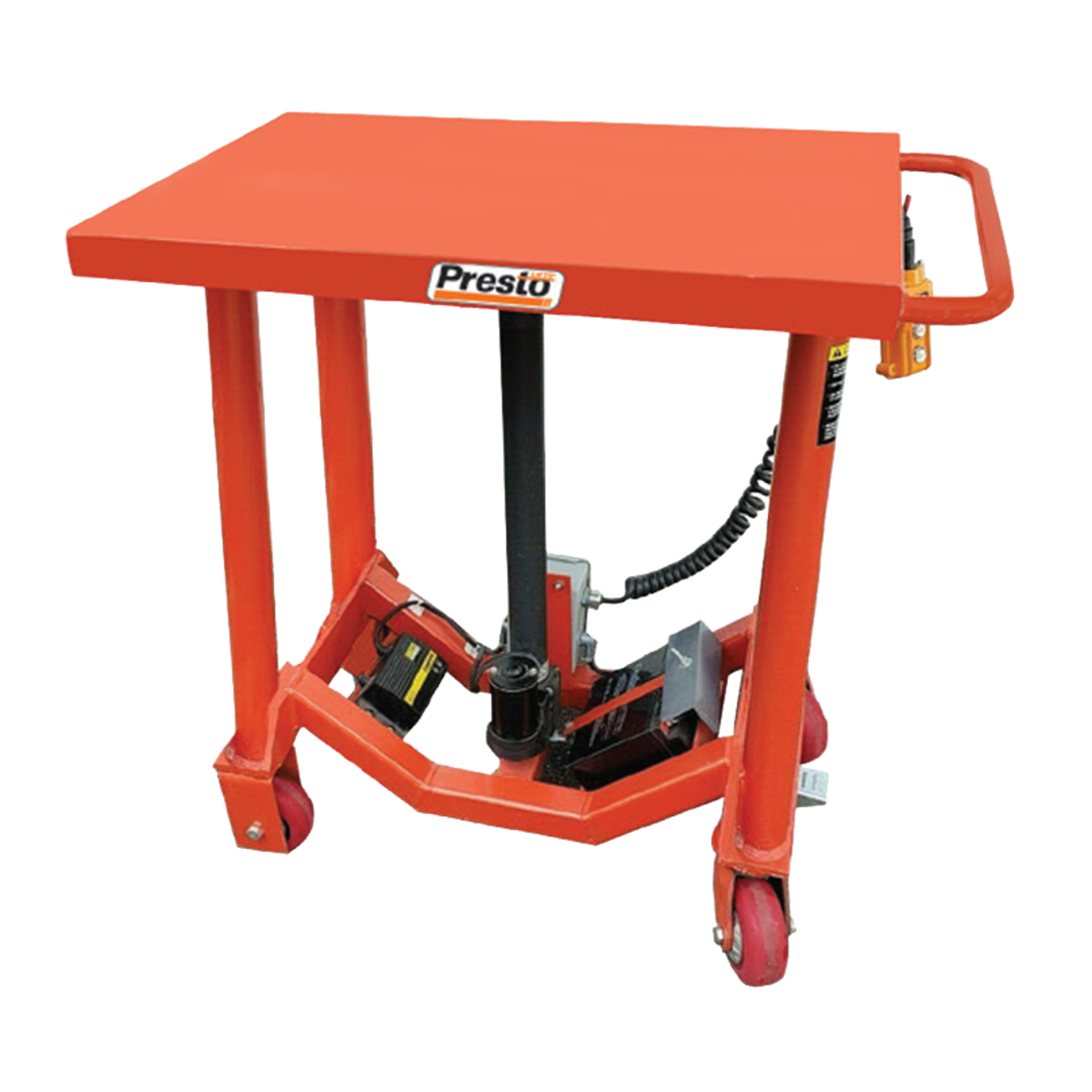

BP18-10 – A battery-powered post lift table with a 1,000 lb (454 kg) capacity, featuring a compact 24″ × 36″ platform and a stroke lift range of 34″ to 52″. Ideal for ergonomic loading, positioning, and transport in industrial settings.

Product Description

The BP18-10 Battery Post Lift Table is a dependable and efficient material-handling solution designed to simplify lifting and positioning tasks in industrial environments. Perfect for use in warehouses, assembly lines, and maintenance areas, this compact yet powerful lift table enhances workplace safety and productivity by reducing manual lifting and repetitive strain.

Engineered with a 1,000 lb load capacity, the BP18-10 provides exceptional lifting strength for parts, boxes, tools, and equipment. Its 24″ × 36″ platform offers ample working space while maintaining a small footprint, making it easy to maneuver in tight spaces or alongside production lines.

Powered by a 12 V DC screw-drive linear actuator, the BP18-10 ensures smooth, consistent, and precise lifting performance. The system is driven by a maintenance-free gel cell battery and comes with a built-in onboard charger for continuous operation. The push-button control makes lifting simple and efficient, eliminating the need for hydraulic systems or manual pumping.

Mobility and stability are built into its design. The lift table includes two fixed casters and two swivel phenolic wheels, allowing effortless movement between workstations. A foot-operated floor lock secures the table during loading and unloading, ensuring a safe and stable platform.

Constructed from heavy-duty welded steel, the BP18-10 is built for long-lasting durability. Precision guide posts maintain platform alignment during vertical travel, offering superior stability even when the table is fully extended. This design not only improves safety but also enhances precision in positioning and load handling.

From ergonomic work positioning to mobile material transport, the BP18-10 delivers the flexibility, reliability, and ease of use that modern facilities demand. Whether you need to lift heavy components or transport materials safely across the shop floor, this lift table is a smart, battery-powered solution that keeps operations moving efficiently.

Specifications

• Model / SKU: BP18-10
• Type: Battery-powered post lift table
• Capacity: 1,000 lb (454 kg)
• Platform Size: 24″ × 36″
• Lowered Height: 34″
• Maximum Lift Height: 52″
• Lifting Mechanism: 12 V DC screw-drive linear actuator
• Battery / Power: Maintenance-free gel cell battery with onboard charger
• Controls: Push-button operation
• Mobility: Two fixed casters and two swivel phenolic wheels
• Locking Mechanism: Foot-operated floor lock for stability during use
• Construction: Heavy-duty welded steel with guide posts for alignment
• Finish: Industrial powder coat for corrosion resistance
• Applications: Ergonomic work positioning, industrial loading, assembly, packaging, and transport tasks
