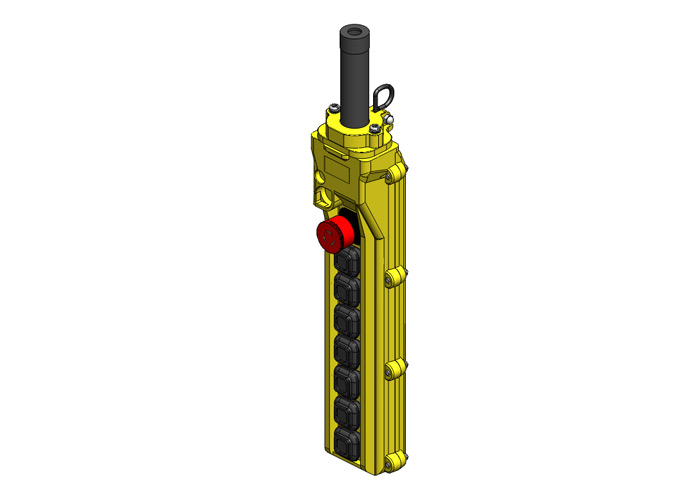

The XA_39993, part of the Conductix-Wampfler 80_Series, is a robust, pre-configured 8-button pendant designed for demanding industrial control. It features:
1 _ 34313 — momentary single-speed switch
1 _ 34306 — maintained on/off switch
3 _ 34295 — dual-speed momentary switches with spring-return action for two-speed operation
The pendant is housed in a durable two-piece yellow ABS enclosure, engineered for ergonomic use and harsh environments. It is UL/cUL listed and sealed to NEMA_4X/IP65, protecting against dust and water ingress for indoor-only installations.
For secure wiring and strain relief, it includes a stepped cable bushing (accepts Ø_7.5–29.5_mm cables) and an integrated S-hook. A legend sheet and loose jumpers are supplied with the unit for ease of customization.
Key Features & Specifications
Feature Specification
Switches 1 _ 34313 (momentary single-speed)
1 _ 34306 (maintained ON/OFF)
3 _ 34295 (dual-speed momentary)
Enclosure Yellow ABS, two-piece; NEMA_4X/IP65; UL/cUL listed
Cable Relief Stepped bushing + integrated S-hook
Weight Approx. 1.83 lb (0.83 kg)
Included Button legend sheet, loose jumpers
Assembly Option Available prewired with cable (sold separately)
