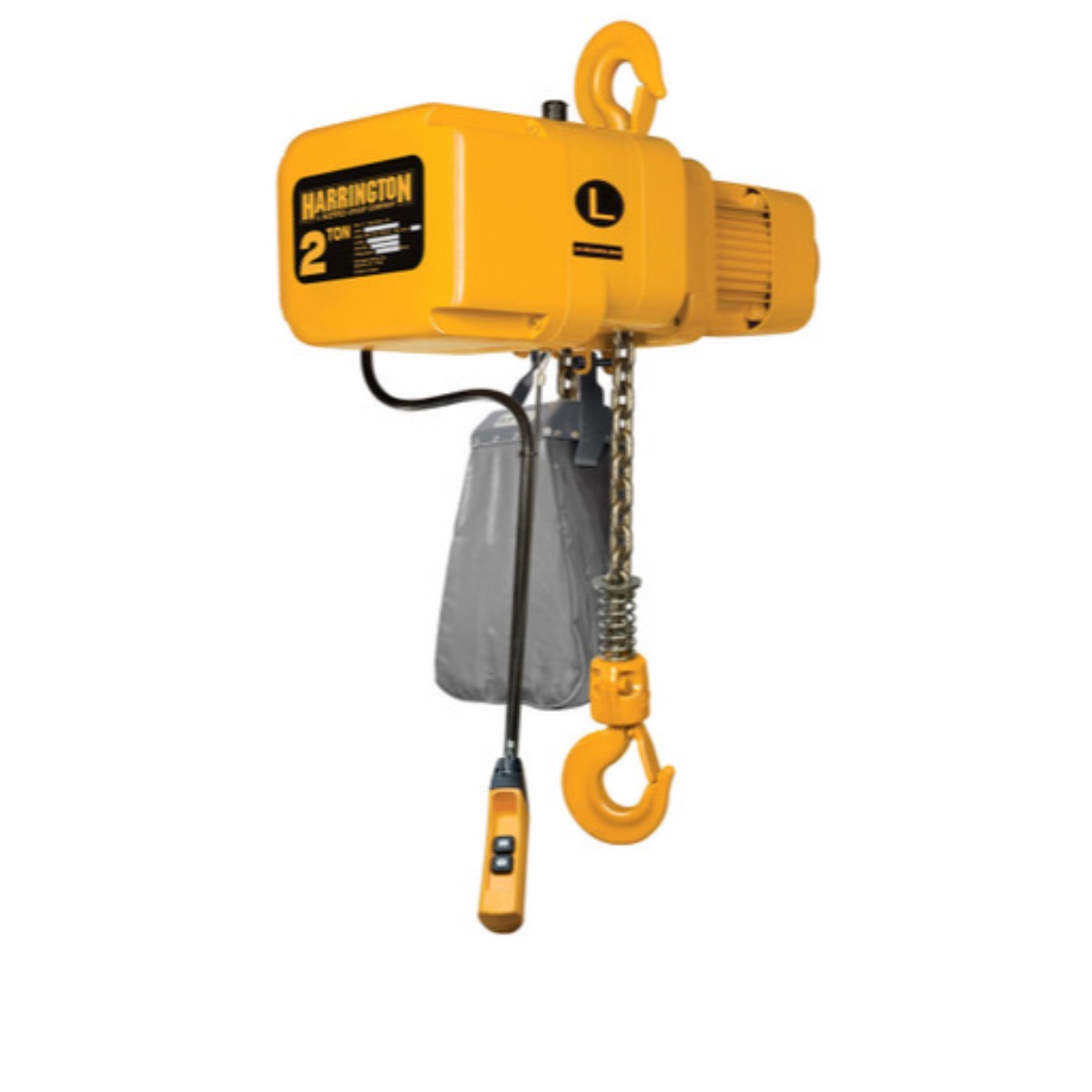

NER Electric Chain Hoist Lift-Capacity 2 Tons NER020C Electric Chain Hoist HARRINGTON

Write a Review
$3,903.06 - $4,409.25
SKU: NER020C-10
Condition: New
Availability: In stock
Weight: 130.00 LBS
Width: 17.00 (in)
Height: 19.00 (in)
Depth: 25.00 (in)
Shipping: Free Shipping
Color: Yellow
Product: Electric Chain Hoist, 4,000 lb, 10 ft, Hook Mounted-No Trolley, Yellow=Hoist Mount=Hook Mounted-No Trolley
Includes: Safety Latch, Safety Standards
Lift Speed: 7 fpm
Housing Width: 5 13/32 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 8 5/16 in
Housing Length: 16 29/32 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 5 13/32 in
Body Depth: 8 5/16 in
For Minimum Beam Height: Not Applicable
Body Length: 16 29/32 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Controller Cord Length: 8 3/16 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 1/2 in
Minimum Retracted Length: 27 13/16 in
Load Capacity: 4,000 lb
Minimum Between Hooks: 27 13/16 in
Motor HP: 1.2 hp
Phase: 3
Standards: Safety Latch, Safety Standards
Voltage: 230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Item: Electric Chain Hoist
Reeving: 2
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 4.8 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted-No Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 7 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 2
Motor Horsepower: 1 1/4 hp
Headroom: 27 13/16 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 4,000 lb
Current at Minimum Voltage: 4.8 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 2.5 A
Body Finish: Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NER Electric Chain Hoist Lift-Capacity 2 Tons NER020C Electric Chain Hoist HARRINGTON

NER Electric Chain Hoist Lift-Capacity 2 Tons NER020C Electric Chain Hoist HARRINGTON

$3,903.06 - $4,409.25

NER Electric Chain Hoist Lift-Capacity 2 Tons NER020C Electric Chain Hoist HARRINGTON

$3,903.06 - $4,409.25

The NER020C HARRINGTON NER Electric Chain Hoist is a powerhouse designed to tackle the most demanding work environments. With a lifting capacity 2 Tons and a maximum lift of 10 feet, this electric chain hoist delivers the power and versatility needed to handle any heavy-duty job with ease.Built with precision and durability in mind, the NER020C is engineered to perform at its best even in harsh conditions. Whether you're lifting heavy machinery, moving construction materials, or performing other industrial tasks, this hoist is designed to enhance productivity and streamline operations.The NER020C is built to last. Its rugged construction and reliable motor ensure exceptional longevity, making it a wise investment for any business looking to maximize efficiency and minimize downtime. With this electric chain hoist, expect consistent outstanding results for years to come.Safety is a top priority, which is why the NER020C is equipped with built-in safety features. Its overload protection system prevents accidents and optimizes safety for the operator and surrounding personnel. This hoist is designed to safeguard your workforce and minimize the risk of accidents, making it a reliable choice for any industrial setting.Operating the NER020C is a breeze, allowing for smooth and efficient workflow. Its user-friendly controls enable precise lifting and lowering, guaranteeing accurate positioning of loads. This electric chain hoist provides superior control and maneuverability, enabling you to complete tasks quickly and accurately.Investing in the NER020C HARRINGTON NER Electric Chain Hoist means experiencing unmatched performance and reliability for your heavy-duty lifting needs. With its exceptional lifting capacity, durable construction, and advanced safety features, this electric hoist is the ultimate solution for maximizing productivity and getting the job done right, every time. Trust in the NER020C to exceed your expectations and simplify even the toughest of jobs.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
