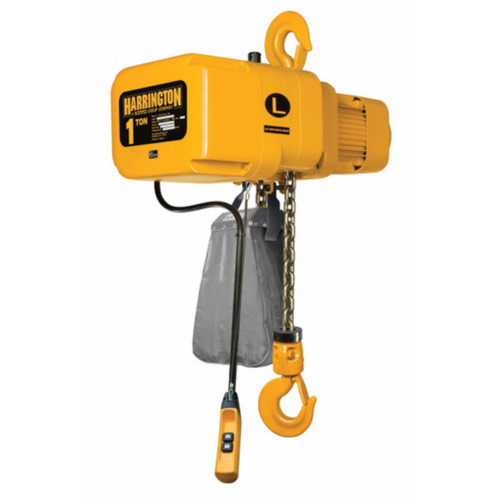

NER Electric Chain Hoist Lift-Capacity 1 Tons NER010L Electric Chain Hoist HARRINGTON

Write a Review
$3,447.25 - $3,741.03
SKU: NER010L-10
Condition: New
Availability: In stock
Weight: 111.00 LBS
Width: 17.00 (in)
Height: 19.00 (in)
Depth: 25.00 (in)
Shipping: Free Shipping
Color: Yellow
Hoist Lift: 10 ft
Includes: Chain Container, Limit Switches, Plug-In Connections
Lift Speed: 14 fpm
Housing Width: 14 13/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 8 5/16 in
Housing Length: 23 3/16 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 14 13/16 in
Body Depth: 8 5/16 in
For Minimum Beam Height: Not Applicable
Body Length: 23 3/16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Controller Cord Length: 8 3/16 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 3/16 in
Minimum Retracted Length: 16 29/32 in
Load Capacity: 2,000 lb
Minimum Between Hooks: 16 15/16 in
Motor HP: 1.2 hp
Phase: 3
Standards: ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340
Voltage: 208/230/460V
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 1
Thermal Protection: Yes
Control Cord: 6 ft
Amps @ Low Volts: 4.8 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted-No Trolley
Trolley Speed: Not Applicable
Features: Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 14 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Push Button Pendant=Mount Type=Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 1
Motor Horsepower: 1 1/4 hp
Headroom: 16 29/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 2,000 lb
Current at Minimum Voltage: 4.8 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 2.5 A
Body Finish: Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Adding to cart… The item has been added
NER Electric Chain Hoist Lift-Capacity 1 Tons NER010L Electric Chain Hoist HARRINGTON

NER Electric Chain Hoist Lift-Capacity 1 Tons NER010L Electric Chain Hoist HARRINGTON

$3,447.25 - $3,741.03

NER Electric Chain Hoist Lift-Capacity 1 Tons NER010L Electric Chain Hoist HARRINGTON

$3,447.25 - $3,741.03

The NER010L HARRINGTON NER Electric Chain Hoist is a high-performance tool designed to tackle even the toughest jobs and harshest conditions. This electric hoist is known for its unbeatable power and reliability, making it a must-have for any professional.With Capacity 1 Tons, the NER010L is incredibly versatile, making it suitable for a wide range of applications. Whether you're lifting heavy machinery, transporting materials, or handling equipment, this electric hoist is up to the task.The 10-foot lift provides you with the reach you need to get the job done efficiently. No more struggling with manual lifts or limited reach ‚the NER010L takes care of it all. Powered by advanced technology, this electric hoist ensures smooth and precise operation, making your lifting experience effortless and hassle-free.When it comes to durability, the NER010L is in a league of its own. Crafted from high-quality materials and built to withstand extreme conditions, this electric hoist is designed to last. You can rely on it for years to come, knowing that it can withstand even the toughest environments.With Harrington's NER/ER electric hoists, you can take your lifting capabilities to new heights. These hoists are known for their exceptional performance and cutting-edge technology, making them a favorite among professionals in various industries.Invest in the NER010L HARRINGTON NER Electric Chain Hoist today and experience the difference it can make in your day-to-day lifting operations. With its unbeatable power, reliability, and advanced technology, this electric hoist will take your productivity to new levels. Don't settle for anything less than the best‚ choose Harrington and experience excellence in lifting.

Buyer must notify HHI in writing within sixty (60) days of discovery of any alleged defect, if within the applicable warranty period. All products sold by HHI are warranted to be free from defects in material and workmanship from date of shipment by HHI for the following periods: 1 year – Electric and Air Powered Hoists (excluding (N)ER2 Hoists and EQ/SEQ Hoists), Powered Trolleys, Powered Tiger Track Jibs and Gantries, Crane Components, Below the Hook Devices, Spare / Replacement Parts 2 years – Manual Hoists & Trolleys, Beam Clamps 3 years – (N)ER2 Hoists, EQ/SEQ Hoists, (T)EM/(T)SEM hoists, and RY Hoists 5 years – Manual Tiger Track Jibs and Gantries, Hoist Motor Brakes for EQ/SEQ, (T)EM/(T)SEM, and RY 10 years – (N)ER2 Brake, TNER Hoist Motor Brake The product must be used in accordance with manufacturer’s recommendations and must not have been subject to abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. Should any defect in material or workmanship occur during the above time period in any product, as determined by HHI’s inspection of the product, HHI agrees, at its discretion, either to replace (not including installation) or repair the part or product free of charge. For customers in the U.S., delivery shall be made F.O.B. HHI’s place of business. For international customers, delivery shall be made FCA HHI place of business, United States of America (Incoterms 2010). No warranty claim will be honored without a valid proof of purchase. Customer must obtain a Return Goods Authorization as directed by HHI or its published repair center prior to shipping product for warranty evaluation. An explanation of the complaint must accompany the product. Product must be returned freight prepaid. Upon repair, the product will be covered for the remainder of the original warranty period. Replacement parts installed after the original warranty period will only be eligible for replacement (not including installation) for a period of one year from the installation date. If it is determined there is no defect, or that the defect resulted from causes not within the scope of HHI’s warranty, the customer will be responsible for the costs of returning the product. HHI DISCLAIMS ANY AND ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO THE PRODUCT’S MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. HHI WILL NOT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY OR FOR INCIDENTAL, CONTINGENT, SPECIAL OR CONSEQUENTIAL DAMAGES, LOSS OR EXPENSE ARISING IN CONNECTION WITH THE USE OR MISUSE OF THE PRODUCTS, REGARDLESS OF WHETHER THE DAMAGE, LOSS OR EXPENSE RESULTS FROM ANY ACT OR FAILURE TO ACT BY HHI, WHETHER NEGLIGENT OR WILLFUL, OR FROM ANY OTHER CAUSE.
