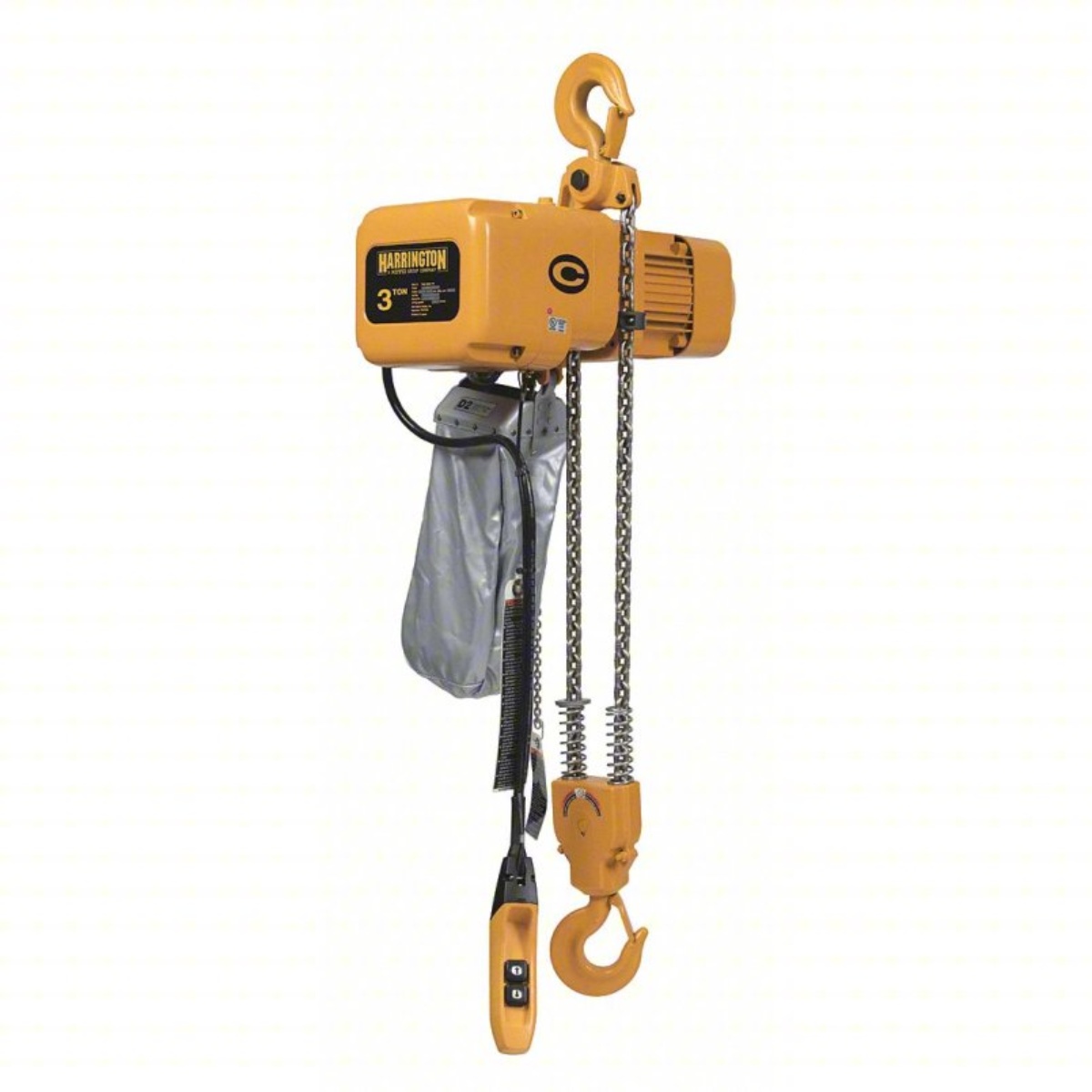

Harrington NER Series Electric Chain Hoist with Hook Suspension - 3 Ton - 10 ft Lift

Write a Review
$5,852.07 - $6,734.00
SKU: NER030C-10
Condition: New
Availability: Subject to Availability
Weight: 234.00 LBS
Width: 21.00 (in)
Height: 29.00 (in)
Depth: 34.00 (in)
Shipping: Calculated at Checkout
Color: Yellow
Includes: Chain Container, Limit Switches, Plug-In Connections
Lift Speed: 17 fpm
Housing Width: 16 13/16 in
Manufacturers Warranty Length: 10 yr Brake Warranty, 3 yr
Housing Depth: 9 1/2 in
Housing Length: 27 11/16 in
For Minimum Beam Flange Width: Not Applicable
For Maximum Beam Flange Width: Not Applicable
For Maximum Beam Height: Not Applicable
MFR Warranty Length: 1 yr
Body Width: 16 13/16 in
Body Depth: 9 1/2 in
For Minimum Beam Height: Not Applicable
Body Length: 27 11/16 in
Minimum Radius Curve: Not Applicable
Maximum Lifting Length: 10 ft
Controller Cord Length: 9 3/16 ft
Trolley Wheel Diameter: Not Applicable
Lifting Hook Opening Width: 1 13/16 in
Minimum Retracted Length: 30 29/32 in
Load Capacity: 5,000 - 9,999 lbs
Minimum Between Hooks: 32 15/16 in
Motor HP: 4.75 hp
Phase: 3
Standards: ANSI/ASME B30.16, ANSI/ASME HST-1M, ANSI/NFPA 70, UL 1340
Fits Brand: Harrington Hoists Inc
Lubrication: Oil Bath
Reeving: 2
Thermal Protection: Yes
Classification: H4
Control Cord: 6 ft
Amps @ Low Volts: 16.4 A
Number of Speeds: 1
Trolley Configuration: Hook Mounted
Trolley Speed: Not Applicable
Features: Count Hour Meter, Dual Speed VFD, Easy Access Suspension, Extreme Duty Motor, Secondary Brake, Smart Brake Technology, State-Of-The-Art Chain Technology, Unique Smart Limit Option
Lifting Hook Material: Carbon Steel
Includes Clutch: Clutch Included
Overload Protection Included: Yes
Brake Type: DC Current
Chain Grade: Grade 80
Maximum Lift Speed: Not Applicable
Included Components: Chain Container, Pendant, Quick Disconnect Plugs on Pendant, Safety Latch Hook
Fixed Lift Speed: 17 fpm
Clutch Type: Friction Clutch
Minimum Lift Speed: Not Applicable
Pendant IP Rating: IP65
Chain Finish: Nickel Plated
Controls: Programmable by Internal Controls, Mount Type: Hook Mounted-No Trolley
Starts and Stops per Hour: 360
Duty Classification: H4
Maximum Pulling Capacity: Not Applicable
Number of Reeves: 2
Motor Horsepower: 4 3/4 hp
Headroom: 30 29/32 in
Includes Brake: Brake Included
For Outdoor Use: Yes
Hoist IP Rating: IP55
Lifting Hook Type: Swivel Hook with Safety Latch
Maximum Lifting Capacity: 6,000 lb
Current at Minimum Voltage: 16.4 A
Trolley Wheel Material: Not Applicable
Current at Maximum Voltage: 7.9 A
Body Finish: Painted
Number of Load Chains: 1
Body Material: Aluminum
Trolley IP Rating: Not Applicable
Programmable: Non-Programmable
Suspension / Mounting: Hook
Control: Single Speed
Capacity: 5,000 - 9,999 lbs
Lift: 10 ft
Voltage: 208/230-460-3-60
Adding to cart… The item has been added
Harrington NER Series Electric Chain Hoist with Hook Suspension - 3 Ton - 10 ft Lift

Harrington NER Series Electric Chain Hoist with Hook Suspension - 3 Ton - 10 ft Lift

$5,852.07 - $6,734.00

Harrington NER Series Electric Chain Hoist with Hook Suspension - 3 Ton - 10 ft Lift

$5,852.07 - $6,734.00

The NER030C HARRINGTON NER Electric Chain Hoist is a superior solution for all your heavy-duty lifting requirements. This electric hoist is designed to perform at its peak even in the harshest job sites. Its durable construction and dependable components allow it to effortlessly handle Capacity 3 Tons .With its powerful motor, the NER030C ensures excellent performance with every use. This hoist is engineered to withstand demanding conditions and deliver exceptional lifting capabilities. Whether you are working on a construction site, in a warehouse, or any rugged environment, this electric hoist is up to the task.Renowned for their expertise in the industry, Harrington designed the NER030C-10 with utmost precision. Its unparalleled durability and reliability ensure seamless operation, meeting even the most demanding lifting requirements day after day.The 10' lift capacity of this chain hoist allows you to tackle lifting tasks with ease. From heavy machinery to beams and other materials, the NER030C can handle it all effortlessly. Its efficient design and superior functionality make it a trusted choice for professionals across various industries.Safety is a paramount concern when lifting heavy loads, and the NER030C does not compromise on that. Equipped with a range of safety features, this hoist ensures smooth and secure lifting operations. Designed to minimize the risk of accidents, it provides peace of mind during your lifting tasks.In conclusion, if you need a reliable, durable, and efficient electric chain hoist, look no further than the NER030C HARRINGTON NER Electric Chain Hoist. Its exceptional performance, robust construction, and adherence to safety standards make it the perfect choice for heavy-duty lifting in demanding conditions. Place your trust in Harrington's expertise and choose the NER030C for all your lifting needs.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
