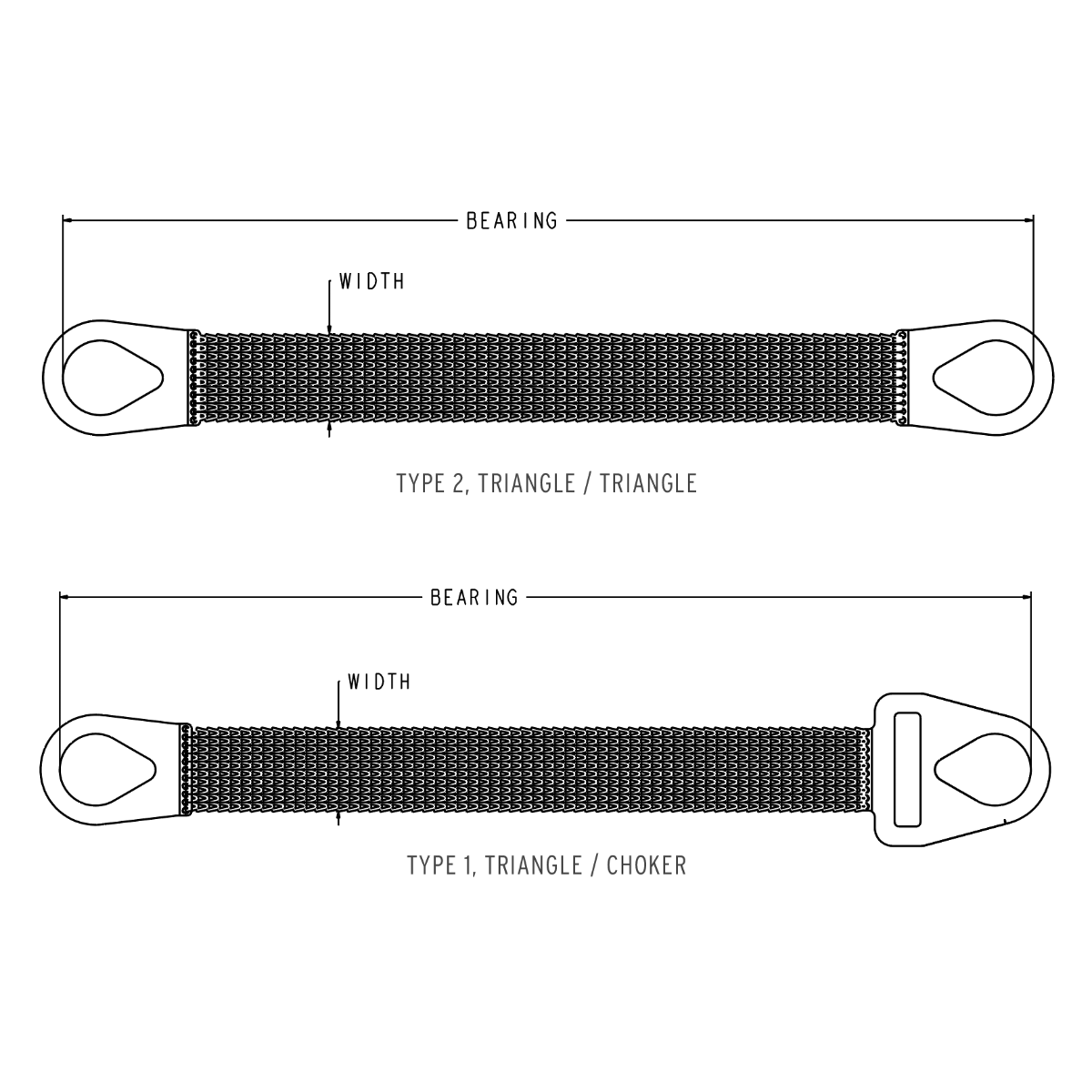

The Machining & Welding Tri-Tri Wire Mesh Sling 3X3 FT is a complete wire mesh sling assembly rated to 3,500 pounds, built 3 feet wide by 3 feet long with a triangle to triangle configuration.

The mesh fabric conforms to the load's shape, spreading contact pressure across a wider area than a chain or wire rope sling would.

The sling body is woven from galvanized steel wire mesh, with triangle or choker end fittings sized to match the rated capacity of the assembly.

Wire mesh handles heat and rough surfaces that would cut or melt a synthetic sling, which matters in foundry, forging, and scrap handling work.

From production floors to rail yards to municipal utility crews, this style of equipment gets used wherever a load needs to move safely between two points. Standardizing on purpose-built lifting equipment also makes training new operators easier, since the rigging setup stays consistent from lift to lift instead of changing based on whatever hardware happens to be nearby.

Rated capacity should always be treated as a hard limit, not a target, and a quick visual inspection before each lift is one of the simplest ways to keep a lifting operation safe. Make sure your operators are trained on the specific rigging setup this equipment requires, and confirm that anyone signing off on a lift understands how to read the working load limit and match it against the actual load being moved.

Durability matters as much as initial capacity when choosing rigging equipment, since hardware that wears unevenly or corrodes quickly ends up costing more over its service life. Choosing components built to recognized manufacturing standards is one of the simplest ways to avoid that added cost down the road.

Full specifications are listed below so you can confirm fit against your current rigging before it ships.

The Machining & Welding Tri-Tri Wire Mesh Sling 3X3 FT is ready to rig for your next coil, casting, or rough stock lift.

Product Info:
•  Working Load Limit: 3,500 lbs
•  Configuration: Triangle to Triangle
•  Width: 3 ft
•  Length: 3 ft
•  Shipping Weight: 8 lbs
