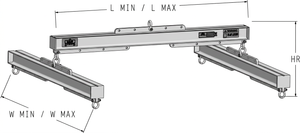

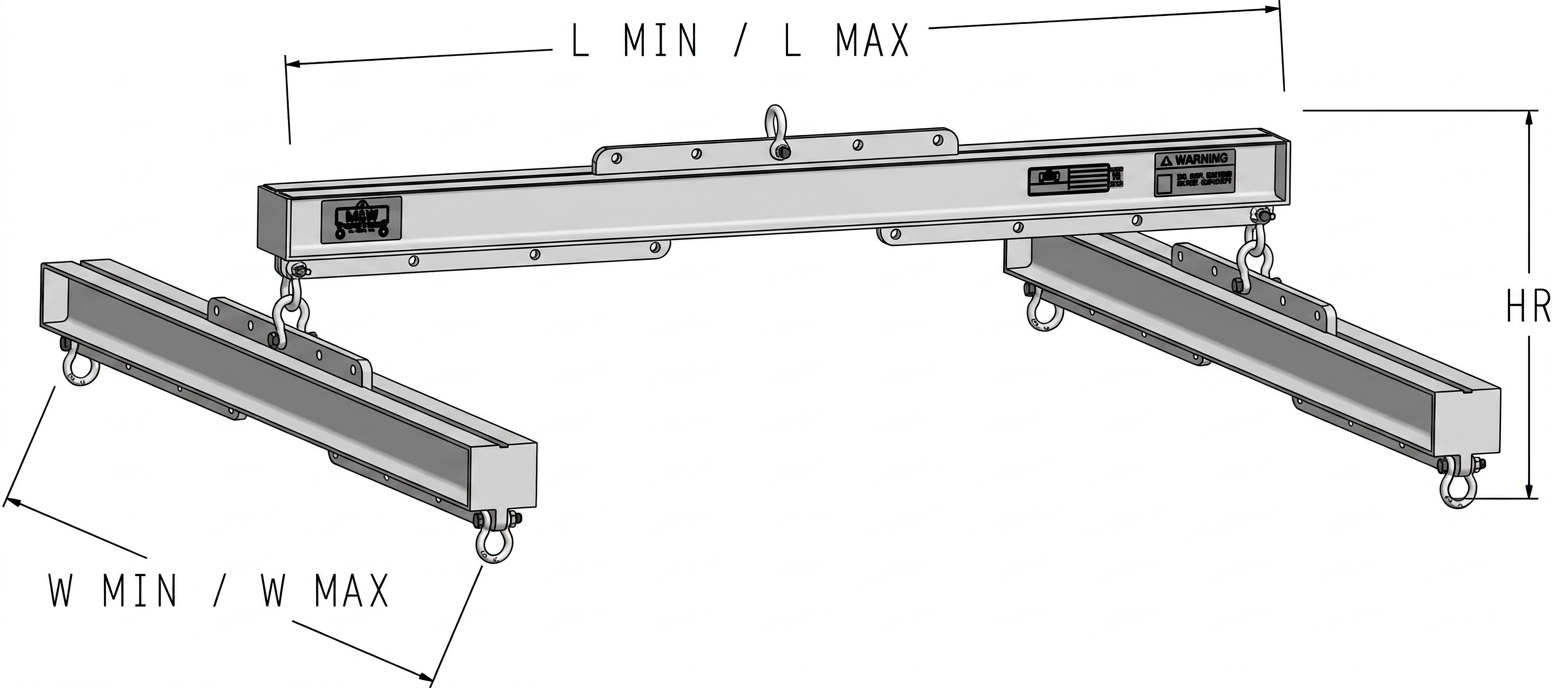

The Machining & Welding 2000 LB 6 FT Economy H-Beam gives you a 8 foot by 6 foot lifting frame rated to 2,000 pounds, built for loads a single straight beam cannot stabilize on its own.

The frame shape lets you attach slings at four corners instead of two, which reduces load sway and keeps the pick more controlled during travel.

Lift points are positioned at the frame corners, engineered to share the working load limit evenly across all four connections.

This style of beam is a practical fit for shops that regularly move wide or irregularly shaped equipment and need a stable, repeatable rigging setup.

Maintenance departments, fabrication shops, warehouses, and construction crews all rely on equipment in this category to handle lifts that come up again and again. Having the right beam or crane on hand means operators are not left rigging a load with mismatched slings or borrowed hardware, which keeps every lift consistent regardless of who is running it that day.

As with any lifting equipment, never exceed the rated working load limit, and inspect slings, hooks, shackles, and connection points before every use. Confirm compatibility with your hoist, crane, or trolley system before placing an order, and follow your facility's rigging and lockout procedures for every lift. A few minutes spent checking hardware condition and load balance up front is far cheaper than dealing with a dropped or shifted load later, and it keeps your team's daily routine consistent from one job to the next.

Well-built rigging hardware holds its rated capacity through years of regular use, provided it is inspected and stored properly between jobs. A dry, organized storage area away from corrosive chemicals or extreme temperature swings goes a long way toward extending the service life of steel components.

The specifications below cover everything you need to check compatibility with your equipment.

Add the Machining & Welding 2000 LB 6 FT Economy H-Beam to jobs where a straight beam has left you fighting a load that will not sit still.

Product Info:
•  Working Load Limit: 2,000 lbs
•  Frame Width: 8 ft
•  Frame Length: 6 ft
•  Style: H-frame, four-point lifting
•  Frame Material: Structural steel
•  Shipping Weight: 270 lbs
