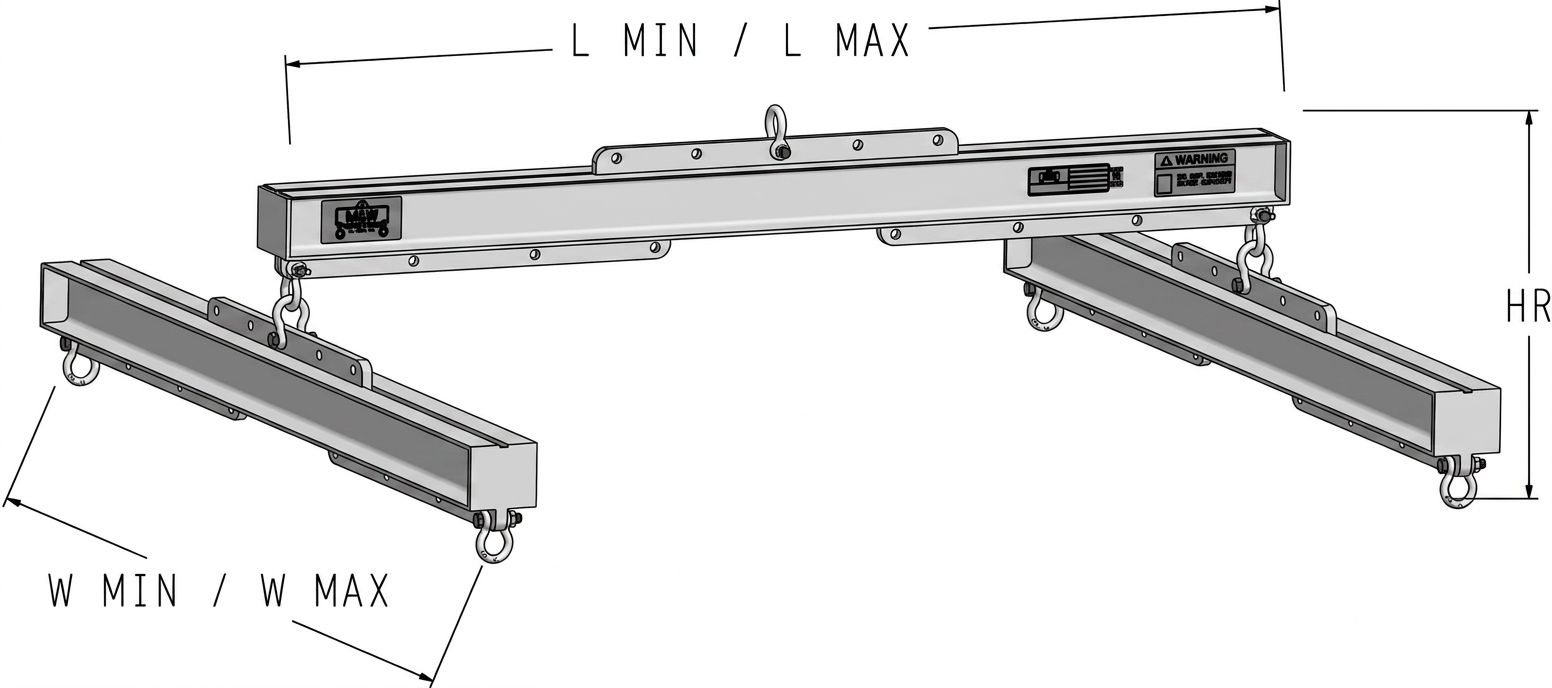

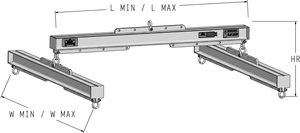

The Machining & Welding 1000 LB 4 FT Economy H-Beam is a wide-frame lift beam built for loads that need support across two dimensions. Sized 8 feet wide by 4 feet long, it carries a 1,000 pound working load limit.

Because the frame spans both dimensions of the load, it distributes weight more evenly across the rigging than a single straight lift beam would.

The frame is fabricated from structural steel in an H configuration, welded for rigidity so the full working load limit is supported at all four lift points.

Keeping a wide load level during the lift reduces the risk of shifting cargo or uneven sling tension, which an H-frame is specifically built to manage.

Maintenance departments, fabrication shops, warehouses, and construction crews all rely on equipment in this category to handle lifts that come up again and again. Having the right beam or crane on hand means operators are not left rigging a load with mismatched slings or borrowed hardware, which keeps every lift consistent regardless of who is running it that day.

Before putting any lifting equipment into service, verify it matches your hoist or crane setup and confirm the rated capacity covers your heaviest expected load with margin to spare. Routine inspection of welds, pins, and connection hardware helps catch wear before it becomes a safety issue. Keep a simple inspection log if your facility does not already have one, since tracking wear over time makes it easier to plan replacement before a part actually fails in use.

Properly rated hardware, stored and maintained correctly, tends to outlast the equipment it gets paired with. Building a simple habit of checking condition before each use costs very little time and pays off in fewer surprises when a piece of rigging hardware is actually under load.

Full specifications are listed below so you can confirm fit against your current rigging before it ships.

The Machining & Welding 1000 LB 4 FT Economy H-Beam is built for the loads in your shop that never quite balance right on a single beam.

Product Info:
•  Working Load Limit: 1,000 lbs
•  Frame Width: 8 ft
•  Frame Length: 4 ft
•  Style: H-frame, four-point lifting
•  Frame Material: Structural steel
•  Shipping Weight: 195 lbs
