The InMotion K Plus Series K808 R Full Variable System gives you smooth, proportional command over four separate motions from a single handheld transmitter, making it a strong fit for bridge, hoist, and trolley applications that need a fourth output. Instead of the fixed step speeds you get from many standard radio controls, this system delivers true full variable output, so you control acceleration and deceleration with precision and reduce the load swing and mechanical stress that come with abrupt starts and stops.

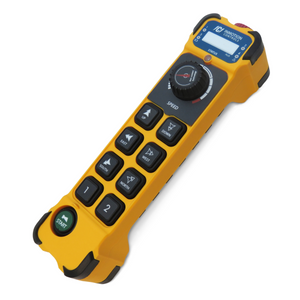

You get a lightweight, one hand transmitter that pairs with a receiving unit built for demanding industrial environments. The transmitter charges wirelessly on the included Qi charging pad, so you never have to open a battery compartment or keep spare batteries on hand, and the rechargeable NiMH batteries are included from day one. A built in G force shock detection feature can automatically disable the transmitter if it is dropped or struck hard enough to risk internal damage, which protects your investment and helps prevent a damaged unit from sending an unintended signal.

This system runs on 900 megahertz frequency technology using two GFSK modulation for a stable, reliable connection across a working range of 300 feet, or about 100 meters, even in facilities with significant RF noise from other equipment. The receiving unit auto senses supply voltage from 24 to 240 volts AC or 24 to 160 volts DC, so it installs cleanly on most existing electrical services without extra conversion hardware. Both the transmitter and receiving unit carry an IP65 protection rating and are housed in PA6 nylon reinforced with 30 percent glass fiber, giving you a rugged enclosure that stands up to dust, washdown, and the daily wear of a busy production floor.

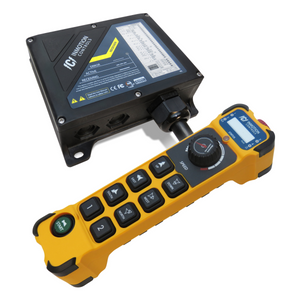

Every system arrives complete with one receiving unit, one transmitter with legend set, batteries, the Qi charging pad, a lanyard, mounting hardware, and installation instructions, so you have everything you need to get your crane back in service quickly. This system also complies with UL 61010-1 and CSA C22.2 standards and is FCC, IC, and CE compliant, giving you documentation you can rely on for safety audits and equipment records.

Product Info:
•  Motion configuration: 4 motion, full variable control
•  Frequency: 902.5 to 927.5 megahertz
•  Modulation: 2GFSK
•  Operating range: 300 feet, approximately 100 meters
•  Transmitter power: two 1.5 volt NiMH AA batteries, included
•  Transmitter dimensions: approximately 9.06 by 2.25 by 2.00 inches
•  Receiving unit power: 24 to 240 volts AC or 24 to 160 volts DC, auto sensing
•  Receiving unit dimensions: approximately 7.46 by 7.22 by 2.52 inches
•  Protection rating: IP65
•  Housing material: PA6 nylon, 30 percent glass filled
•  Included: receiving unit, transmitter with legend set, batteries, Qi charging pad, lanyard, mounting hardware, installation instructions
