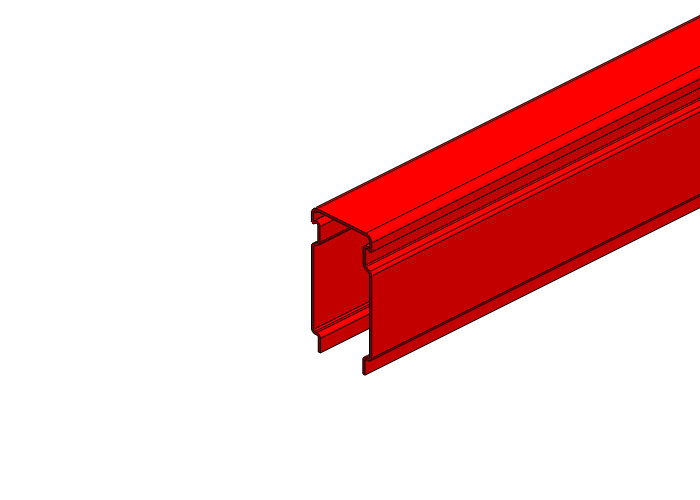

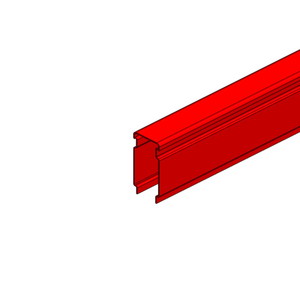

The XA-39295 is a 29-foot-long conductor bar cover designed for 1500 Amp Hevi-Bar II systems, made from red medium heat-rated polycarbonate. This heavy-duty insulation jacket provides robust mechanical protection, electrical insulation, and thermal resistance for busbar systems operating in elevated temperature environments.
Engineered from impact-resistant polycarbonate, this cover is ideal for use in facilities where ambient heat is above standard levels but does not require high-heat fiberglass reinforcement. Its red color serves as a thermal rating identifier, denoting suitability for medium heat zones found in many industrial plants, manufacturing lines, and material processing operations.
The 29-foot extrusion supports full-length conductor installations or large-section replacements and ensures reliable long-term operation with enhanced thermal stability, UV resistance, and compliance with safety requirements.
Key Features
Application: Conductor bar cover for 1500A Hevi-Bar II systems
Material: Medium Heat Polycarbonate
Color: Red (denotes medium heat rating)
Length: 29 feet
Function: Insulates, protects, and identifies conductor bars in heat-prone environments
Durability: Impact and temperature resistant; suitable for demanding indoor industrial use
Use Cases: Steel processing, automotive manufacturing, heavy material handling systems
