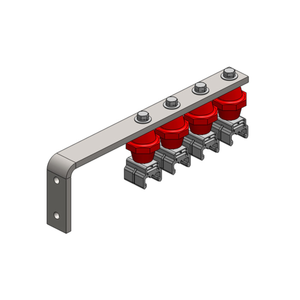

Hevi-Bar II, Bracket, Web, Stainless Steel, w/4 Polycarbonate Hangers, w/Insulators (for 500A Bar Only), 19.25 inch L Conductix XA-51786B

Write a Review
$319.33
$319.33
$271.43
(You save $47.90 )
SKU: XA-51786B
Weight: 9.22 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Hevi-Bar II, Bracket, Web, Stainless Steel, w/4 Polycarbonate Hangers, w/Insulators (for 500A Bar Only), 19.25 inch L Conductix XA-51786B

Hevi-Bar II, Bracket, Web, Stainless Steel, w/4 Polycarbonate Hangers, w/Insulators (for 500A Bar Only), 19.25 inch L Conductix XA-51786B

$319.33
$319.33
$271.43
(You save $47.90 )
The XA_51786B is a web-style mounting bracket constructed from stainless steel, engineered for use with Hevi_Bar II 500A conductor bars. With a 19.25-inch length, this bracket includes 4 polycarbonate hangers equipped with electrical insulators, delivering a combination of mechanical strength, corrosion resistance, and electrical isolation for demanding industrial environments. The stainless steel frame offers superior protection against corrosion, making this bracket ideal for outdoor, marine, or chemical plant environments. The polycarbonate hangers are impact-resistant and non-conductive, while the insulators ensure safe separation between the conductor bars and structural mounting surfaces. This design is particularly well-suited for high-reliability power systems such as overhead cranes, automated conveyors, and industrial electrification tracks. Key Features Supports 500A Hevi_Bar II Conductor Bars – Optimized for secure and stable bar mounting in medium-power systems. Stainless Steel Bracket – Provides outstanding corrosion resistance in harsh or corrosive environments. 4 Polycarbonate Hangers with Insulators – Combines rugged mechanical support with safe electrical isolation. 19.25-inch Length – Allows for solid, balanced support across bar spans. Web Bracket Design – Mounts directly to structural frameworks or beams, ensuring long-term mechanical integrity. Electrical Safety – Integrated insulators reduce the risk of grounding or arc faults. Ideal for Harsh Applications – Perfect for marine, outdoor, chemical, or high-humidity installations. Reliable for Industrial Power Systems – Commonly used in crane runways, conveyor electrification, and material handling systems.
