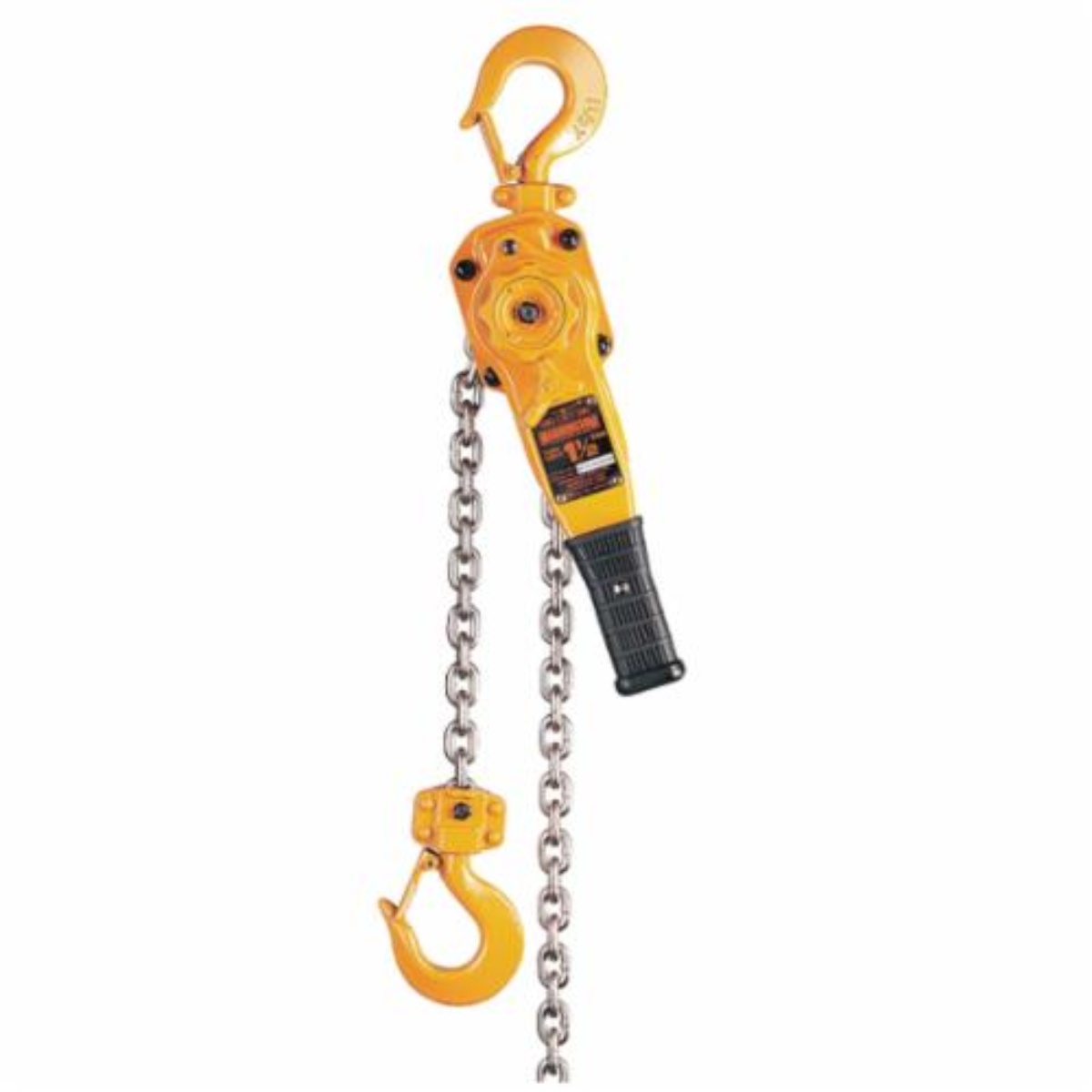

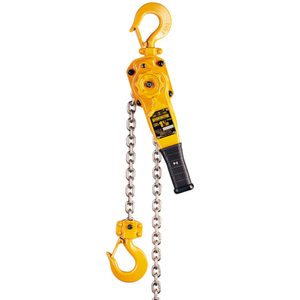

Harrington LB Series Lever Hoist - 2 Ton - 5 ft Lift

Write a Review
$983.34
$897.30
(You save $86.04 )
SKU: LB020-5
Condition: New
Availability: Subject to Availability
Weight: 16.00 LBS
Width: 6.00 (in)
Height: 7.00 (in)
Depth: 14.00 (in)
Shipping: Calculated at Checkout
Load Capacity: 2,500 - 4,999 lbs
Chain Length: 6 ft
Hook Opening: 1 7/16 in
Lever Length: 10 13/32 in
Manufacturers Warranty Length: 1 yr
Body Depth: 6 13/16 in
Body Width: 5 29/32 in
Minimum Retracted Length: 14 13/16 in
For Min Beam Flange Width: Not Applicable
For Min Beam Flange Height: Not Applicable
For Max Beam Flange Width: Not Applicable
For Max Beam Flange Height: Not Applicable
Maximum Lifting Length: 5 ft
Lifting Hook Opening Width: 1 13/32 in
Item: Lever Chain Hoist
Hoist Lift: 5 ft
Includes: Safety Latch Hooks
Chain: Nickel Plated
Standards: ANSI/ASME B30.21, ANSI/ASME HST-3M
Hoist Mount: Hook Mounted - No Trolley
Pull to Lift Rated Load: 59 lb
Min Between Hooks: 14 13/16 in
Brake: Weston Style Load Brake
Hoist Overload Protection: No
Finish: Powder Coated
Reeving: 1
Trolley Configuration: Hook Mounted-No Trolley
Color: Yellow
Features: Patented Hardening Process, Safety Tip Hook and Latch, State-Of-The-Art Chain Technology, Structural Steel Side Plates
Chain Material: Nickel Plated
Body Finish: Powder Coated
Maximum Pulling Capacity: 4,000 lb
Overload Protection Included: No
Includes Clutch: Clutch Not Included
Power Source: Lever
Lifting Hook Type: Hook with Safety Latch
Includes Brake: Brake Included
Number of Reeves: 1
Maximum Lifting Capacity: 4,000 lb
Lifting Hook Material: Chromium-Molybdenum Alloy Steel
Number of Load Chains: 1
Body Material: Steel
Operating Position: Horizontal, Vertical
Resistance Properties: Corrosion Resistant, Wear Resistant
Mount Type: Hook Mounted - No Trolley
Chain Grade: Grade 100
Brake Type: Weston Style
Chain Finish: Nickel Plated
Headroom: 14 13/16 in
Capacity: 2,500 - 4,999 lbs
Lift: 5 ft
Adding to cart… The item has been added
Harrington LB Series Lever Hoist - 2 Ton - 5 ft Lift

Harrington LB Series Lever Hoist - 2 Ton - 5 ft Lift

$983.34
$897.30
(You save $86.04 )

Harrington LB Series Lever Hoist - 2 Ton - 5 ft Lift

$983.34
$897.30
(You save $86.04 )

The LB020 HARRINGTON LB Lever Hoist is the ideal solution for any heavy lifting task you may encounter. Designed to handle the toughest jobs, this versatile hoist is a must-have for any worksite. Capacity 2 Ton, it is suitable for a variety of applications.One of the standout features of the LB020 lever hoist is its compact and low headroom design. This allows for easy operation even in tight spaces, making it perfect for warehouses, construction sites, and industrial settings. No matter where you need to lift, this hoist can effortlessly handle the task.Strength and durability are crucial when choosing a lever hoist, and the LB020 does not disappoint. Constructed from high-quality materials, it is built to withstand the toughest conditions. This hoist can stand up to real-world use, providing you with a reliable and long-lasting lifting solution.Whether you need to lift vertically, horizontally, inverted, or at any other angle, the LB020 lever hoist is up to the challenge. Its smooth and precise operation allows for easy control, ensuring your load can be lifted and positioned with confidence.When it comes to lever hoists, the LB020 is the number one choice in the United States. Trusted by professionals in various industries, this hoist has established itself as a leader in the market. It offers incredible performance, reliability, and value for money.Don't settle for anything less than the best. Choose the LB020 HARRINGTON LB Lever Hoist for all your heavy lifting needs. With its robust construction, compact design, and impressive lifting Capacity, this hoist is a game-changer. Invest in the LB020 lever hoist today and experience the difference it can make in your lifting operations.

All products sold by Harrington Hoists, Inc. (HHI) are warranted to be free from defects in material and workmanship from the date of shipment, with coverage periods varying by product type - 1 year for electric and air powered hoists (excluding (N)ER2 and EQ/SEQ hoists), powered trolleys, powered Tiger Track jibs and gantries, crane components, below-the-hook devices, and spare/replacement parts; 2 years for manual hoists and trolleys and beam clamps; 3 years for (N)ER2 hoists, EQ/SEQ hoists, (T)EM/(T)SEM hoists, and RY hoists; 5 years for manual Tiger Track jibs and gantries and hoist motor brakes for EQ/SEQ, (T)EM/(T)SEM, and RY; and 10 years for the (N)ER2 brake and TNER hoist motor brake - provided the buyer notifies HHI in writing within sixty (60) days of discovering any alleged defect and the product has been used according to manufacturer recommendations without abuse, lack of maintenance, misuse, negligence, or unauthorized repairs or alterations. If HHI's inspection confirms a defect in material or workmanship within the applicable warranty period, HHI will, at its discretion, repair or replace the part or product free of charge (not including installation), with delivery made F.O.B. HHI's place of business for U.S. customers or FCA HHI's U.S. location for international customers under Incoterms 2010; no warranty claim will be honored without valid proof of purchase, the customer must obtain a Return Goods Authorization before shipping the product freight-prepaid along with an explanation of the complaint, repaired products remain covered for the rest of the original warranty period, replacement parts installed after the original warranty period carry only a one-year replacement warranty (not including installation) from installation, and if no defect is found or the defect falls outside the warranty's scope, the customer is responsible for return shipping costs. HHI disclaims all other express or implied warranties, including merchantability or fitness for a particular purpose, and will not be liable for death, personal injury, property damage, or incidental, contingent, special, or consequential damages, losses, or expenses arising from the use or misuse of its products, regardless of whether such damage results from any act or failure to act by HHI, whether negligent, willful, or otherwise.
