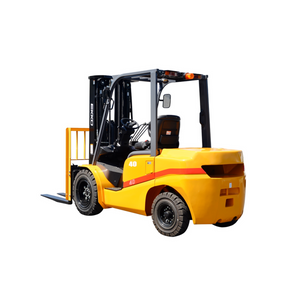

EKKO EK35D Forklift with Solid Pneumatic Tires 7,000 lb Capacity

Write a Review
$39,199.00
$34,998.75
(You save $4,200.25 )
SKU: EK35D
Weight: 10,967.00 LBS
Width: 51.00 (in)
Height: 87.00 (in)
Depth: 153.00 (in)
Shipping: Calculated at Checkout
Drive type: DIESEL
Type of operation: DIESEL
Load Capacity: 5,000 - 9,999 lbs
Load Center: 24 in
Lift height: 185 in
Wheelbase: 62.9 in
Service Weight: 8465 LBS
Tire material: Solid Pneumatic Tire
Wheel: 7.00-12-12PR/6.00-9-10PR
Service Brake: Hydraulic Floor Pedal
Engine Mode: MITSUBISHI 4EG
Engine rated power: Diesel 49/2250 HP/rpm
Power Type: Diesel
Max Lift Height: 185 in
Tire Type: Solid Pneumatic
Free Lift: 37.9 in
Overall Length: 153 in
Overall Width: 50.5 in
Adding to cart… The item has been added
EKKO EK35D Forklift with Solid Pneumatic Tires 7,000 lb Capacity

EKKO EK35D Forklift with Solid Pneumatic Tires 7,000 lb Capacity

$39,199.00
$34,998.75
(You save $4,200.25 )

The EK35D Diesel Forklift from EKKO Material Handling Equipment is engineered for demanding material handling environments where strength, durability, and efficiency are critical. Designed for warehouses, distribution centers, manufacturing facilities, and construction sites, this 4-wheel counterbalance forklift delivers reliable lifting power with industrial-grade performance.

Powered by a Mitsubishi 4EG diesel engine, the EK35D meets Tier 4 EPA emission standards while providing consistent torque and fuel efficiency for daily operations. With a 7,000 lb (3.5 ton) load capacity, this forklift is built to handle heavier palletized freight, machinery components, building materials, and bulk inventory with stability and control.

Operator comfort and safety are fully integrated into the EK35D’s design. The enlarged operating compartment increases workspace and visibility, while the heightened overhead guard with a large arc-shaped front leg enhances structural integrity without obstructing sightlines. The multifunctional suspended seat improves driver support, reduces vibration, and promotes balanced weight distribution—minimizing fatigue during extended shifts. An ergonomically positioned steering wheel adjustment mechanism allows operators to easily customize their driving position for improved control and productivity.

Noise reduction is achieved through the impedance composite muffler system, lowering overall sound output compared to traditional diesel forklifts. This feature supports safer communication and improved working conditions in both indoor and outdoor applications.

For precise material positioning, the EK35D is equipped with a Cascade® Side Shift, enabling accurate lateral fork movement for faster pallet alignment and reduced cycle times. The Shimadzu® 4-Way Valve (Pre-Plumbed) ensures smooth hydraulic responsiveness and simplifies the integration of attachments, enhancing versatility across various material handling tasks.

Constructed with a heavy-duty steel frame and reinforced mast assembly, the EK35D is designed for long-term durability under continuous operation. Whether you are loading trailers, stacking heavy inventory, or supporting industrial production lines, this diesel forklift delivers the performance and reliability your operation demands.


Specifications

  • Model: EK35D

  • Load Capacity: 7,000 lbs (3.5 Ton)

  • Fuel Type: Diesel

  • Engine: Mitsubishi 4EG – Tier 4 EPA Compliant

  • Configuration: 4-Wheel Counterbalance Forklift

  • Side Shift: Cascade® Side Shift (Standard)

  • Hydraulic System: Shimadzu® 4-Way Valve (Pre-Plumbed)

  • Operator Seat: Multifunctional suspended seat with vibration reduction

  • Steering: Adjustable steering wheel mechanism

  • Noise Reduction: Impedance composite muffler

  • Applications: Warehousing, distribution, construction, and manufacturing

EKKO Material Handling Equipment provides two separate limited warranties covering different equipment categories, both warranting products free from defects in workmanship and materials for the original purchaser, with final determination of compliance reserved by EKKO. Under the EKKO Advantage Warranty (electric equipment), coverage varies by class and part: wearable items such as tires, bulbs, and rubber parts carry a 30-day warranty across all classes; Class I and II motorized/rider equipment require labor fees within six months to be pre-approved on specified models or they go uncovered; a one-year warranty covers parts such as forks, platforms, handles, transmission components, weldments, motors, controllers, and chargers across Classes I, II, and III (with specific model lists for manual, semi-electric, and full-electric equipment); frame, forks, and mast carry a three-year warranty across all classes; batteries are covered for one year (lithium and flooded/lead-acid, with exclusions for improper use, degradation, or normal wear) on most models, with select lithium-battery models extended to five years; and scissor lifts follow the same 30-day wearable-parts and one-year full-electric-component structure. Under the EKKO LPG/Diesel Warranty, coverage begins at dealer purchase and is non-transferable, with frame, forks, and mast fully covered for three years or 6,000 hours, the engine for two years or 4,000 hours, and general unit parts for one year or 2,000 hours (whichever comes first in each case); batteries and wearable items like tires, bulbs, and lights carry a 30-day warranty excluding normal wear or abuse; labor fees must be pre-approved and can be requested within six months or 1,000 operating hours, with EKKO covering up to 60% of labor cost and 1.5 hours of allowed travel time, while transportation costs are otherwise excluded; parts requiring inspection must be returned within 30 days or the dealer will be charged; and claims are settled via credit invoice rather than a check. Across both warranties, claims must be submitted with a completed claim form, a photo of the data plate, defect-demonstrating pictures/video, and a detailed failure explanation to Support@ekkolifts.com, with incomplete submissions resulting in denial and processing not beginning until documentation is complete; dealers bear all inbound/outbound shipping costs, cannot amend a parts purchase order to reflect warranty status after the fact, must obtain a Return Authorization Number before returning equipment, must leave items like electrical controls and drive wheel assemblies unopened without prior approval, and must notify EKKO within 30 days of receiving incorrect or defective parts; end-users must go through their authorized dealer first, escalating to EKKO directly if dissatisfied, and retain state-specific legal rights beyond this warranty. Both warranties exclude coverage for normal wear and tear, abuse (neglect, misuse, overloading, unauthorized alterations), lack of maintenance, freight damage (which must be documented on the Proof of Delivery and reported to the freight company, not claimed as warranty), customer preference adjustments like software updates, and units with a defaced or missing serial number; both state that this limited warranty is EKKO's exclusive warranty, disclaim all other express or implied warranties including merchantability or fitness for a particular purpose, exclude liability for special, exemplary, punitive, incidental, or consequential damages regardless of claim origin, and limit EKKO's sole liability to repairing or replacing defective parts under normal and proper use within the warranty period upon a properly submitted and approved claim.
