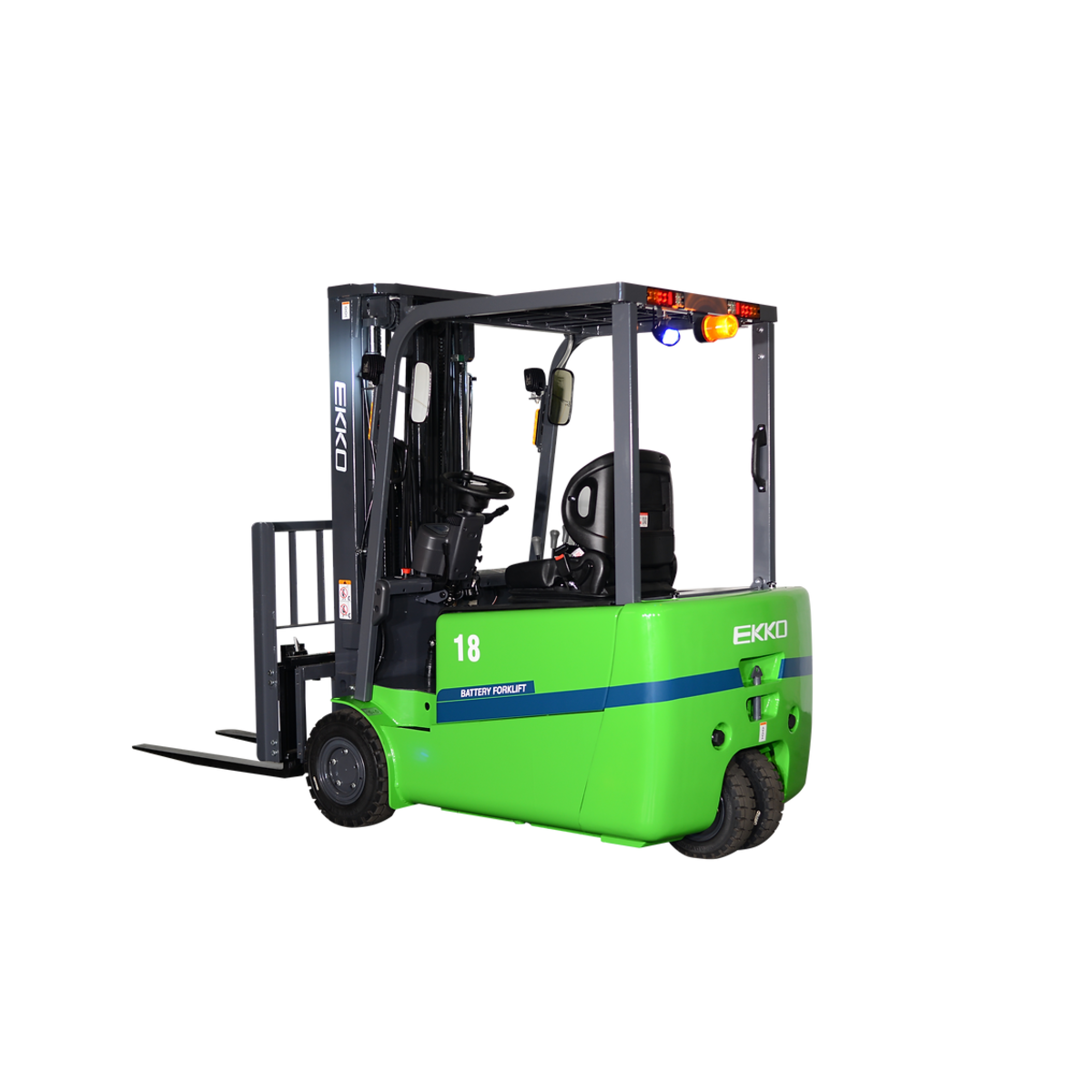

EKKO EK18AT-185Li 3-Wheel Lithium Forklift, 4,000 lb Capacity, 185" Lift Height

Write a Review
$36,399.00
$32,498.75
(You save $3,900.25 )
SKU: EK18AT-185Li
Weight: 7,418.00 LBS
Width: 42.00 (in)
Height: 85.00 (in)
Depth: 117.00 (in)
Shipping: Calculated at Checkout
Drive type: Lithium Forklift
Type of operation: Rider
Load Capacity: 2,500 - 4,999 lbs
Lift height: 185 in
Load Center: 24 in
Free Lift: 43.7 in
Battery: 48V/202Ah Lithium
3-Phase 480V Charger: Optional 220V & 110V
Engine Mode: INMOTION Controller
Side Shift: Cascade
Power Type: Electric (Lithium-Ion)
Max Lift Height: 185 in
Turning Radius: 65.9 in
Fork Size: 42 in
Overall Length: 116.9 in
Overall Width: 44.1 in
Adding to cart… The item has been added
EKKO EK18AT-185Li 3-Wheel Lithium Forklift, 4,000 lb Capacity, 185" Lift Height

EKKO EK18AT-185Li 3-Wheel Lithium Forklift, 4,000 lb Capacity, 185" Lift Height

$36,399.00
$32,498.75
(You save $3,900.25 )

The EK18AT-185Li 3-Wheel Lithium Forklift from EKKO Material Handling Equipment is engineered to deliver powerful, efficient, and precise material handling in space-restricted environments. Designed for warehouses, loading docks, manufacturing floors, and distribution centers, this advanced lithium-powered forklift combines compact maneuverability with enhanced performance for demanding daily operations.

Built with a dual motor drive system, the EK18AT-185Li offers improved acceleration, traction, and load stability compared to standard single-motor units. This configuration ensures smoother handling when transporting palletized goods, loading and unloading trucks, or navigating tight aisles. The 3-wheel design provides a tight turning radius, allowing operators to maximize storage density while maintaining safe and controlled operation.

Constructed from high-quality steel and reinforced industrial components, the EK18AT-185Li is designed to withstand heavy usage, directional changes, and operational impacts. Its durable drive system maintains consistent performance across repetitive lifting cycles, making it ideal for multi-shift environments and high-volume material flow.

The integrated lithium-ion battery system is a key operational advantage. Lithium technology supports faster charging, opportunity charging during breaks, and significantly reduced maintenance compared to traditional lead-acid batteries. This results in lower downtime, stable power output throughout the shift, and increased productivity. Additionally, the electric system produces zero emissions and operates with reduced noise levels—making it ideal for indoor facilities prioritizing air quality and operator comfort.

Ergonomics and safety are central to the design. The intuitive control layout, stable chassis, and balanced weight distribution allow operators to maintain precise load control and reduce fatigue during extended shifts.

If your operation requires a compact forklift with increased power, advanced battery efficiency, and dependable durability, the EK18AT-185Li is a high-performance solution built to optimize modern material handling workflows.


Specifications

  • Model: EK18AT-185Li

  • Type: 3-Wheel Lithium Electric Forklift

  • Load Capacity: 4,000 lbs (1.8 Ton)

  • Power Source: Lithium-Ion Battery

  • Drive System: Dual Motor Drive for enhanced traction and control

  • Configuration: Compact 3-wheel design with tight turning radius

  • Construction: High-quality steel frame and heavy-duty industrial components

  • Operation: Zero emissions, low-noise performance

  • Charging: Fast charging with opportunity charging capability

  • Applications: Warehouses, loading docks, trucks, stock rooms, manufacturing facilities

EKKO Material Handling Equipment provides two separate limited warranties covering different equipment categories, both warranting products free from defects in workmanship and materials for the original purchaser, with final determination of compliance reserved by EKKO. Under the EKKO Advantage Warranty (electric equipment), coverage varies by class and part: wearable items such as tires, bulbs, and rubber parts carry a 30-day warranty across all classes; Class I and II motorized/rider equipment require labor fees within six months to be pre-approved on specified models or they go uncovered; a one-year warranty covers parts such as forks, platforms, handles, transmission components, weldments, motors, controllers, and chargers across Classes I, II, and III (with specific model lists for manual, semi-electric, and full-electric equipment); frame, forks, and mast carry a three-year warranty across all classes; batteries are covered for one year (lithium and flooded/lead-acid, with exclusions for improper use, degradation, or normal wear) on most models, with select lithium-battery models extended to five years; and scissor lifts follow the same 30-day wearable-parts and one-year full-electric-component structure. Under the EKKO LPG/Diesel Warranty, coverage begins at dealer purchase and is non-transferable, with frame, forks, and mast fully covered for three years or 6,000 hours, the engine for two years or 4,000 hours, and general unit parts for one year or 2,000 hours (whichever comes first in each case); batteries and wearable items like tires, bulbs, and lights carry a 30-day warranty excluding normal wear or abuse; labor fees must be pre-approved and can be requested within six months or 1,000 operating hours, with EKKO covering up to 60% of labor cost and 1.5 hours of allowed travel time, while transportation costs are otherwise excluded; parts requiring inspection must be returned within 30 days or the dealer will be charged; and claims are settled via credit invoice rather than a check. Across both warranties, claims must be submitted with a completed claim form, a photo of the data plate, defect-demonstrating pictures/video, and a detailed failure explanation to Support@ekkolifts.com, with incomplete submissions resulting in denial and processing not beginning until documentation is complete; dealers bear all inbound/outbound shipping costs, cannot amend a parts purchase order to reflect warranty status after the fact, must obtain a Return Authorization Number before returning equipment, must leave items like electrical controls and drive wheel assemblies unopened without prior approval, and must notify EKKO within 30 days of receiving incorrect or defective parts; end-users must go through their authorized dealer first, escalating to EKKO directly if dissatisfied, and retain state-specific legal rights beyond this warranty. Both warranties exclude coverage for normal wear and tear, abuse (neglect, misuse, overloading, unauthorized alterations), lack of maintenance, freight damage (which must be documented on the Proof of Delivery and reported to the freight company, not claimed as warranty), customer preference adjustments like software updates, and units with a defaced or missing serial number; both state that this limited warranty is EKKO's exclusive warranty, disclaim all other express or implied warranties including merchantability or fitness for a particular purpose, exclude liability for special, exemplary, punitive, incidental, or consequential damages regardless of claim origin, and limit EKKO's sole liability to repairing or replacing defective parts under normal and proper use within the warranty period upon a properly submitted and approved claim.
