Double Rail Corner Column
Write a Review
HANDLE IT

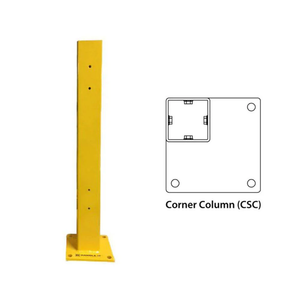

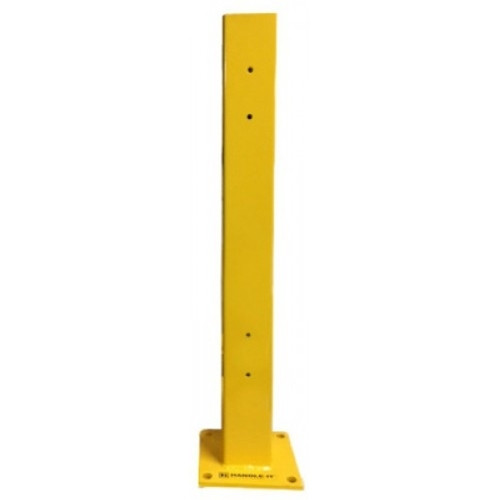

Double Rail Corner Column
Double Rail Corner Column
CSC-2 Warehouse Guard Rail System
Improve workplace safety and protect valuable assets with the CSC-2 Warehouse Guard Rail System, a rugged industrial safety barrier engineered for warehouses, manufacturing facilities, distribution centers, and commercial operations. Designed to create a clear separation between pedestrian traffic and powered industrial vehicles, the CSC-2 helps reduce accidents, prevent equipment damage, and maintain efficient facility operations in high-traffic environments.
Manufactured from high-quality structural steel, the CSC-2 guard rail system delivers dependable impact resistance and long-lasting durability. Rated to withstand impacts of up to 10,000 lbs at 4 mph, this heavy-duty barrier system is built to handle collisions from forklifts, pallet jacks, carts, and other material handling equipment commonly found in industrial facilities. Its highly visible design also improves traffic awareness and supports safer employee movement throughout the workplace.
The CSC-2 is stocked in rail lengths ranging from 2 feet to 10 feet, making it easy to customize protection for a variety of applications, from narrow walkways to expansive loading and storage areas. Customers can select from single-high 18-inch columns for lower-level protection or double-high 43-inch columns for enhanced safety coverage around critical equipment and infrastructure. Flexible mounting options€”including center-mounted, offset-mounted, and corner-mounted configurations€”allow the system to adapt easily to virtually any facility layout.
Designed for both permanent and flexible installations, the CSC-2 offers standard bolted rails for maximum stability as well as lift-out rail options for quick access to restricted or service areas. The universal 4-way mounting system simplifies installation and future expansion, helping facilities adapt as operational needs evolve. Every system includes all required installation hardware, including anchors, connecting bolts, and end caps for a complete and efficient setup.
The CSC-2 Warehouse Guard Rail System is ideal for pedestrian walkways, in-plant offices, machinery protection, rack protection, and shipping and receiving zones. Whether you are improving OSHA-focused workplace safety or protecting high-value infrastructure, the CSC-2 provides reliable industrial-grade performance you can trust.
Specifications
- SKU: CSC-2
- Product Type: Industrial warehouse guard rail system
- Material: Heavy-duty structural steel
- Impact Capacity: 10,000 lbs at 4 mph
- Available Rail Lengths: 2€² to 10€²
- Column Height Options:
- Single-high: 18€³
- Double-high: 43€³
- Mounting Configurations: Center, Offset, or Corner-mounted
- Mounting Style: Universal 4-way mounting system
- Rail Options: Standard bolted rails or removable lift-out rails
- Included Hardware: Anchors, bolts, caps, and installation hardware
- Common Applications: Warehouse safety barriers, forklift traffic separation, rack protection, pedestrian walkways, machinery protection, loading docks, and shipping/receiving areas
Handle It Inc. provides a robust warranty from the delivery date, covering defects in materials and workmanship, provided that maintenance guidelines in the owner"s manual are followed and usage limits are not exceeded. See chart for list of products and length of warranty. Throughout the warranty period, Handle It Inc. will, at its discretion, repair or replace any defective components.
Length of Warranty
- Impact Protection Products: 3 Years
- Semi-Automatic Pallet Wrappers (SWM-SA): 3 Years
- Mobile Robot Series (SWM-MR): 2 Years
- Rotating Arm Series (SWM-RA): 3 Years
- Semi-Automatic Orbital Wrappers (OWM-SA): 3 Years
- Fully Automatic Pallet Wrappers (SWM-FA): 2 Years
- Fully Automatic Orbital Wrappers (OWM-FA): 2 Years
- Pallet Strapping Systems Horizontal/Vertical (PSM-FA): 2 Years
- Pallet Strapping Head & Track: 1 Year
- Stretch Hooder (SH-CORE, SH-MAX): 2 Years
*Parts and Components Only, Does Not Include Labor Expenses
Exclusions: Wear parts such as e.g., belts, fuses, light bulbs, circuit breakers, brakes, motor brushes, bearings, slip rings, wheels, rollers etc. are excluded from this warranty. Proof of purchase is required for the warranty and is non-transferrable. The shipping cost for returning defective components is the responsibility of the buyer and the shipment must be accompanied by an RMA number. The shipping cost to ship the replacement component to the buyer is the responsibility of Handle It Inc. This limited warranty does not cover labor expenses for removal or reinstallation of components.
This limited warranty does not cover damage caused by foreign objects, or damage resulting from adverse environmental conditions such as: water, lightning strikes, temperatures outside of listed range, or power surges. It also excludes coverage for damage due to negligence, accidents, improper use, abuse, misuse, exceeding rated capacities, failure to adhere to operating instructions, or unauthorized alterations to the product. For alterations to be covered, written authorization from Handle It Inc. is required.
Dealers and/or end-users are responsible for ensuring that assembly and start-up procedures adhere strictly to the manufacturer"s guidelines. Unauthorized alterations or modifications to the equipment, without explicit approval from an HII representative, can adversely affect performance, pose safety risks, and potentially void the warranty. Additionally, failure to follow these guidelines during assembly or start-up may also void the warranty. Proper training for personnel and strict adherence to protocols are essential to minimize the risk of improper installation, which can lead to operational issues and damage to the equipment.
