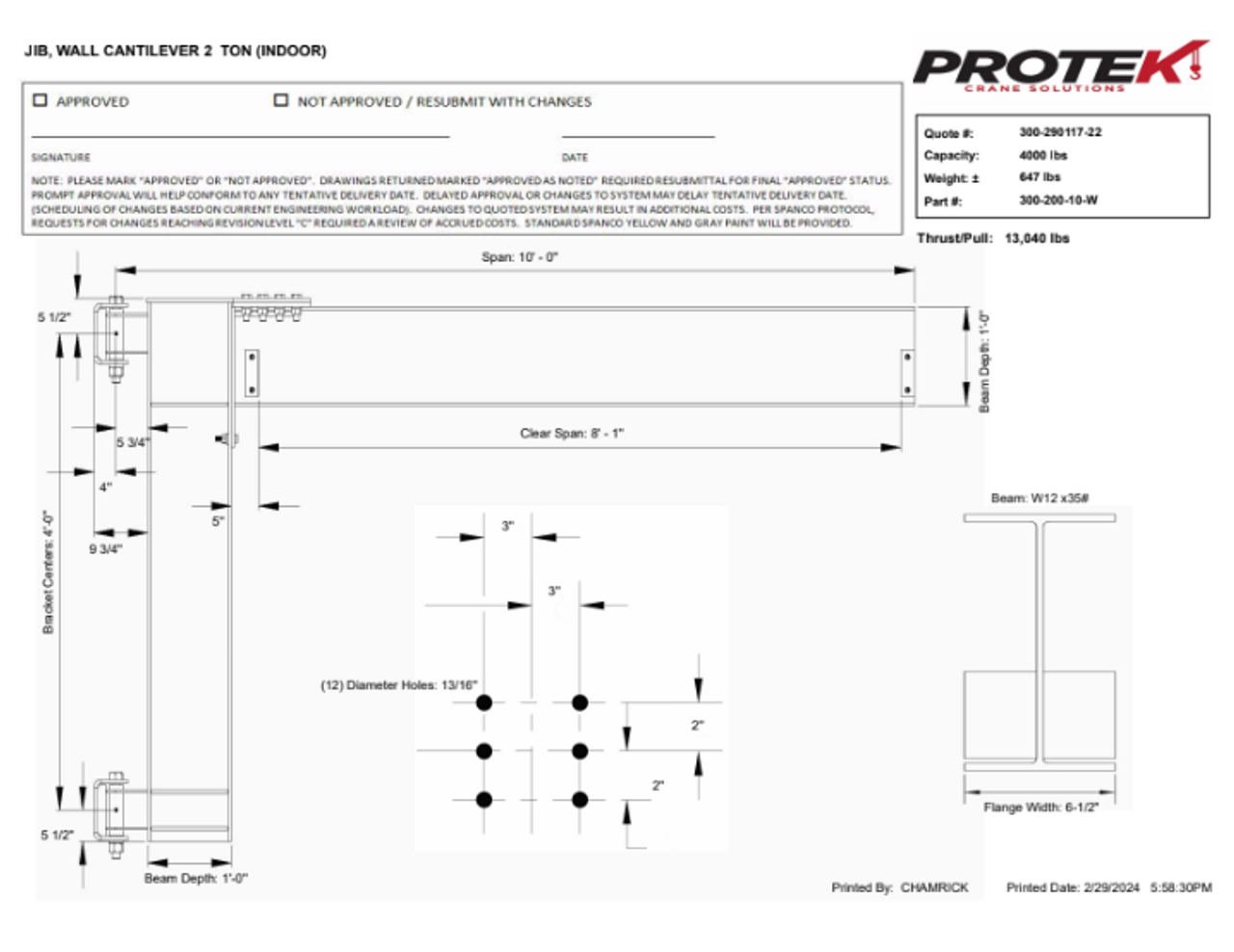

JIB, WALL CANTILEVER, Bridge Capacity: 4000 lbs, Span: 10' - 0'', Clear Span: 8' - 1'', Support Bracket Centers: 4'-0", Beam Size: W12 x35#, Flange Width: 6-1/2", Thrust/Pull: 13,040 lbs, 300-200-10-W SPANCO

Product Overview

• Capacity: The JIB, WALL CANTILEVER 1/4 TON (INDOOR) is engineered to support a maximum load capacity of 4000 lbs, making it suitable for heavy-duty lifting applications in indoor environments.

• Span: With a span of 10 feet, this jib provides extended coverage within a defined workspace, allowing for efficient material handling and lifting operations over a wider area.

• Clear Span: The clear span of 8 feet and 1 inch ensures unobstructed movement of loads, enabling smooth and safe lifting operations without interference from surrounding structures.

• Support Bracket Centers: Positioned at intervals of 4 feet, the support bracket centers ensure stable mounting and distribution of loads, enhancing safety and stability during lifting tasks.

• Beam Size: Constructed with a W12x35# beam, this jib offers robust support and structural integrity, ensuring reliable performance and durability under heavy loads.

• Flange Width: The flange width measures 6-1/2 inches, contributing to the jib's stability and strength, ensuring secure attachment and lifting of heavy loads.

• Thrust/Pull: Capable of withstanding a thrust/pull force of up to 13,040 lbs, this jib ensures exceptional stability and safety during lifting operations, providing operators with confidence and peace of mind.

• Coating & Painting: Finished with a spray of yellow paint, the jib is protected against corrosion and provides high visibility in indoor environments, enhancing safety and longevity.

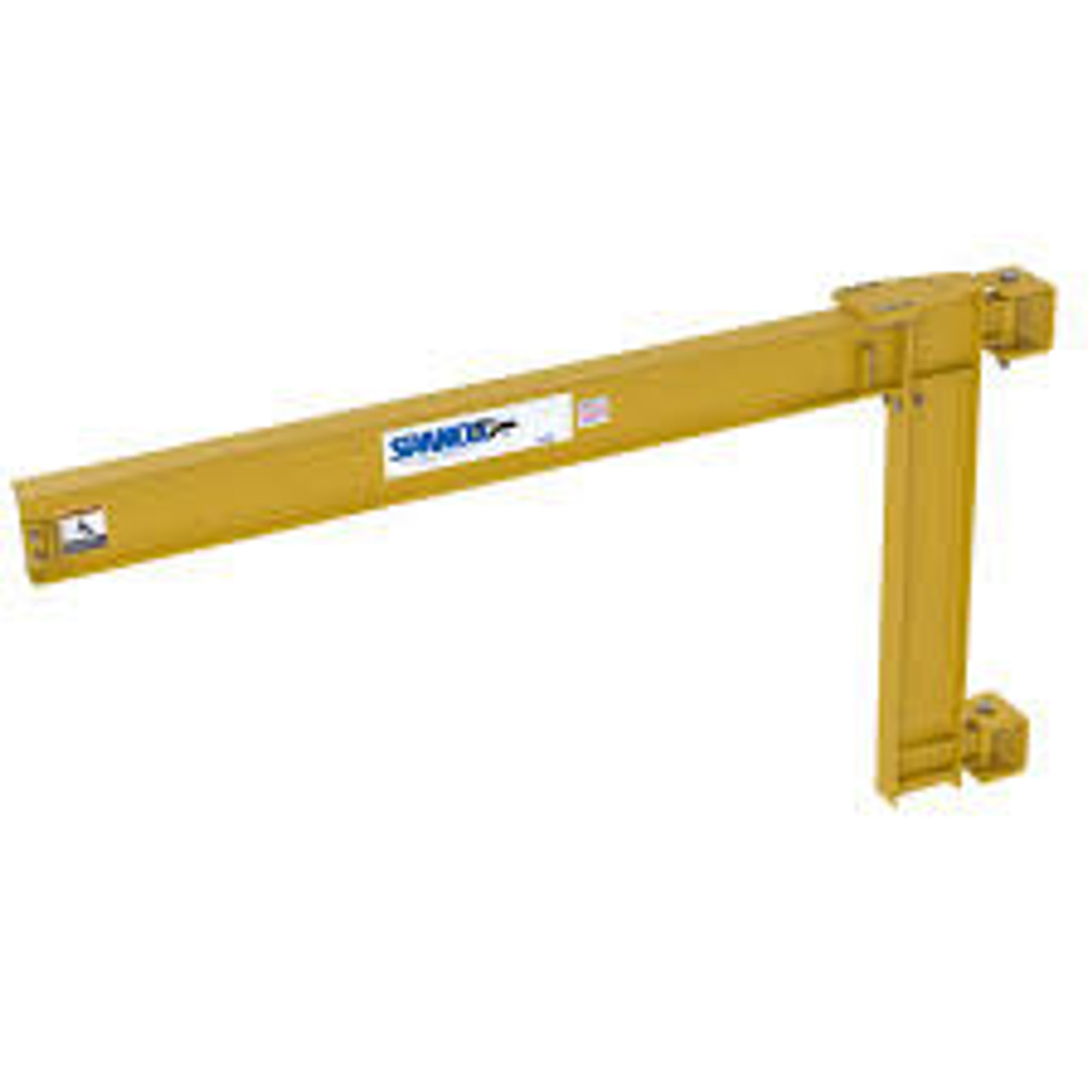

JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 4000 lbs
Span: 10' - 0''
Clear Span: 8' - 1''
Support Bracket Centers: 4'-0"
Beam Size: W12x35#
Flange Width: 6-1/2"
Thrust/Pull: 13,040 lbs
Coating & Painting: PAINT, SPRAY YELLOW
