Product Overview
-
Capacity: The JIB, WALL CANTILEVER 1/4 TON (INDOOR) is designed to handle a maximum load capacity of 2000 lbs, making it suitable for heavy lifting tasks in indoor environments.
-
Span: With a span of 14 feet, this jib provides extensive coverage across the workspace, allowing for efficient material handling and lifting operations within indoor settings.
-
Clear Span: The clear span of 12 feet and 3 inches ensures unobstructed movement of loads, enabling smooth and safe lifting operations without interference from surrounding structures.
-
Support Bracket Centers: Positioned at intervals of 5 feet, the support bracket centers ensure stable mounting and distribution of loads, enhancing safety and stability during lifting tasks.
-
Beam Size: Constructed with a W10x30# beam, this jib offers robust support and structural integrity, ensuring reliable performance and durability under load.
-
Flange Width: The flange width measures 6-1/2 inches, contributing to the jib's stability and strength, ensuring secure attachment and lifting of loads.
-
Thrust/Pull: Capable of withstanding a thrust/pull force of up to 7800 lbs, this jib ensures exceptional stability and safety during lifting operations, providing peace of mind for operators.
-
Coating & Painting: Finished with a spray of yellow paint, the jib is protected against corrosion and provides high visibility in indoor environments, enhancing safety and longevity.

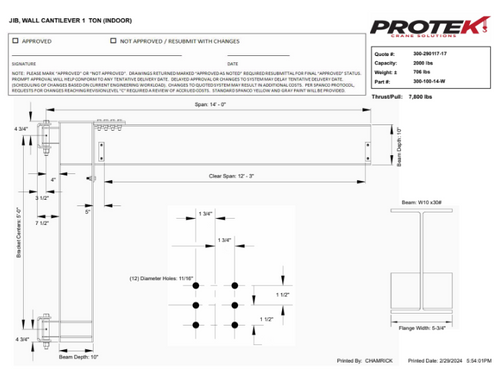

JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 2000 lbs
Span: 14' - 0''
Clear Span: 12' - 3''
Support Bracket Centers: 5'-0"
Beam Size: W10x30#
Flange Width: 6-1/2"
Thrust/Pull: 7800 lbs
Coating & Painting: PAINT, SPRAY YELLOW
Product Videos
Videos Hide Videos Show Videos
Custom Field
Product Reviews
Recommended
-

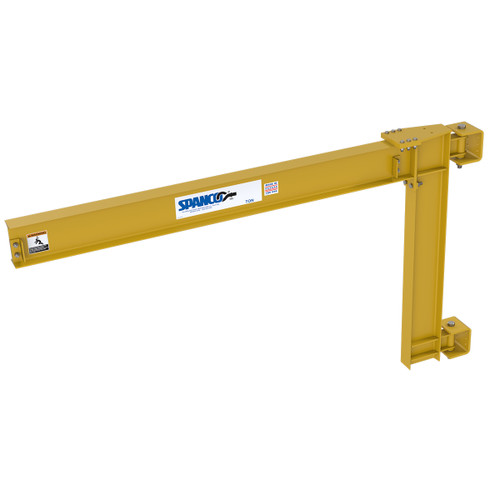

JIB, WALL CANTILEVER, Bridge Capacity: 1000 lbs, Span: 16' - 0'', Clear Span: 14' - 3'', Support Bracket Centers: 4'-0", Beam Size: W10x30#, Flange Width: 5-3/4", Thrust/Pull: 6090 lbs, 300-050-16-W SPANCO
