Product Overview

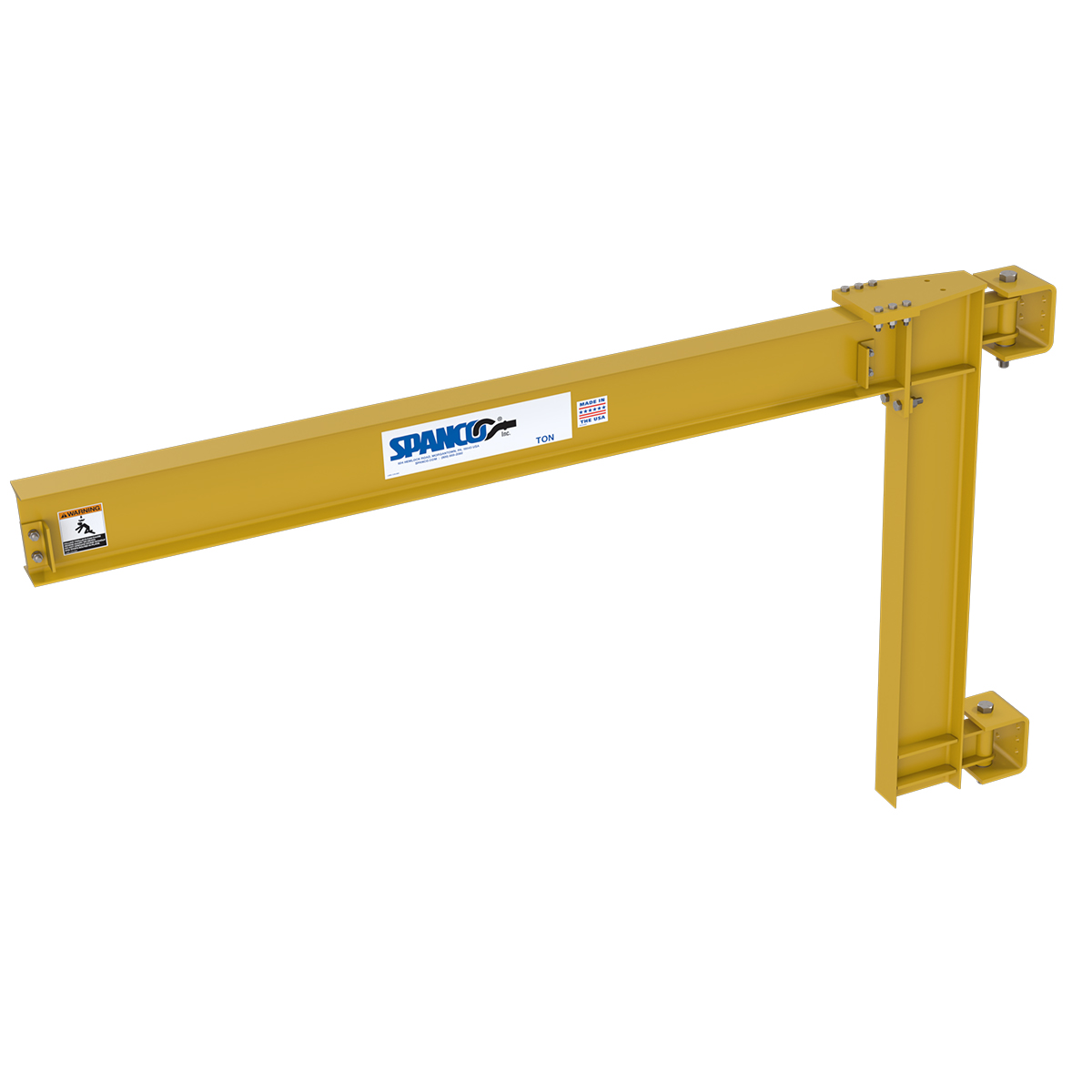

JIB, WALL CANTILEVER 1/4 TON (INDOOR)
-
Capacity: The jib crane is designed to lift loads of up to 1000 lbs, suitable for moderate lifting applications within indoor environments.
-
Span: It has a span of 8 feet, providing adequate coverage for lifting and maneuvering loads within a confined space.
-
Clear Span: With a clear span of 6 feet and 5 inches, the crane offers unobstructed movement of materials, ensuring efficient workflow and versatility in handling various loads.
-
Support Bracket Centers: The support brackets are positioned at intervals of 4 feet, ensuring stable support and structural integrity throughout the crane's operation.
-
Beam Size: The crane features a W10 x 30# steel beam, known for its strength and load-bearing capacity, ensuring reliable performance during lifting operations.
-
Flange Width: The flange width of the beam is 4 inches, providing stability and structural support to the crane assembly, enhancing safety and durability.
-
Thrust/Pull: The crane has a thrust/pull capacity of 2590 lbs, ensuring stability and safety during lifting and maneuvering tasks.
-
Coating & Painting: Coated with yellow spray paint, the crane offers corrosion resistance and high visibility for enhanced safety within indoor environments.
JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 1000 lbs
Span: 8' - 0''
Clear Span: 6' - 5''
Support Bracket Centers: 4'-0"
Beam Size: W10 x30#
Flange Width: 4"
Thrust/Pull: 2590 lbs
Coating & Painting: PAINT, SPRAY YELLOW
