Product Overview
-
Capacity: Designed to handle heavy loads with ease, this jib boasts a lifting capacity of 2000 lbs, providing versatility and efficiency in various indoor lifting applications.
-
Span: With a generous span of 12 feet, this jib offers extensive coverage, enabling precise positioning and efficient material handling across indoor work areas.
-
Clear Span: Featuring a clear span of 10 feet 4 inches, this jib ensures unobstructed movement beneath the boom, facilitating smooth and seamless lifting operations.
-
Height Under Boom: The height under the boom is currently on hold, allowing for precise adjustment to meet specific lifting requirements while ensuring optimal clearance and safety during operations.
-
Beam Size: Constructed with a sturdy W10 x 30# beam, this jib provides exceptional strength and stability, ensuring reliable support for lifting tasks within its capacity range.
-
Flange Width: The beam boasts a substantial flange width of 5 3/4 inches, offering secure attachment points and uniform load distribution for enhanced stability and safety during lifting operations.
-
Mast Diameter: With a robust mast diameter of 14 inches, this jib provides superior support and stability, enabling precise and controlled lifting maneuvers with confidence.
-
Total Height: Standing at a total height of 12 feet 10 inches, this jib is meticulously designed to fit seamlessly within indoor spaces while providing ample clearance for lifting operations, optimizing workspace utilization and safety.
-
Overturning Moment: Engineered to withstand external forces, this jib features an overturning moment of 436000 in-lbs, ensuring stability and reliability during demanding lifting tasks.
-
Anchor Bolt Load: The anchor bolt load is rated at 4400 lbs, ensuring secure attachment to the floor and preventing movement or displacement during operation, enhancing safety and stability.
-
Coating & Painting: Finished with a durable coating of spray yellow paint, this jib not only enhances visibility but also provides corrosion resistance, ensuring longevity and durability in indoor environments.

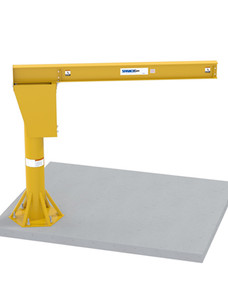

FOUNDATIONLESS JIB, BASE PLATE MOUNTED 600 SERIES 2000 LBS (INDOOR)
Capacity: 2000 lbs
Span: 12' - 0''
Clear Span: 10' - 4''
Height Under Boom: 12' - 0'' **(Hold)**
Beam Size: W10 x 30#
Flange Width: 5 3/4"
Mast Diameter: 14''
Total Height: 12' -10''
Overturning Moment: 436000 In * lbs
Anchor Bolt Load: 4400 lbs
Coating & Painting: PAINT, SPRAY YELLOW
