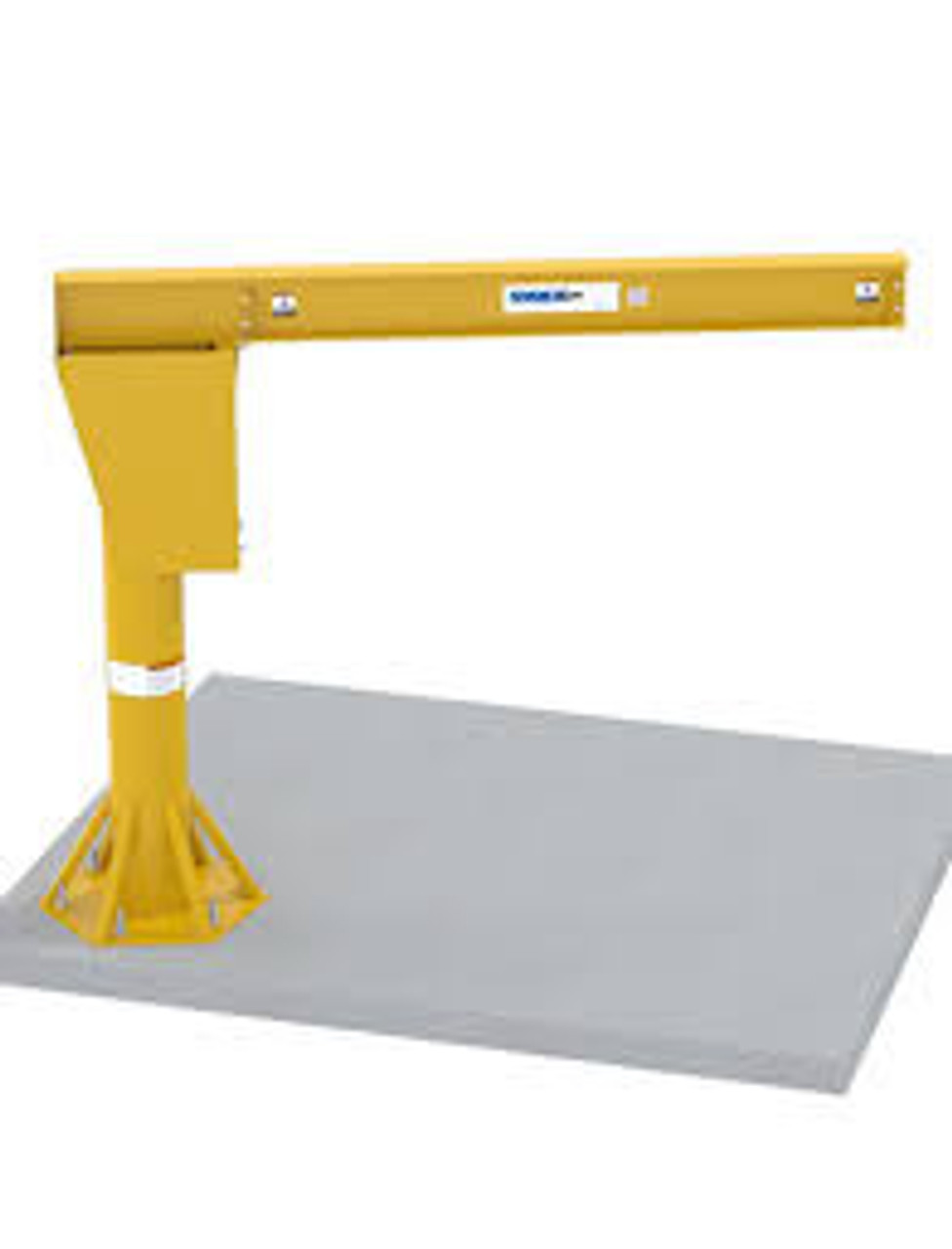

FOUNDATIONLESS JIB, BASE PLATE MOUNTED 600 SERIES 1000 LBS (INDOOR) Capacity: 1000 lbs , Span: 16' - 0'' , Clear Span: 14' - 6'' , Height Under Boom: 10' - 0'', Total Height: 10' - 10'' , 600-12W10-1610 SPANCO

Product Overview

• Capacity: With a remarkable lifting capacity of 1000 lbs, this jib provides steadfast support for various lifting tasks, ensuring seamless operations in indoor environments.

• Span: Spanning an impressive 16 feet, this jib offers extensive reach and coverage, allowing for versatile lifting operations across the designated workspace.

• Clear Span: Featuring a clear span of 14 feet 6 inches, this jib provides unobstructed space beneath the boom, facilitating efficient movement of materials and equipment without interference.

• Height Under Boom: The height under the boom, currently on hold, will be specified to ensure optimal clearance for lifting operations within the workspace, ensuring safety and efficiency.

• Beam Size: Constructed with a robust W10 x 30# beam, this jib guarantees structural integrity and durability under load, providing reliable support for lifting tasks of varying complexities.

• Flange Width: With a flange width of 5 3/4 inches, the beam offers ample surface area for secure attachment and distribution of loads, enhancing stability and safety during lifting operations.

• Mast Diameter: Featuring a substantial mast diameter of 12 inches, this jib offers exceptional support and stability, ensuring smooth and precise lifting operations without compromising safety.

• Total Height: Standing at an impressive total height of 10 feet 10 inches, this jib provides ample clearance for lifting operations while maintaining a compact footprint within the indoor workspace.

• Overturning Moment: Engineered to withstand external forces, this jib boasts an overturning moment of 180000 in-lbs, ensuring stability and reliability during lifting tasks.

• Anchor Bolt Load: The anchor bolt load is rated at 4400 lbs, ensuring secure attachment to the floor and preventing movement or displacement during operation, enhancing safety and stability.

• Coating & Painting: Finished with a durable coating of spray yellow paint, this jib not only enhances visibility but also provides corrosion resistance, ensuring longevity and durability in indoor environments.

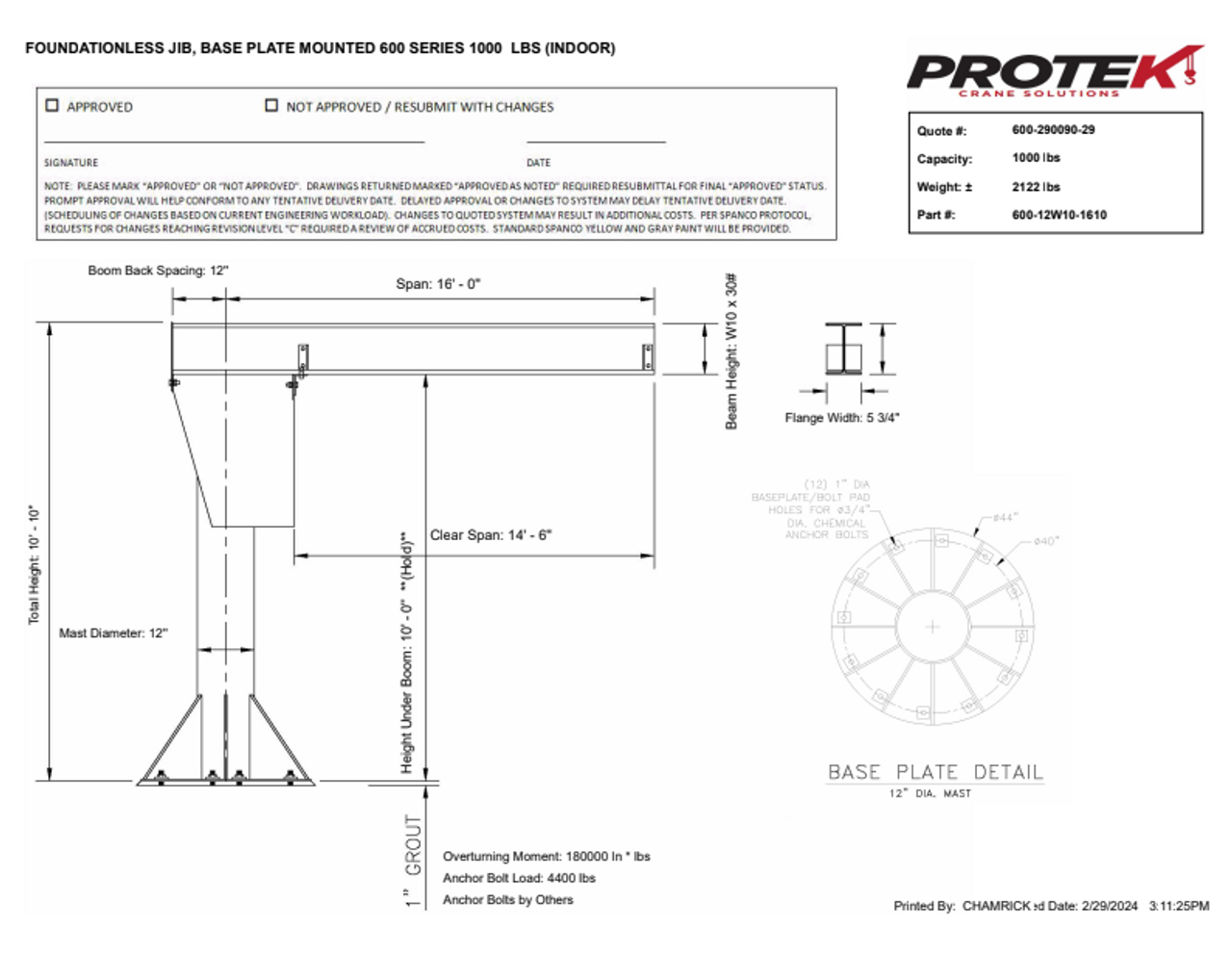

FOUNDATIONLESS JIB, BASE PLATE MOUNTED 600 SERIES 1000 LBS (INDOOR)
Capacity: 1000 lbs
Span: 16' - 0''
Clear Span: 14' - 6''
Height Under Boom: 10' - 0'' **(Hold)**
Beam Size: W10 x 30#
Flange Width: 5 3/4"
Mast Diameter: 12''
Total Height: 10' - 10''
Overturning Moment: 180000In * lbs
Anchor Bolt Load: 4400 lbs
Coating & Painting: PAINT, SPRAY YELLOW
