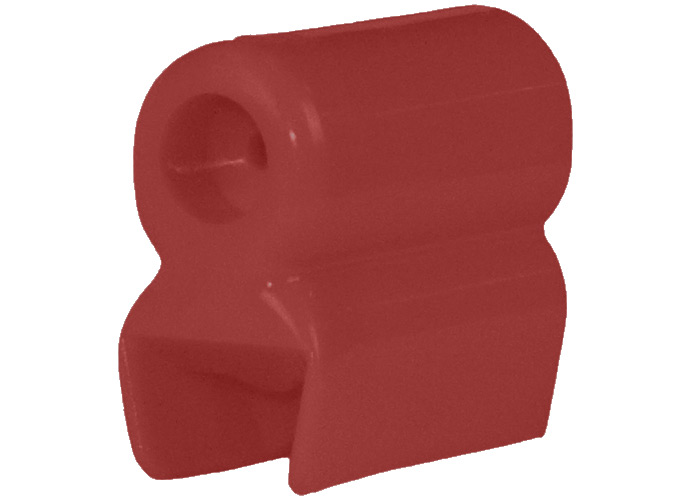

The XA-14118 8-Bar Left-Hand Transfer Cap is engineered to facilitate smooth lateral transitions of collector shoes between conductor bars in 8-Bar systems ranging from 40A to 350A. Molded from high-strength red Lexan, this transfer cap provides a non-conductive, impact-resistant path that helps maintain reliable electrical contact and minimizes wear on moving components. The left-hand orientation is specifically designed for systems where the collector travels in a defined direction requiring guided entry from the left side of the bar.
Key Features:
Left-Hand Orientation: Designed for guiding collectors onto the conductor bar from the left-hand side.
Wide Amperage Compatibility: Fits 40A, 90A, 110A, 250A, and 350A 8-Bar conductor systems.
Red Lexan Construction: Durable, non-conductive, and medium heat-resistant for safe indoor or covered applications.
Smooth Transition Path: Reduces collector shoe wear and ensures continuous power pickup during movement across joints.
Precision Fit: Maintains bar alignment and improves system reliability at transition points.
Technical Specifications:
Material: Red Lexan (polycarbonate, medium heat resistant)
Orientation: Left-hand
Bar Compatibility: 40A to 350A 8-Bar conductor bars
Function: Lateral transfer guide for collector shoes
Application: Indoor or protected conductor bar installations
Installation: Mounts to the left-hand side of the conductor bar transition zone
