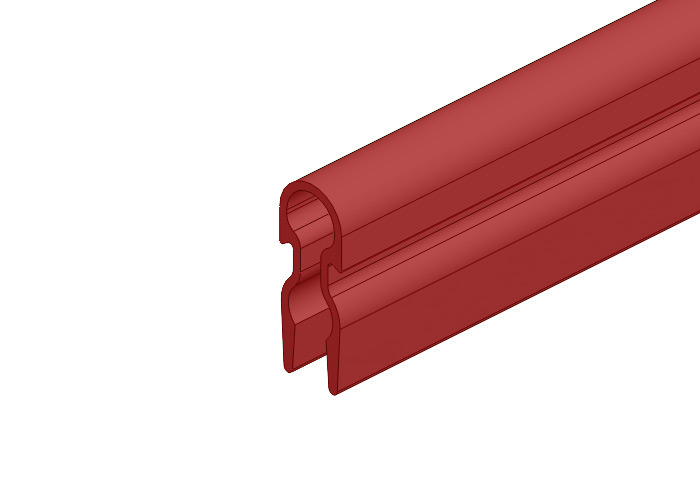

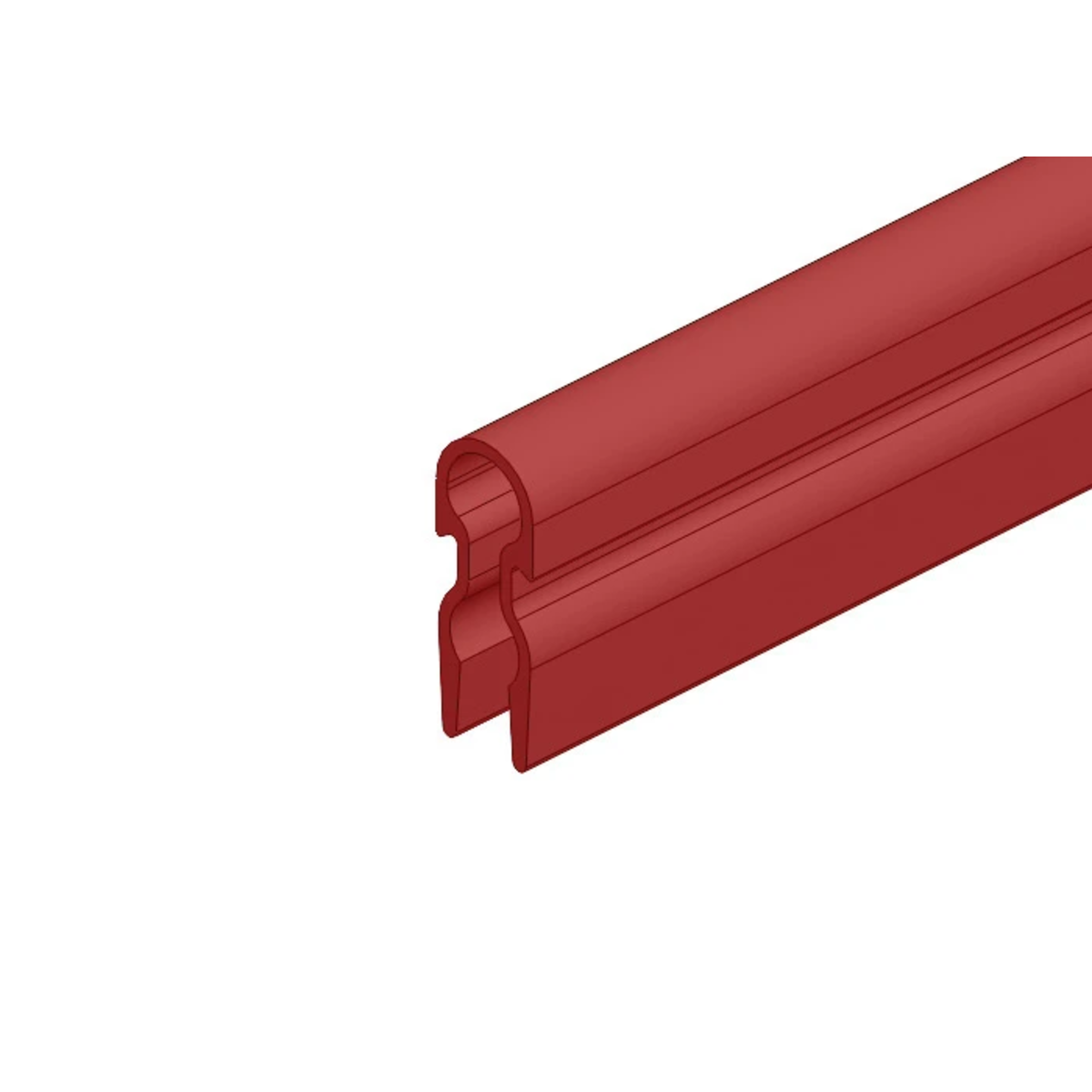

The XA-11115 8-Bar Conductor Bar Cover is built to provide thermal resistance and electrical insulation for conductor bars exposed to moderately elevated temperatures. Constructed from durable red polymer with a medium heat rating, this 9-foot long and 10.5-inch high cover offers full protection for 8-Bar systems. The red color assists in phase identification or thermal zone marking, while the material withstands environmental and mechanical stresses. It’s ideal for applications requiring added heat tolerance beyond standard PVC covers, without the need for high-heat materials.
Key Features:
Medium Heat Resistance: Suitable for applications with moderate ambient or process temperatures.
Red Color Coding: Enhances visibility and supports electrical phase identification.
Durable Polymer Construction: Provides reliable insulation, impact resistance, and extended service life.
9-Foot Length: Offers continuous coverage for standard 8-Bar conductor runs.
10.5-Inch Profile: Designed to fit standard conductor bar dimensions in mobile power systems.
Technical Specifications:
Material: Red medium heat-rated polymer (non-conductive)
Length: 9 feet (2.74 meters)
Height: 10.5 inches
Application: Insulation and thermal protection for 8-Bar conductor systems
Installation: Slides or clips securely onto conductor bars
