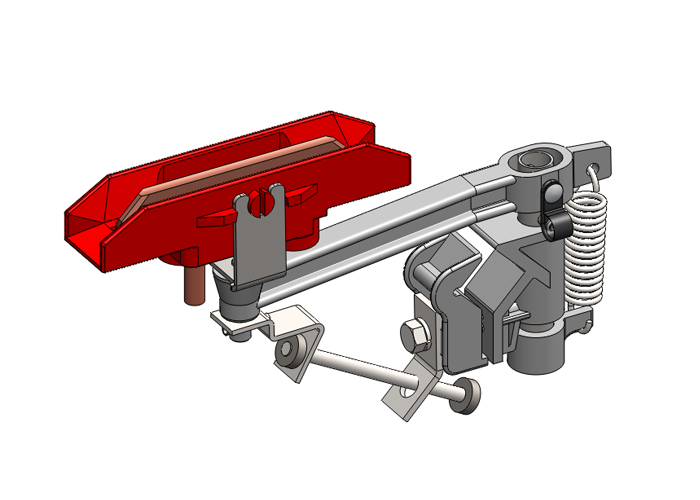

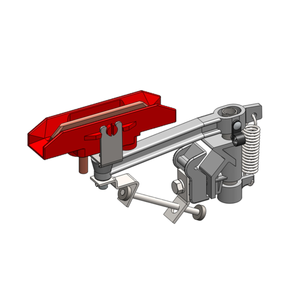

The XA-13630 8-Bar Collector is designed to handle 100A current in mobile electrification systems with stable and reliable power transfer. Featuring a single J-Head, it ensures consistent and efficient contact with the conductor bar, while the H-Base offers strong structural support for durability. The self-centering feature automatically aligns the collector, maintaining optimal contact with the conductor bar during operation, reducing wear and ensuring consistent power transfer. Ideal for applications such as cranes, hoists, and other mobile electrification systems, this collector offers minimal maintenance and dependable performance under demanding conditions.
Key Features:
100A Rating: Perfect for high-power applications in mobile electrification systems.
Single J-Head: Provides stable and reliable contact with the conductor bar for efficient power collection.
H-Base Construction: Ensures strong, durable support for long-term operation.
Self-Centering Mechanism: Automatically aligns the collector for optimal contact with the conductor bar, reducing wear and improving performance.
Efficient Power Transfer: Designed to deliver consistent power with minimal maintenance in demanding environments.
Technical Specifications:
System Type: 8-Bar Conductor System
Current Rating: 100 Amps
Head Type: Single J-Head
Base Type: H-Base
Self-Centering: Yes
Application: Ideal for cranes, hoists, transfer carts, and other high-power mobile electrification systems
