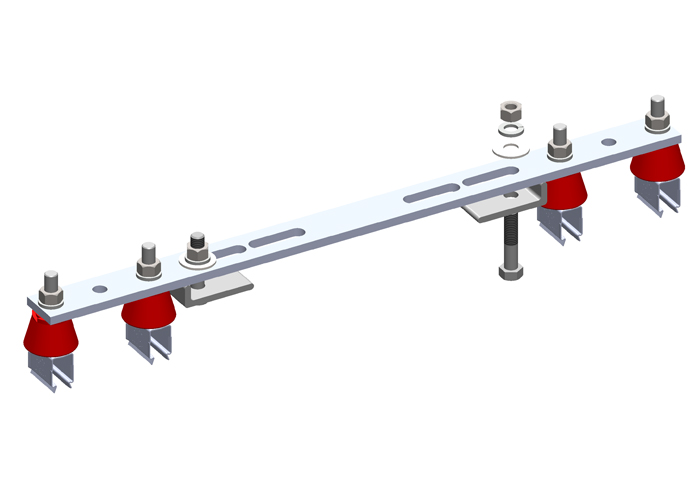

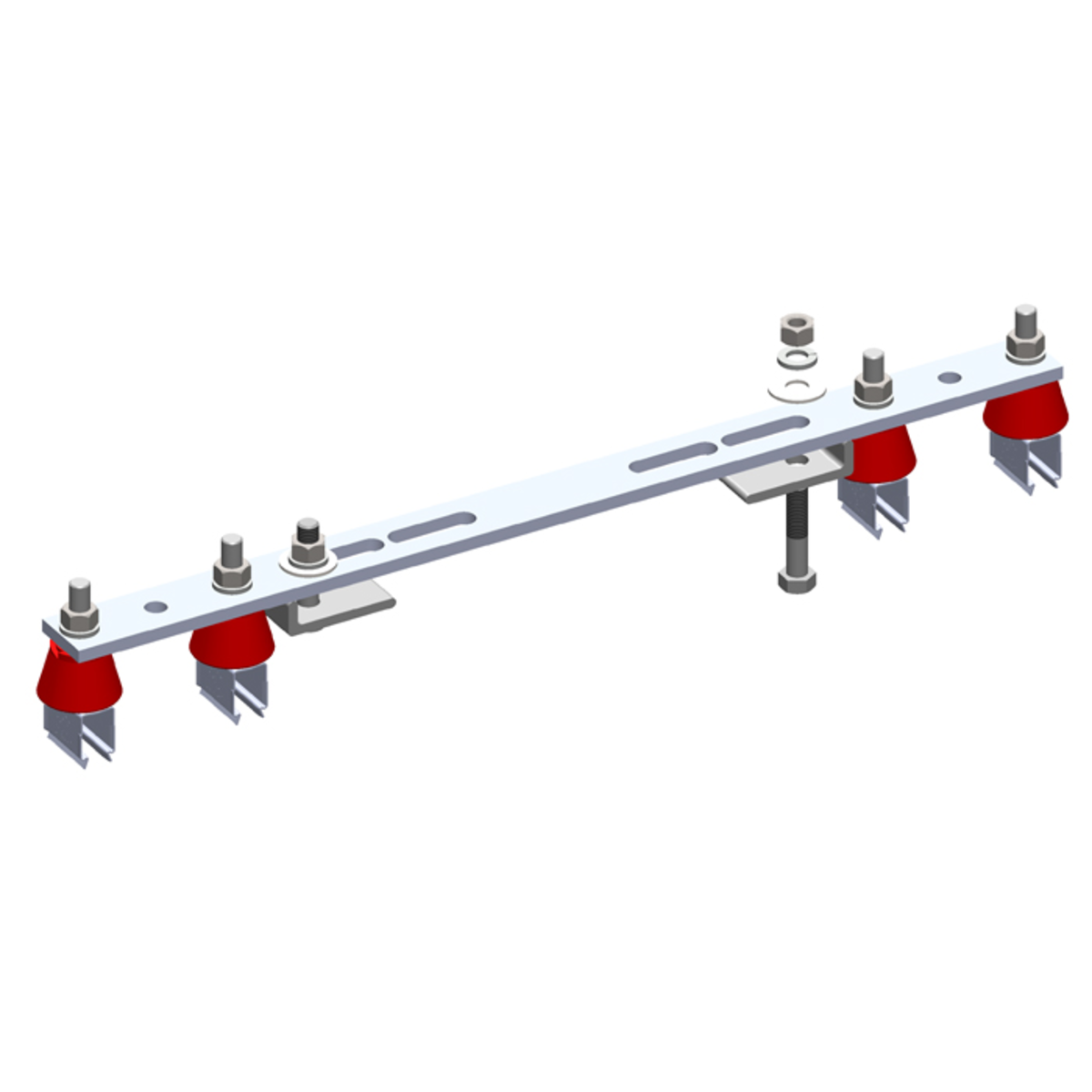

The XA-51867 Flange Bracket with Steel Snap-in Hanger Clamps and Integrated Insulators is designed to provide secure, electrically isolated mounting for 8-Bar conductor systems. With a length of 19 3/8 inches, this bracket includes two steel snap-in hanger clamps on each side, along with built-in insulators to prevent electrical contact and enhance safety.
Key Features:
Steel Snap-in Hanger Clamps (2/2 Configuration): The XA-51867 features four steel snap-in hanger clamps (two on each side), ensuring secure attachment for 8-Bar conductor systems. The snap-in design allows for tool-free installation, making it quick and easy to install.
Integrated Insulators: Built-in insulators provide electrical isolation between the conductor system and the mounting surface, preventing electrical shorts and enhancing system safety.
Durable Steel Construction: The steel hanger clamps are made from high-quality, durable material, ensuring long-lasting performance and resistance to wear.
19 3/8-Inch Length: The 19 3/8-inch length provides stable support for the conductor system, ensuring proper alignment over moderate spans.
Corrosion Resistance: The steel construction is designed to resist corrosion and environmental damage, ensuring reliable performance in demanding conditions.
Tool-Free Installation: The snap-in hanger clamps allow for quick and hassle-free installation, eliminating the need for additional tools or hardware.
Technical Specifications:
Material: High-quality steel (snap-in clamps with integrated insulators)
Length: 19 3/8 inches (492 mm)
Hanger Clamp Configuration: 2/2 (two clamps on each side)
Insulators: Built-in insulators for electrical isolation
Corrosion Resistance: Steel construction for resistance to moisture, dust, and corrosion
Installation: Tool-free snap-in installation for quick and easy setup
Dimensions: Custom fit for 8-Bar conductor systems
