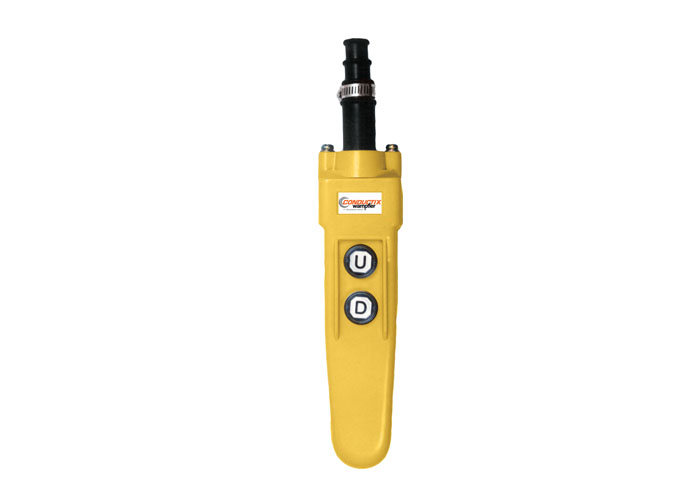

The XA_34211, part of Conductix_Wampfler’s 60_Series pistol-grip pendant lineup, is engineered for reliable, single-axis control in industrial settings. Its design includes:
2 _ single-speed maintained switches, providing on/off toggle control (e.g., hoist up/down)
Ergonomic pistol-grip housing made from high-impact yellow ABS with a sealed NEMA_4X/IP65 rating, UL/cUL-listed for indoor applications
Weight: Approximately 0.58_lb (0.26_kg)— compact and easy to handle
Cable options: Compatible with multi-diameter cable bushing (internal/external strain relief); pendant may be pre-wired if ordered with Conductix cable
Assembly services: Conductix_Wampfler offers pre-assembly and optional pre-wiring, which require ordering a pendant cable and providing wiring diagrams
Compact yet rugged, this pendant is ideal for one-handed control of material-handling equipment such as cranes, hoists, and monorails.
Key Features & Specifications
Feature Specification
Switches 2 _ single-speed maintained
Housing Yellow ABS pistol-grip; UL/cUL-listed; sealed NEMA_4X/IP65
Cable Strain Relief Multi-diameter bushing (internal/external compatible)
Weight Approx. 0.58 lb (0.26 kg)
Assembly Options Factory-assembled; pre-assembly & pre-wiring available
