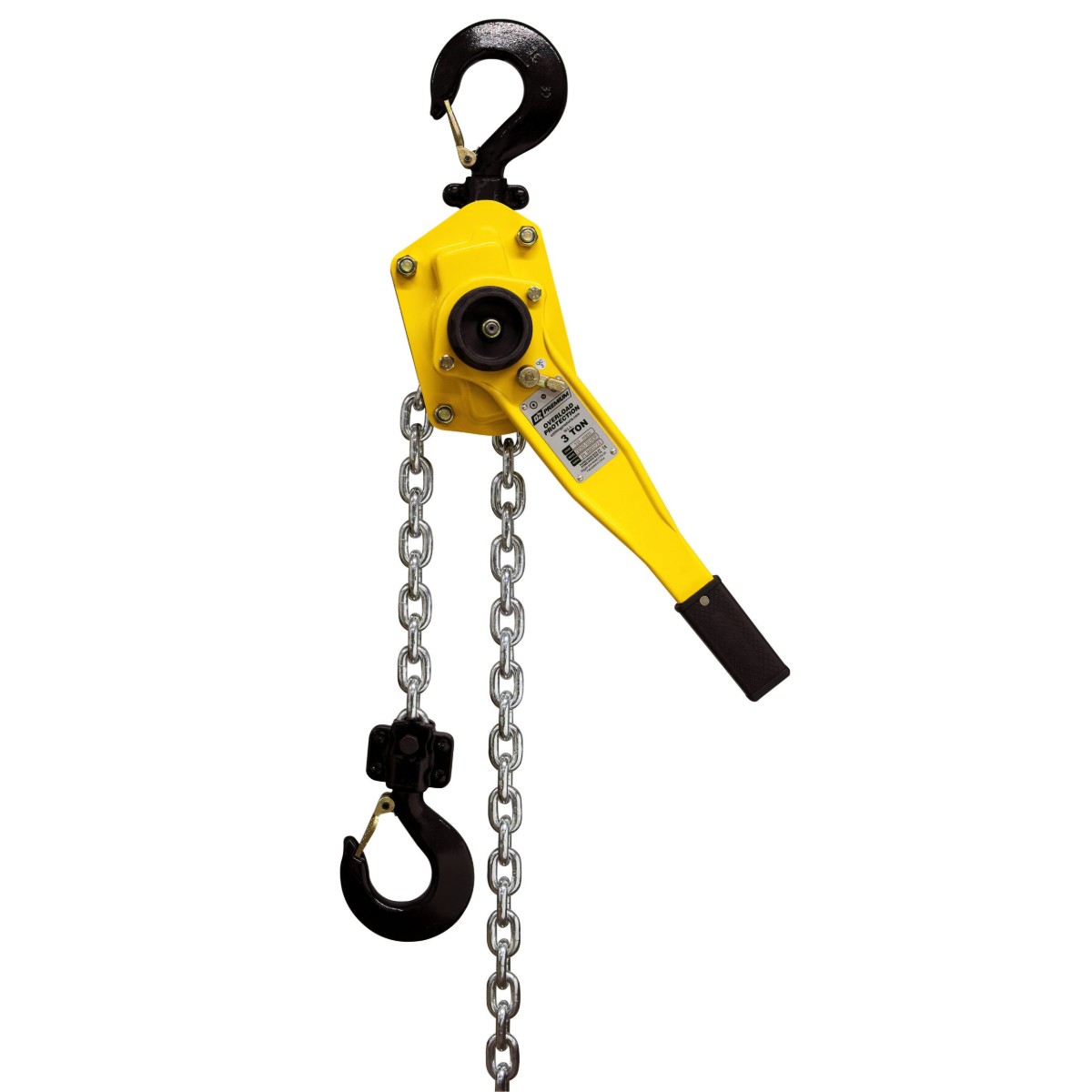

The OZ Lifting Products OZ300-10LHOP Premium Lever Hoist delivers dependable lifting performance with a 3-ton (6,000 lbs) capacity and Standard Overload Protection (SOP) set around 150% of the rated load. Engineered for both lifting and pulling, it provides smooth operation with quick chain adjustment, minimal effort, and a 360° rotating handle for use in confined areas. With a Weston-style brake system, sealed gearing, and a zinc-plated chain, this hoist is designed for maximum reliability and long service life in demanding environments.

Product Description

The OZ300-10LHOP Premium Lever Hoist is a rugged, precision-engineered lifting solution designed to meet the toughest industrial and construction demands. Offering a 3-ton (6,000 lbs) lifting capacity and 10 feet of lift height, it provides exceptional versatility for applications ranging from load positioning and pulling to lifting and tensioning.

Built with Standard Overload Protection (SOP), this hoist safeguards operators and equipment by automatically engaging when loads exceed approximately 150% of the rated capacity. This feature ensures operational safety and extends the product’s working lifespan. The Weston-style brake system provides reliable load control and holding power, maintaining safety even during incremental lifts or when operating under variable conditions.

The 360° rotating handle design sets this hoist apart, allowing operators to maneuver easily in confined or awkward spaces. It supports full-range motion for efficient operation from any angle, reducing fatigue and improving productivity. Additionally, the quick chain adjustment mechanism makes it easy to take up slack or release tension quickly, which is ideal for fast-paced job sites.

Constructed from high-strength alloy steel and finished with a corrosion-resistant coating, the OZ300-10LHOP is made to endure harsh working environments. Its zinc-plated alloy chain resists rust and wear, while the sealed internal gearing protects against dirt and debris—reducing maintenance needs and ensuring smooth operation over time.

This lever hoist is a trusted choice across industries such as manufacturing, construction, utilities, and shipyards. Whether you’re securing equipment, pulling machinery into position, or performing overhead lifts, the OZ300-10LHOP delivers consistent, safe, and efficient results.

Specifications

• Model: OZ300-10LHOP

• Type: Premium Lever Hoist with Standard Overload Protection

• Rated Capacity: 3 Ton (6,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory set at ~150% of rated load

• Handle Rotation: 360° for full-range operation in tight spaces

• Brake System: Weston-style mechanical brake for controlled lifting and lowering

• Chain Material: Zinc-plated, high-tensile alloy steel

• Chain Adjustment: Quick slack take-up and release mechanism

• Gearing: Fully sealed, dust- and moisture-resistant

• Load Hook: Forged alloy steel with heavy-duty safety latch

• Operation: Suitable for lifting, pulling, and tensioning

• Construction: Heavy-duty alloy steel housing

• Finish: Corrosion-resistant industrial coating

• Compliance: Meets or exceeds ASME B30.21 and OSHA standards

• Typical Applications: Construction, rigging, utilities, shipyards, maintenance, and heavy manufacturing

Key Features

• 3-ton (6,000 lbs) rated capacity with 10 ft lift

• Standard Overload Protection (SOP) at ~150% of rated capacity for safety

• 360° rotating handle for convenient use in restricted areas

• Weston-style brake system ensures dependable load control

• Zinc-plated alloy chain for durability and corrosion resistance

• Quick chain adjustment for fast and efficient operation

• Sealed gearing protects components and extends service life

• Heavy-duty steel construction withstands demanding environments

• Complies with ASME and OSHA standards for safe professional use
