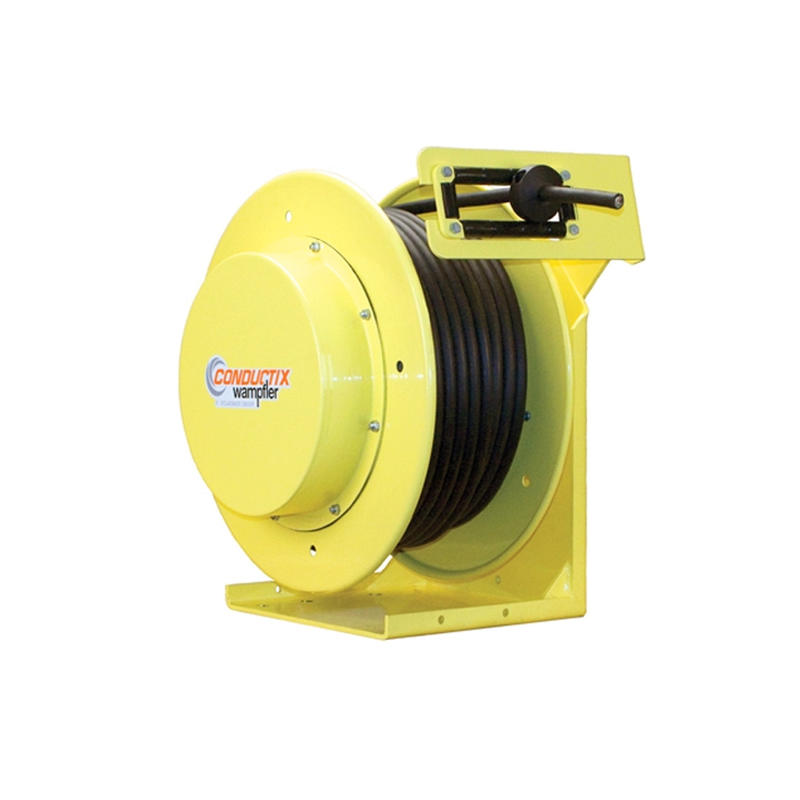

The XA_192141604011 PowerReel® is part of Conductix_Wampfler’s robust 1900_Series—a premium industrial spring-retractable cable reel designed for heavy-duty lift-and-drag applications. It comes factory-loaded with 40_ft (~12_m) of 14_AWG, 16_conductor SOOW cable wrapped on a rugged 19_ diameter steel drum, offering greater capacity than smaller series
Constructed with a sealed spring-return mechanism, this reel delivers smooth and maintenance-free cable retraction. The integrated ratchet-lock feature secures cable extension for stable and safe usage. Its powder-coated steel housing meets NEMA_4 protection standards and is cULus listed, making it ideal for both indoor and outdoor industrial environments—such as crane systems, vehicle workstations, and manufacturing facilities
With a weight of approximately 164.22_lb (74.5_kg), it is optimized for fixed installations (ceiling, wall, overhead beam). The reel can carry between 6.5–150_A at 250–600_V, supporting various heavy-duty equipment. Optional features like a ReelSafe brake, junction box, and various mounting accessories are available to enhance safety and customization
Key Features
Feature Details
Part No. XA_192141604011
Series 1900_Series PowerReel®
Cable 40_ft of 14_AWG, 16_conductor SOOW (lift-and-drag)
Drum Size 19_ heavy-duty steel reel
Retraction Sealed spring-return (maintenance-free)
Locking Ratchet-style for secure cable positioning
Voltage/Amp Range Supports 250–600_V, 6.5–150_A
Housing Powder-coated steel, NEMA_4 rated, cULus certified
Weight ~164.22_lb (≈74.5_kg)
Mounting Fixed—ceiling, wall, overhead beam, or vehicle installation
Optional Add-ons ReelSafe brake, junction box, pivot base, spool lock, guide rails
