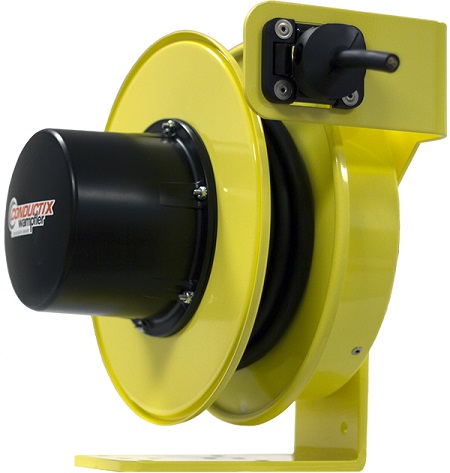

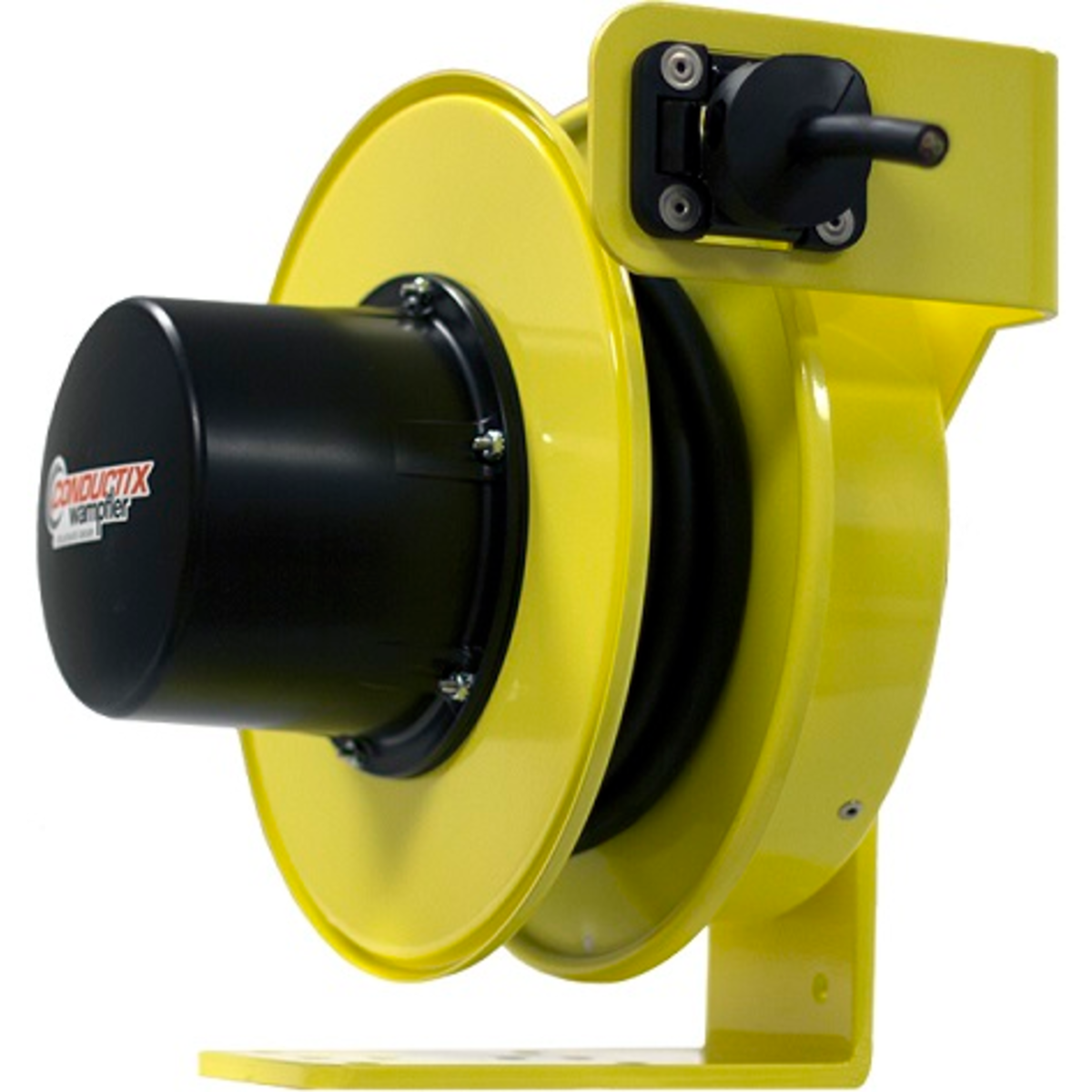

The 1400 Series PowerReel® – Stretch model XA_142160603021 is a industrial-grade, spring-driven cable reel built for continuous tension payout (“stretch”) applications. Pre-installed with a 16_AWG, 6_conductor Type SOOW cable rated at 600_V, it offers a full 30_ft actual payout length. This reel is engineered to withstand demanding environments, featuring powder-coated steel housing, NEMA_4 weather protection, and an enclosed, UL/CSA-listed slip-ring assembly.
Key Features
Factory-Installed 6_Conductor Cable
Equipped with 30_ft of 16_AWG, 6_conductor Type SOOW cable. Fully installed and tested during manufacture to ensure exact length and performance integrity .
Rugged Steel Housing
Robust all-steel, powder-coated safety-yellow enclosure with multiple provisions for mounting and industrial deployment
Adjustable 4_Roller Guide Arm
Multi-position roller guide arm ensures smooth cable payout/retraction and minimizes wear on the cable.
Spring-Driven Retraction with Field-Disengageable Ratchet
Internal spring ensures consistent retraction; ratchet can be disabled in the field for continuous stretch tension control .
Enclosed NEMA_4 Slip-Ring Assembly
Durable, weather_proof slip-ring rated at 600_V, UL/CSA listed, and equipped with a grounded first ring for enhanced safety
Industrial-Grade Durability
Designed for longevity, low maintenance, and reliable performance across harsh indoor/outdoor industrial settings .
