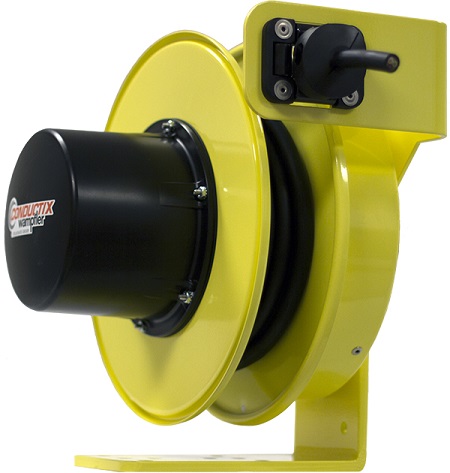

The XA-142100304021 is a spring-driven, stretch-type cable reel designed for demanding industrial cable management. It features:
Cable Specifications: Approximately 36 feet of 10 AWG, 3-conductor SOOW cable (0.69" O.D., 0.283 lbs/ft).
Enclosure: Rugged NEMA 4-rated, powder-coated steel housing in safety yellow, providing protection against dust and water ingress.
Slip Ring Assembly: Includes a 600 V enclosed slip ring assembly for reliable electrical connectivity.
Mounting: Suitable for overhead mounting in industrial environments.
Guide Arm: Adjustable multi-position guide arm with smooth 4-roller guide to reduce cable wear.
Key Features
Durable steel frame with corrosion-resistant yellow powder coating for visibility and longevity.
Precision spring-driven mechanism housed in a sealed canister ensures smooth cable retraction and extension.
Ratchet lock allows cable payout control; ratchet can be disengaged for stretch applications.
Adjustable guide arm with 12 positions to direct cable payout and reduce cable stress.
Operates reliably in temperatures from -22°F to 194°F (-30°C to 90°C).
