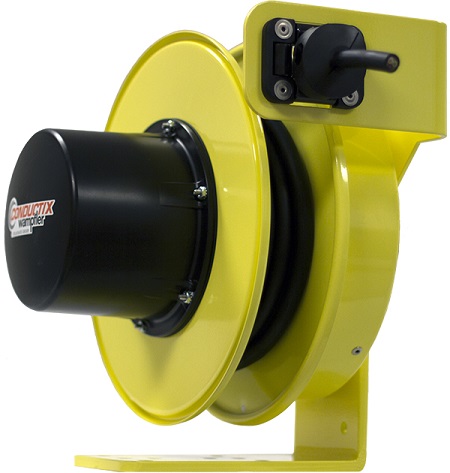

1400 Series PowerReel® - Stretch, 10AWG / 3 Conductors 30FT Length Conductix XA-142100303021

The XA-142100303021 is a spring-driven, stretch-type cable reel designed for industrial applications requiring flexible cable management. It features: Cable Specifications: Approximately 27 feet of 10 AWG, 3-conductor SOOW cable (0.69" O.D., 0.283 lbs/ft). Enclosure: NEMA-4 rated, powder-coated steel housing in safety yellow, providing protection against dust and water ingress. Slip Ring Assembly: 600V enclosed slip ring assembly, ensuring reliable electrical connections. Mounting: Designed for overhead mounting, suitable for various industrial setups. Guide Arm: Equipped with an adjustable multi-position guide arm to direct the cable where needed. Key Features Durable Construction: Built with a rugged steel frame and finished with a yellow powder-coated surface for enhanced visibility and corrosion resistance. Spring-Driven Mechanism: Features a precision-built main spring housed in a safety-sealed canister, ensuring smooth retraction and extension of the cable. Ratchet Mechanism: Includes a ratchet lock to maintain the desired cable extension until released by a pull on the cable. The ratchet can be disabled for constant tension ("stretch") applications. Adjustable Guide Arm: The guide arm has 12 possible positions and includes a smooth-running 4-roller guide to minimize cable stress. Operating Temperature Range: Suitable for environments with temperatures ranging from -22°F to 194°F (-30°C to 90°C).
