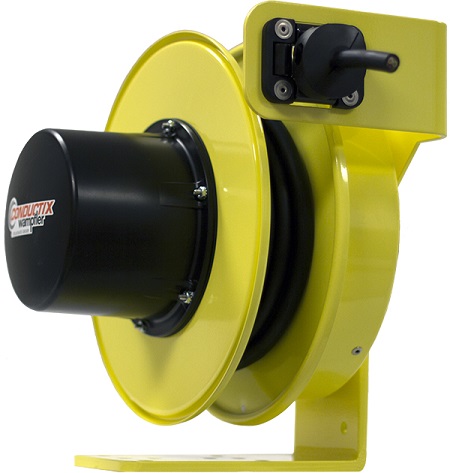

The XA_142160603031 is a spring-driven 1400_Series PowerReel® designed for retrieve applications—automatically retracting cable as equipment returns to its power source. This model comes with 30_ft of factory-installed 16_AWG, 6_conductor SOOW cable (0.565_ O.D., 0.177_lb/ft). The ratchet mechanism is included but configured for retrieve operation (ratchet can be disengaged in the field if continuous stretch is needed)
The reel’s housing is made of powder-coated steel, rated NEMA_4, and includes a 600_V enclosed slip-ring assembly. It is UL/CSA-listed and weighs approximately 67_lb
Key Features
30_ft of 16_AWG / 6_Conductor SOOW Cable – Factory-installed, precision-tested for reliability
Retrieve-Mode Spring Retraction – Ratchet kit included but locked out for automatic cable retrieval; field-disengageable for continuous payout
Durable Powder-Coated Steel Enclosure (NEMA_4) – Designed for industrial and outdoor environments
600_V Enclosed Slip-Ring Assembly – UL/CSA-listed, moisture-resistant
Rugged, Low-Maintenance Design – Weighs ~67_lb, built for high-cycle usage with minimal upkeep
