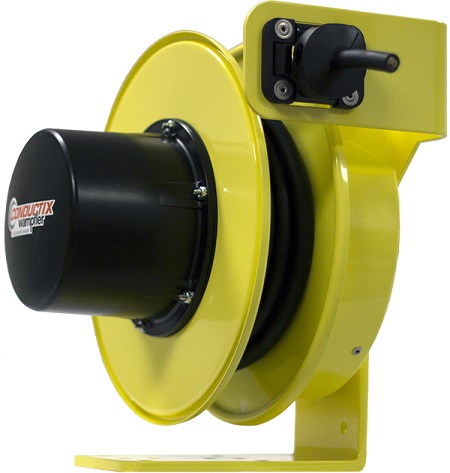

The XA_142140403031 is a spring-driven 1400 Series PowerReel®, purpose-built for retrieve applications. It is preloaded with 30_ft of 14_AWG, 4_conductor Type SOOW cable, offering reliable power or signal transmission for industrial machinery that returns to a home position.
This reel features a durable NEMA_4-rated powder-coated steel enclosure, suitable for both indoor and outdoor environments. Inside, a 600_V enclosed slip-ring assembly ensures consistent and safe electrical connectivity. A ratchet mechanism is included and installed for retrieve operation, with the flexibility to be field-disengaged for other payout methods. The total unit weight is approximately 50_lb.
Key Features
30_ft of 14_AWG / 4_Conductor SOOW Cable – Factory-installed and ready for industrial use
Retrieve-Mode Spring Retraction – Automatic cable rewind with field-removable ratchet mechanism
NEMA_4 Powder-Coated Steel Housing – Protects against moisture, dust, and impact
600_V Enclosed Slip-Ring Assembly – Sealed and UL/CSA-listed for continuous-duty operation
