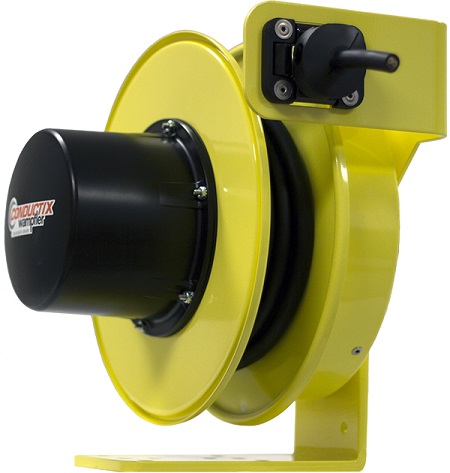

The XA-142160302011 belongs to the trusted 1400 Series PowerReel® line from Conductix-Wampfler, designed specifically for lift/drag applications where the cable must travel with a vertically or horizontally moving load. This model comes pre-installed with 20 feet of 16 AWG, 3-conductor SOOW-A cable, and includes a ball stop for precise cable payout control.
Its spring-driven mechanism allows for consistent cable retraction and long-term reliability, making it ideal for tools, hoists, and power supply systems. The rugged all-steel frame, thermoplastic slip ring enclosure, and sealed, maintenance-free spring motor ensure dependable performance in industrial environments.
The unit includes a 4-roller cable guide arm that adjusts for multiple mounting positions, reducing wear and extending cable life. With UL and CSA listings, a NEMA 4 rating, and compatibility with 600V cable, this reel is ready for demanding conditions.
Key Features
Series: 1400 Series Spring-Driven PowerReel®
Cable Included: 20 ft of 16 AWG / 3-conductor SOOW-A cable
Application: Lift/drag (vertical and horizontal cable travel)
Ball Stop: Included for controlled cable payout
Rewind Mechanism: Spring-driven with ratchet lock (lift/drag specific)
Cable Guide: 4-way adjustable roller guide arm
Enclosure: Black thermoplastic slip ring cover
Housing Material: Durable, corrosion-resistant all-steel frame
Electrical Rating: 600V cable, UL and CSA listed
Ingress Protection: Rated NEMA 4 for indoor/outdoor use
Mounting Options: Flexible orientation with guide arm adjustment
Finish: Industrial safety yellow for high visibility
Maintenance: Sealed spring motor for long-term, maintenance-free service
