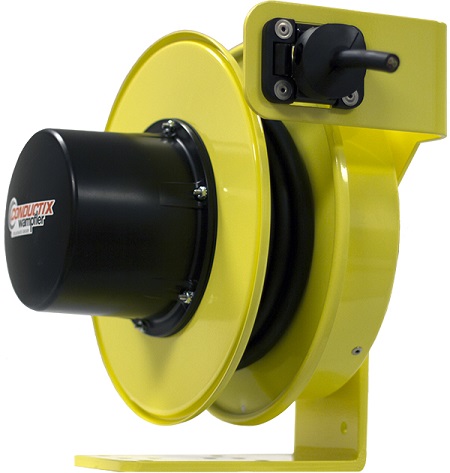

The XA_142161004011 is part of Conductix-Wampfler’s robust 1400_Series PowerReel®, designed for lift/drag applications—perfect for powering mobile equipment like hoists and tools. It comes pre-loaded with 40_ft of 16_AWG, 10-conductor SOOW cable (0.72__OD, 0.278_lb/ft) and includes an integrated ball stop to precisely control payout and prevent overextension .
This reel features a sealed spring-driven motor for smooth and maintenance-free cable retraction and a ratchet-lock mechanism that secures the cable at any extended length. Its adjustable 4_roller cable guide arm directs the cable efficiently, minimizes wear, and supports versatile mounting orientations. Constructed with a high-visibility steel frame, it is NEMA 4 rated, UL and CSA listed, and includes a 600_V grounded slip-ring assembly, making it ideal for rugged indoor or outdoor use .
Key Features
Pre-loaded with 40_ft of 16_AWG, 10_conductor SOOW cable (0.72__OD, 0.278_lb/ft)
Ball stop included for controlled payout and cable-end protection
Sealed spring-driven motor provides smooth, maintenance-free retraction
Ratchet-lock mechanism allows cable to lock at any position until manually released
Adjustable 4_roller cable guide arm supports flexible mounting and reduces wear
Heavy-duty steel frame in safety yellow ensures durability and visibility
NEMA 4 rated for protection against dust and water ingress
UL & CSA listed for safety and compliance
600_V grounded slip-ring assembly enables continuous power delivery
Weight: 67_lb
