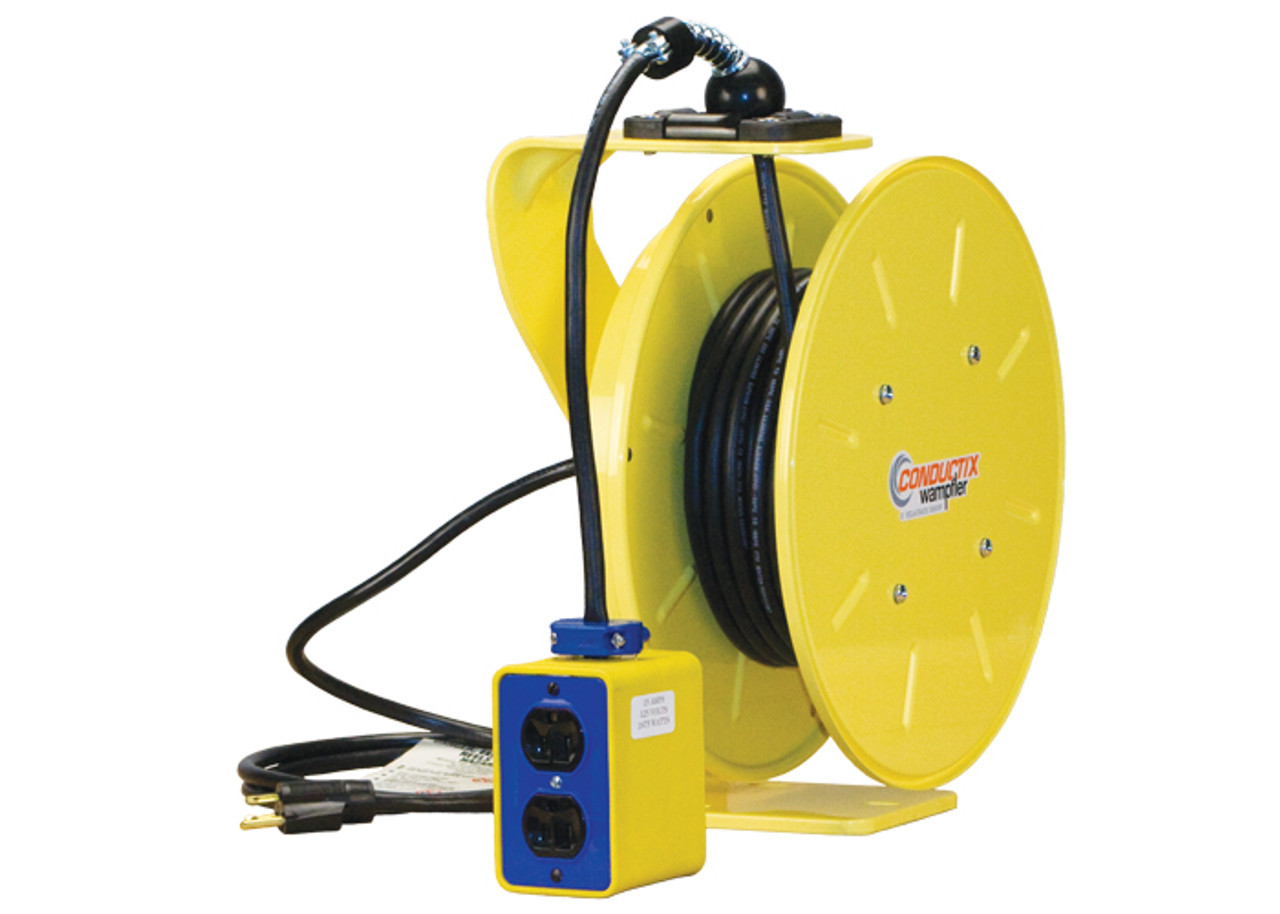

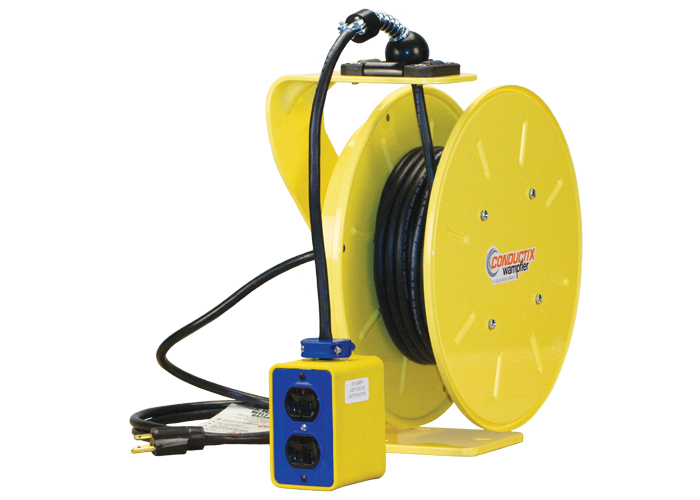

The XA_121120305017 1200 Series PowerReel® delivers industrial-grade, spring-driven cable management and power distribution in one robust package.
Rugged cable and reel housing: Pre-installed with 50_ft of 12_AWG/3_conductor Type_SJOW cable, factory-tested and ready for use. The reel’s sturdy steel frame is finished in safety-yellow powder coat for high visibility and durability in indoor environments.
GFI-protected receptacle box: A heavy-duty molded thermoplastic elastomer (TPE) box fastened to the reel provides dual 20_A/125_V duplex outlets (total of four). The TPE material resists oil and most chemicals, and features an internal cord grip for strain relief.
Safety & control features: Equipped with automatic spring retraction and a 125_V slip-ring assembly to ensure continuous power while managing cable length. The built-in ball stop and ratchet kit allow precise payout and secure cable positioning.
Feeder setup & compliance: Comes with a 6_ft feeder cord featuring a GFI-equipped plug. The reel is UL-listed, CSA-listed, and NEMA_2 rated for safe indoor operation.
Specifications:
Part No: XA_121120305017
Cable Length: 50_ft actual length
Weight: 44.44_lb
Cable Type: 12_AWG / 3C Type_SJOW
Outlet Configuration: Dual 20_A/125_V duplex (4 outlets total)
Enclosure Rating: GFI plug on feeder, NEMA_2 steel housing
Key Features:
Factory-installed GFI receptacle box with dual 20_A/125_V outlets (4 total) in oil-resistant yellow TPE
50_ft 12_AWG / 3-conductor Type_SJOW cable, pre-installed and tested
Spring-driven automatic retraction with 125_V slip-ring for consistent power during use
Ball stop & ratchet kit provide controlled payout and cable locking
6_ft feeder cord with GFI plug included
UL-listed & CSA-listed, NEMA_2 rated, designed for indoor industrial applications
Durable powder-coated steel housing for long-lasting performance and high visibility
