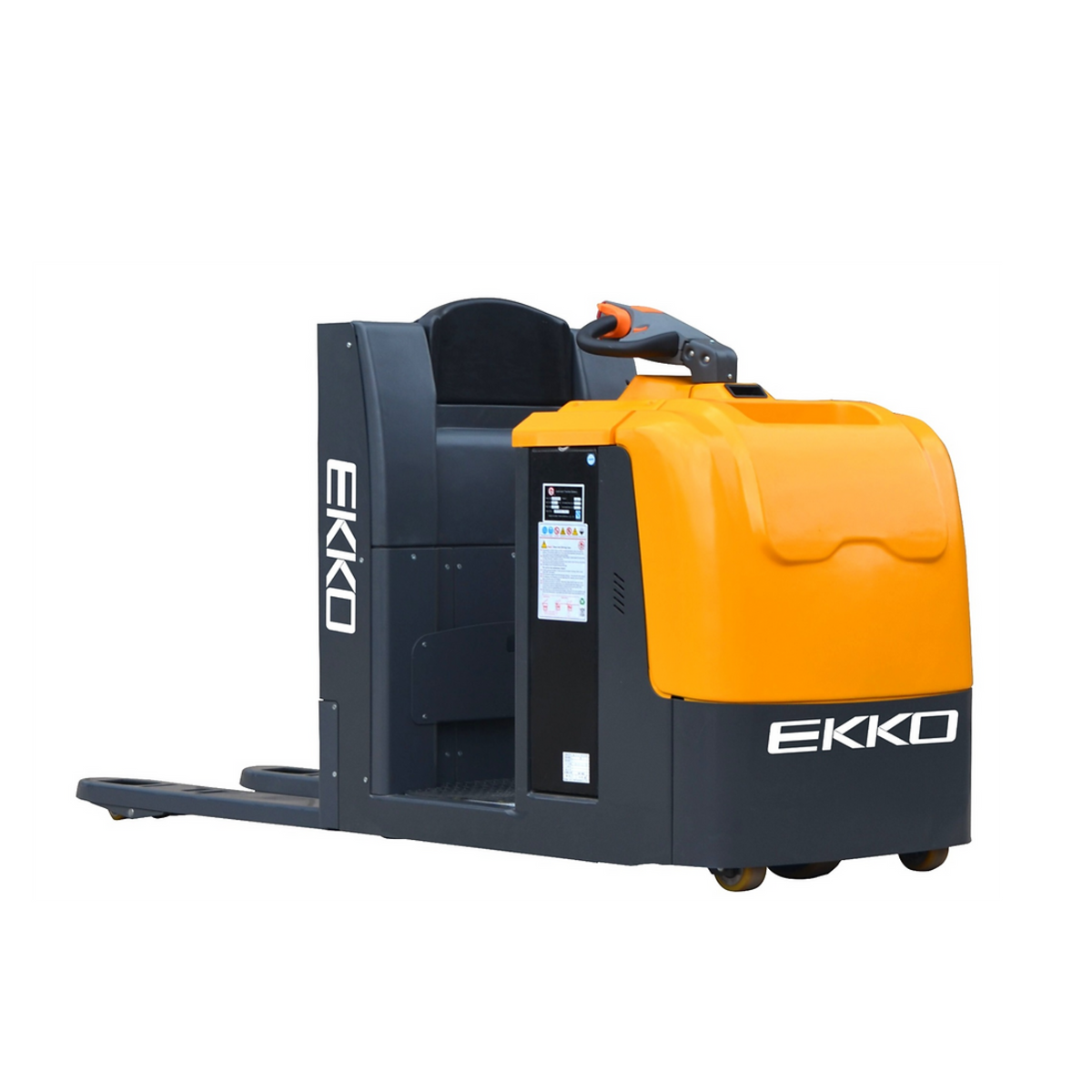

EKKO EPC30A 5,000 lb Center Rider Pallet Truck

Long runs across a large warehouse or dock go faster when the operator can ride, and the EKKO EPC30A center rider pallet truck is built to move full pallets over longer distances with less fatigue. Rated for a 5,000 lb load capacity and a 7.88-inch raised height, it slides under pallets with a 3.35-inch lowered fork height.

It comes with 45.3-inch forks (1.97 × 6.69 in cross-section), so it can be matched to the pallets and loads you handle most. The unit runs on a 1.5 drive motor, a 0.8 lift motor and ac controls for smooth, responsive operation. With an 89.68-inch turning radius, an overall width of 31.81 inches and electric power steering, it maneuvers easily in tight aisles and crowded work areas. An electromagnetic brake system adds control when stopping with a load. Steel construction keeps it working through daily use, and it is backed by EKKO's 3-year limited warranty on frame, forks, and mast.

Product Info:
• SKU: EPC30A
• Product Type: Center Rider Pallet Truck
• Load Capacity: 5,000 lb
• Operation: Stand on
• Load Center: 35.83 in
• Wheelbase: 81.89 in
• Tires: Polyurethane
• Raised Height: 7.88 in
• Overall Height: 42.91 in
• Lowered Height: 3.35 in
• Overall Length: 99.09 in
• Overall Width: 31.81 in
• Fork Size: 1.97 × 6.69 × 45.3 in (T × W × L)
• Fork Width: 26.97 in
• Turning Radius: 89.68 in
• Gradeability: 3/6 %
• Brake Type: Electromagnetic brake
• Drive Motor: 1.5
• Lift Motor: 0.8
• Steering: Electric Power Steering (EPS)
• Controller: Ac
• Service Weight: 2400 lb
• Warranty: 3-Year Limited (frame, forks, and mast)

For moving more pallets over longer distances every shift, the EKKO EPC30A is a productive, operator-friendly choice.
